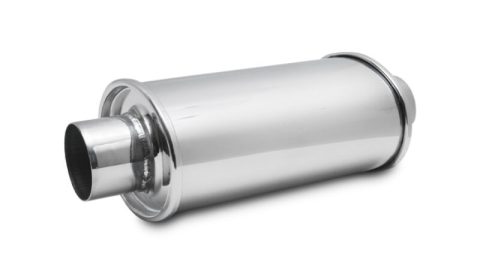

Resonator - Ultra Quiet - 2.5 in Center Inlet - 2.5 Center Outlet - 6.5 x 4.75 x 9.75 in Round Body - 13.75 in Long - Stainless - Polished - Each
Exhaust Resonator
Vibrant Performance ultra quiet resonators are oval bodied, densely packed with our premium multi-layered sound absorption materials, and manufactured from 304 stainless steel for optimum durability and corrosion resistance. Vibrant Performance ultra quiet resonators feature a larger sound chamber than our standard resonators to further reduce and tune exhaust tones. They are available in inlet / outlet I.D. dimensions ranging from 2.25" to 3".
Additional Information
Ultra Quiet Resonator; 2.5 in. Inlet/Outlet;
Application Summary
Universal
Part Type
Exhaust Resonator
Product Overview
* Vibrant's Ultra Quiet Resonator utilizes a larger sound absorption chamber for better sound suppression than typical bottle style resontors. * Feature Vibrant's "True Straight Through" perforated core, surrounded by our premium multi-layer sound absorption materials. * Originally designed to help eliminate the "rifling" noise that is common with most 6 cyl. and 8 cyl. vehicles equipped with straight through performance exhaust systems. * T304 Stainless Steel
Features and Benefits
- T304 Stainless Steel
- Densely packed with our premium multi-layer sound suppression materials that produce a very deep and distinctive exhaust note
- Made from 304 stainless steel for optimum corrosion resistance
- A true straight through design
- Designed To Dampen Exhaust Noise Without Restriction
- Features True Straight Through Perforated Core
- Surrounded By Our Premium Sound Absorption Materials
- 5 Year Limited Warranty
Product Details
| Body Height x Width (in): | 6.5x4.75 |
| Body Height: | 6.500 in. |
| Body Length (in): | 9.75 |
| Body Length: | 9.75 |
| Body Width: | 4.750 in. |
| Description: | Ultra Quiet Resonator |
| Height: | 4.75 |
| Inlet / Outlet I.D.: | 2.5 |
| Inlet ID (in): | 2.5 |
| Inlet ID (mm): | 63.5 |
| Inlet ID: | 2.5in |
| Inlet Inside Diameter: | 2.500 in. |
| Inlet/ Outlet Orientation: | Center-Center |
| Inlet/Outlet Orientation: | Center-Center |
| Material: | 304 Stainless Steel |
| Muffler Body Height x Width: | 6.5in x 4.75in |
| Muffler Shape: | Oval |
| Outer OD: | 2.5in |
| Outlet OD (in): | 2.5 |
| Outlet OD (mm): | 63.5 |
| Overall Length (in): | 13.75 |
| Overall Length: | 13.75 |
| Part Number: | vib1141 |
| Sale Segment: | Mufflers & Resonators |
| Shape: | Oval |
| Tip Length (in): | 4 |
| Tip Length: | 4in |
| Tip Shape: | Round |
| Tip Style: | Straight Cut, Single Wall |
| Tip: | Single/ Dual: Single |
| Tip: Single/Dual: | Single |
| Web Category: | Mufflers and Resonators |
| Width: | 6.5 |
Product Downloads
| # | Document Type | Download |
| 1. | Catalog |  |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
