Weld Racing RT-S S77 Forged Aluminum Black Beadlock Wheels for Mickey Thompson Tires 15x10.33 Wheel, S77, Aluminum, Matte Black, 15 in. x 10.33 in., 5 x 4.75 in. Bolt Circle, 7.50 in. Back Space
Weld Racing RT-S S77 Forged Aluminum Black Beadlock Wheels for Mickey Thompson Tires 15x10.33 Wheel, S77, Aluminum, Matte Black, 15 in. x 10.33 in., 5 x 4.75 in. Bolt Circle, 7.50 in. Back Space
A$3,339.50
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Data: v2 - Desc: v4.2 - Upd: 2026-11-08 08:50:09
Features
Note in regards to wheels and tyres.
Unless otherwise stated, wheels and tyres are supplied individually. They are not typically listed as a full set since most vehicles run different widths and offsets front to rear. Please carefully check your PCD, width and offset (ET) when choosing wheels or wheel and tyre packages. If you need more information or clarification, contact StreetFX customer support prior to ordering.
(keyword: wheel)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Weld, Weld Performance, Weld Racing |
| StreetFX SKU | wel77LB-510B75F |
| SFX Item ID | 4588078 |
| Accounting SKU | wel-77LB-510B75F |
| Manufacturer SKU | 77LB-510B75F |
| Manufacturer UPC | 190300427123 |
| Alternative References | WLD-77LB510B75F |
Wheel, RT-S S77, Aluminum, Matte Black, 15 in. x 10.33 in., 5 x 4.75 in. Bolt Circle, 7.50 in. Back Space

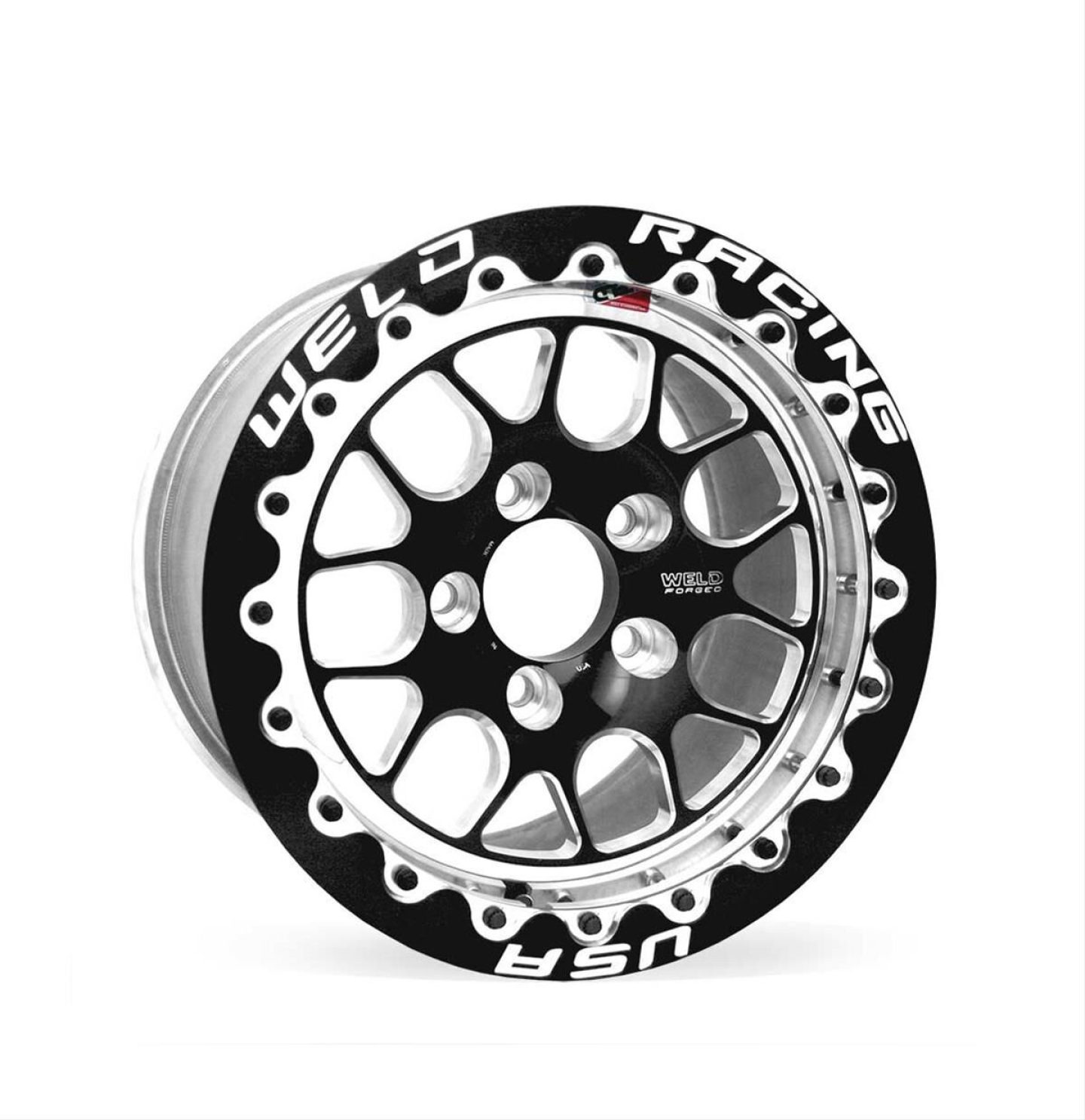

Weld Racing has fitments for popular modern musclecars, each created uniquely for each car to maximize their stance, including these RT-S S77 forged aluminum black beadlock wheels. These wheels use a smaller beadlock designed for use with Mickey Thompson tires. Built from 3-piece modular construction, the RT-S S77 Series wheels feature a unique, multi-spoke design. They continue the Weld Racing tradition of utilizing a forged billet center and cold-forged rim shells for proven strength and durability. These unique wheels offer three mounting pad heights to clear specific drum and multi-piston opposed calipers. Matching center caps are also included.
| Product Attributes | |
|---|---|
| Brand | Weld Racing |
| Manufacturer's Part Number | 77LB-510B75F |
| Part Type | Wheels |
| Product Line | Weld Racing RT-S S77 Forged Aluminum Black Beadlock Wheels for Mickey Thompson Tires |
| UPC | 190300427123 |
| Wheel Diameter | 15 in. |
| Wheel Width (in.) | 10.33 |
| Wheel Size | 15x10.33 |
| Wheel Bolt Pattern (application) | 5 x 120.65mm 5 x 4 3/4 in. |
| Wheel Material | Forged aluminum |
| Designed for Dually Truck | No |
| Manufacturers Wheel Series | Weld Racing RT-S S77 Series |
| Backspacing (in.) | 7.50 |
| Offset | +47.00mm |
| Wheel Construction | 3-piece |
| TPMS Sensor Compatible | Yes |
| Beadlock Type | Single |
| Beadlock Color | Black |
| Lug Nut/Bolt Seat Style | Shank |
| Lug Nut Shank Length (in.) | 0.55 |
| Lug Nut Shank Diameter (in.) | 0.69 |
| Hub Centric Ring Compatible | No |
| Center Bore Diameter (in.) | 3.18 |
| Center Bore Diameter (mm) | 80.77 |
| Center Cap Included | Yes |
| Load Rating (lbs.) | 1,580 lbs. |
| Lug Nuts Included | No |
| Small Diameter Lug Nuts Required | No |
| Valve Stems Included | Yes |
| Valve Stem Material | Steel |
| Valve Stem Finish | Chrome |
| Quantity | Sold individually. |
| Notes | Low pad design. Black beadlock ring. |
