Description

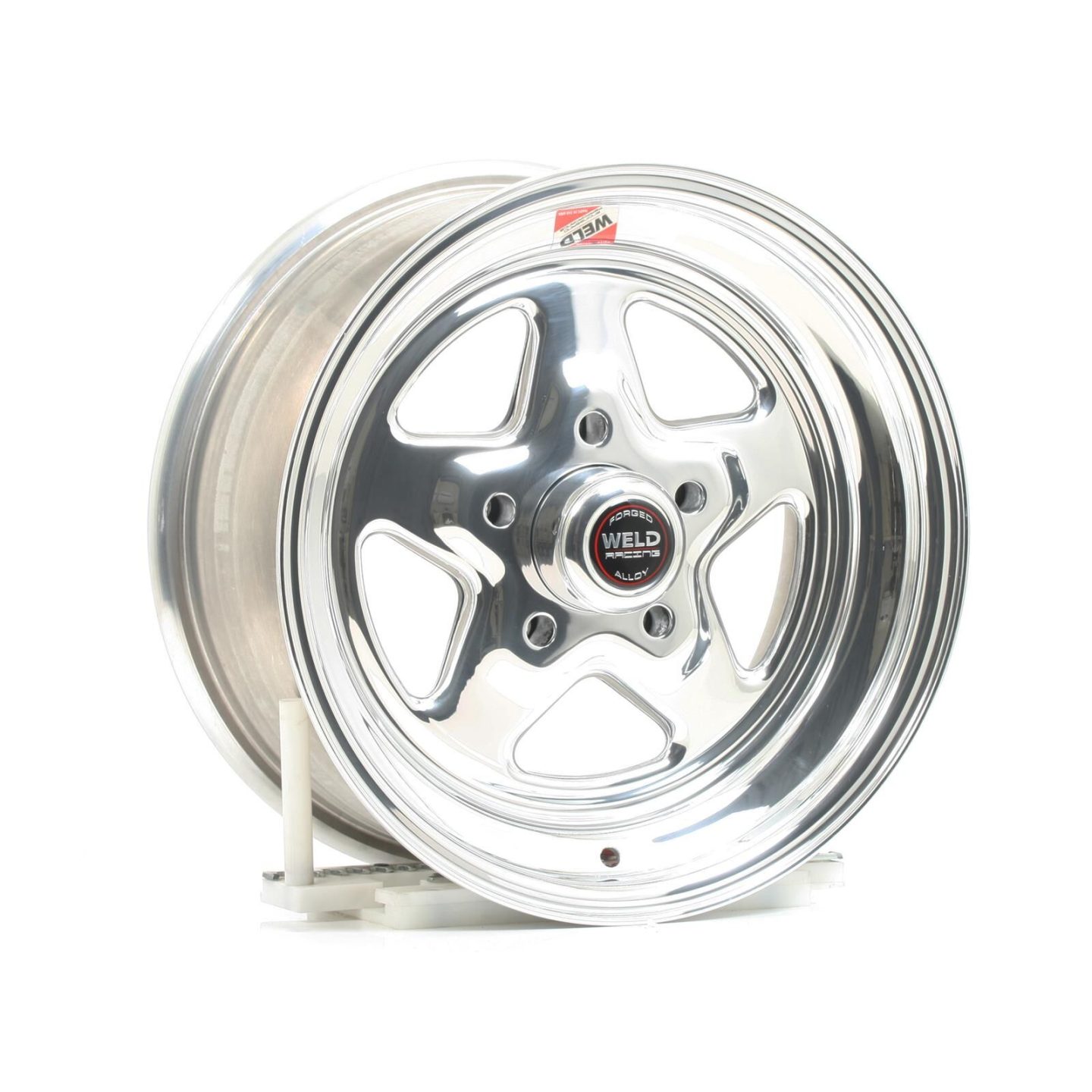

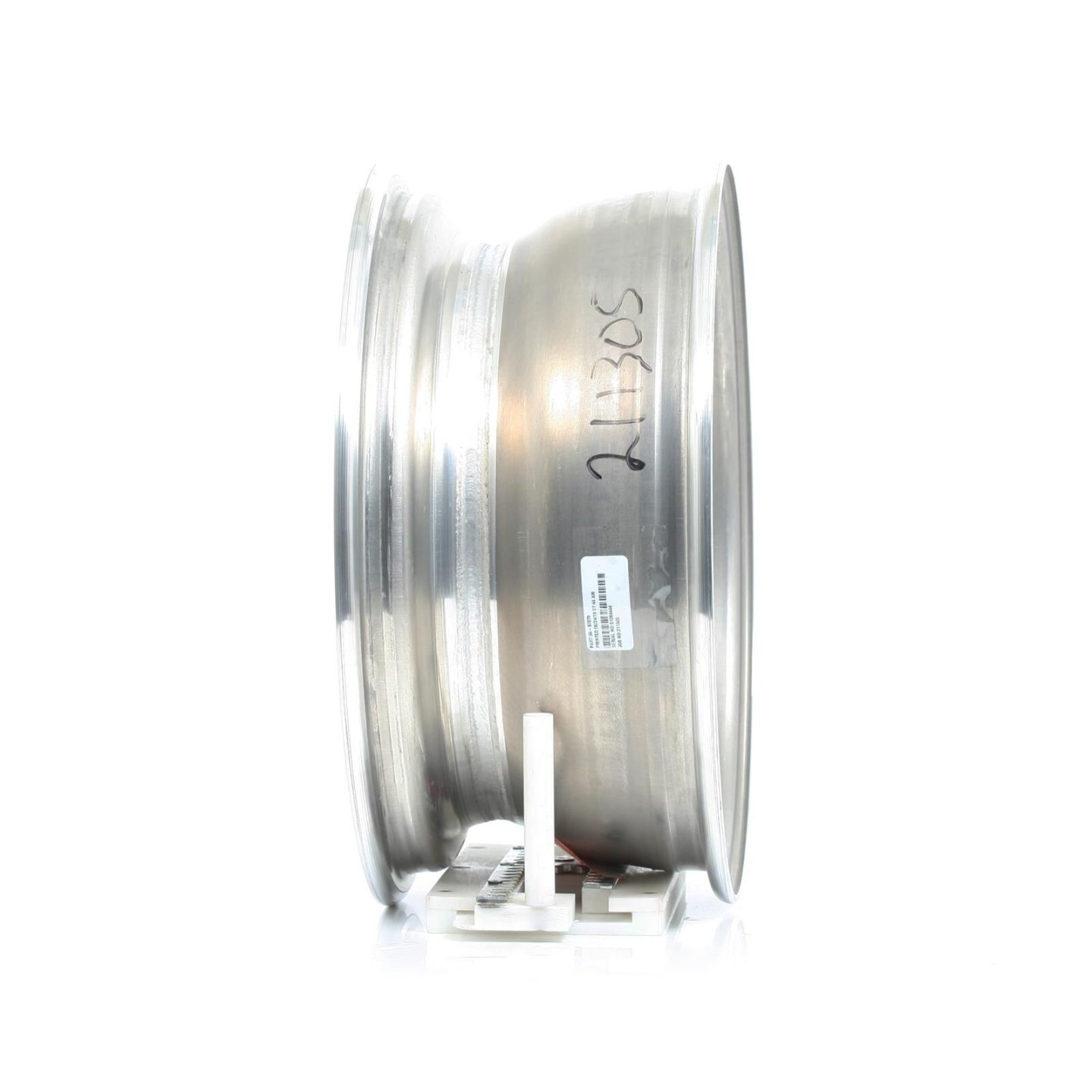

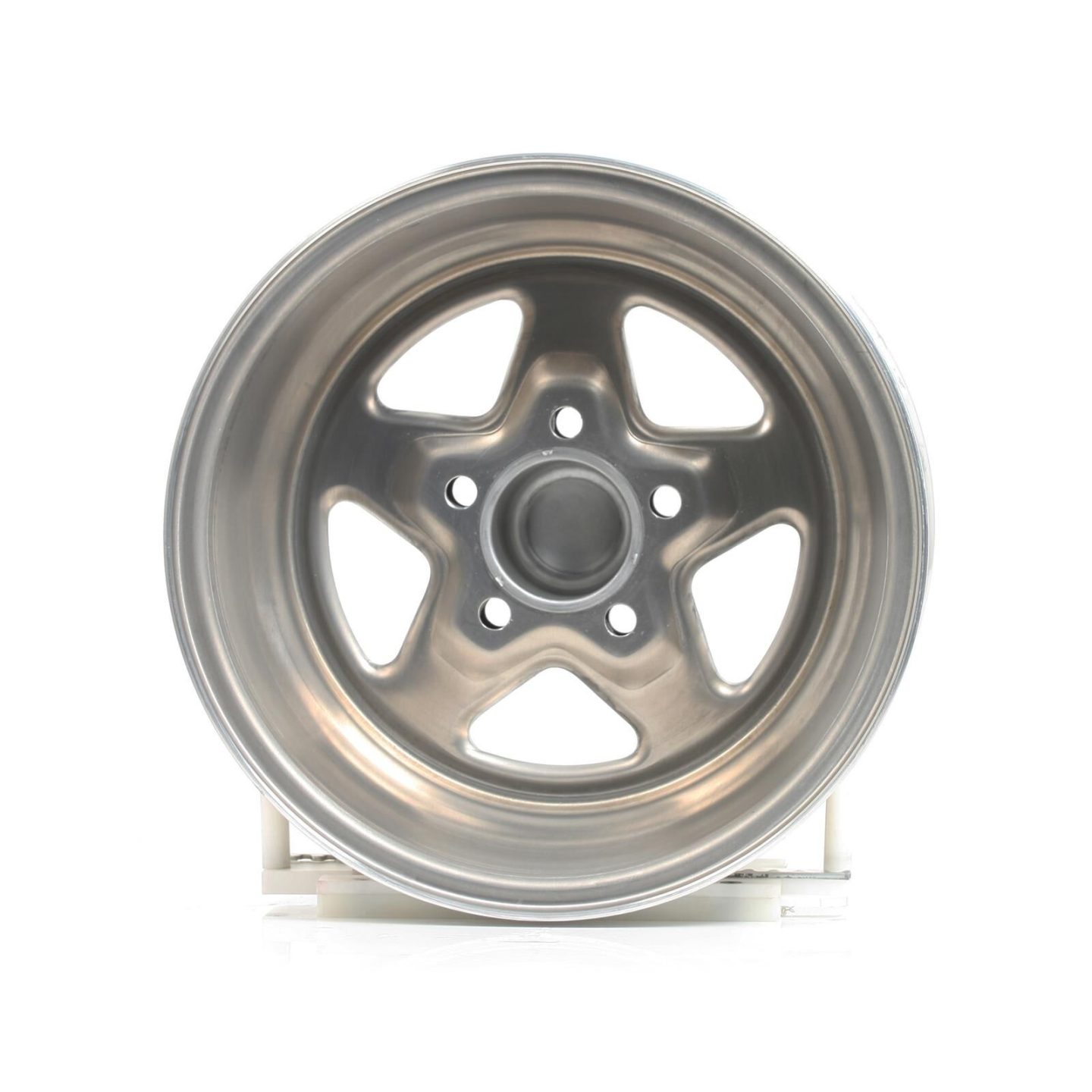

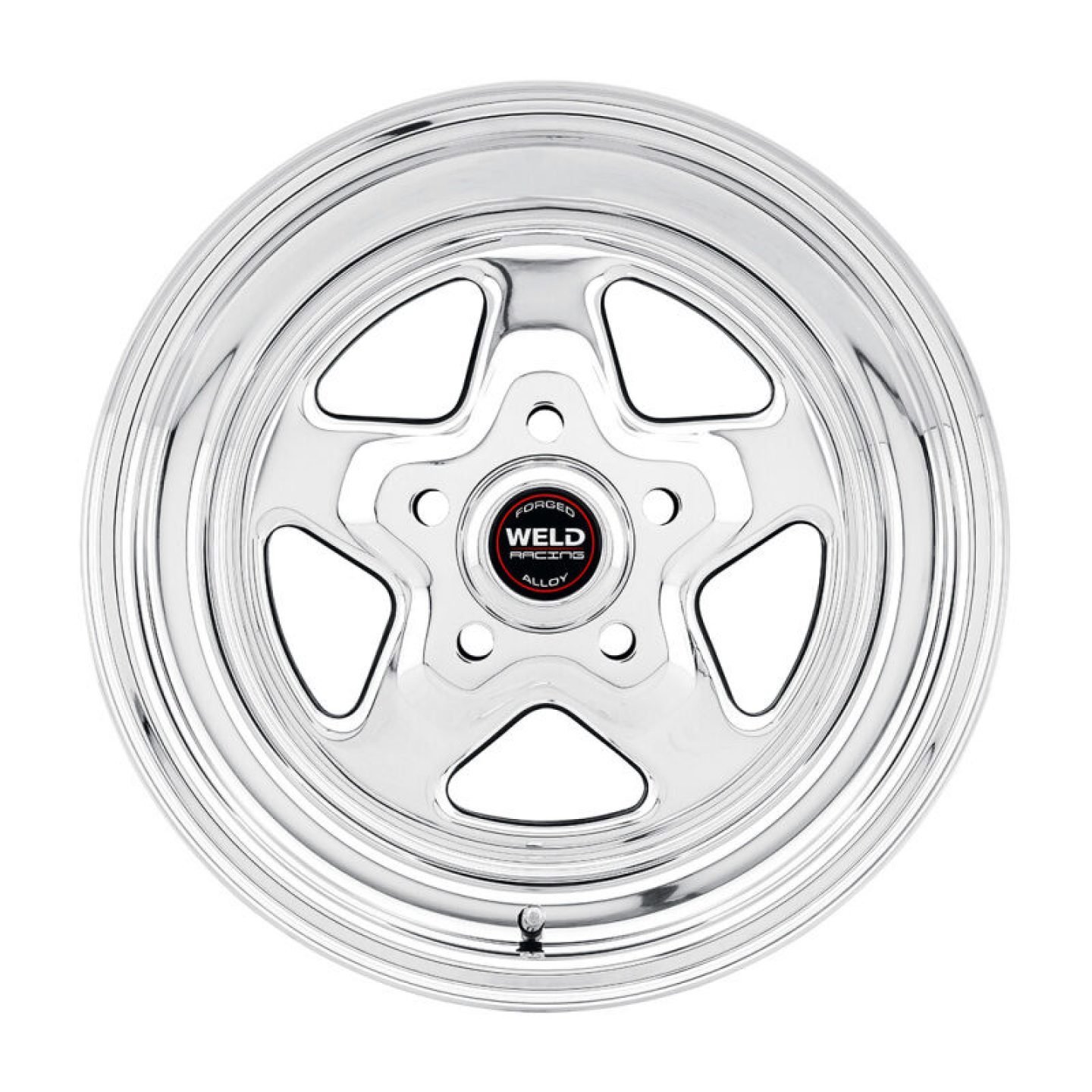

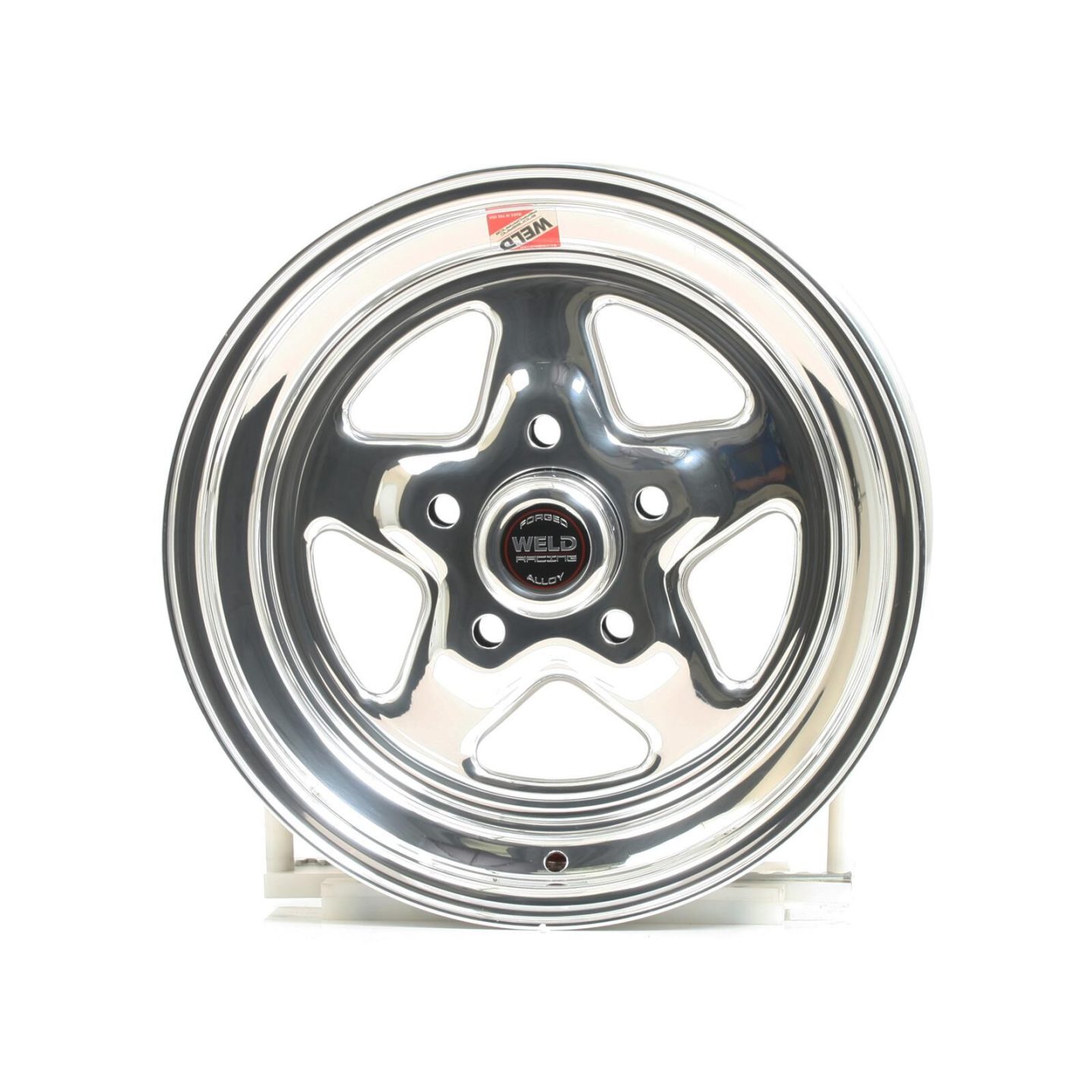

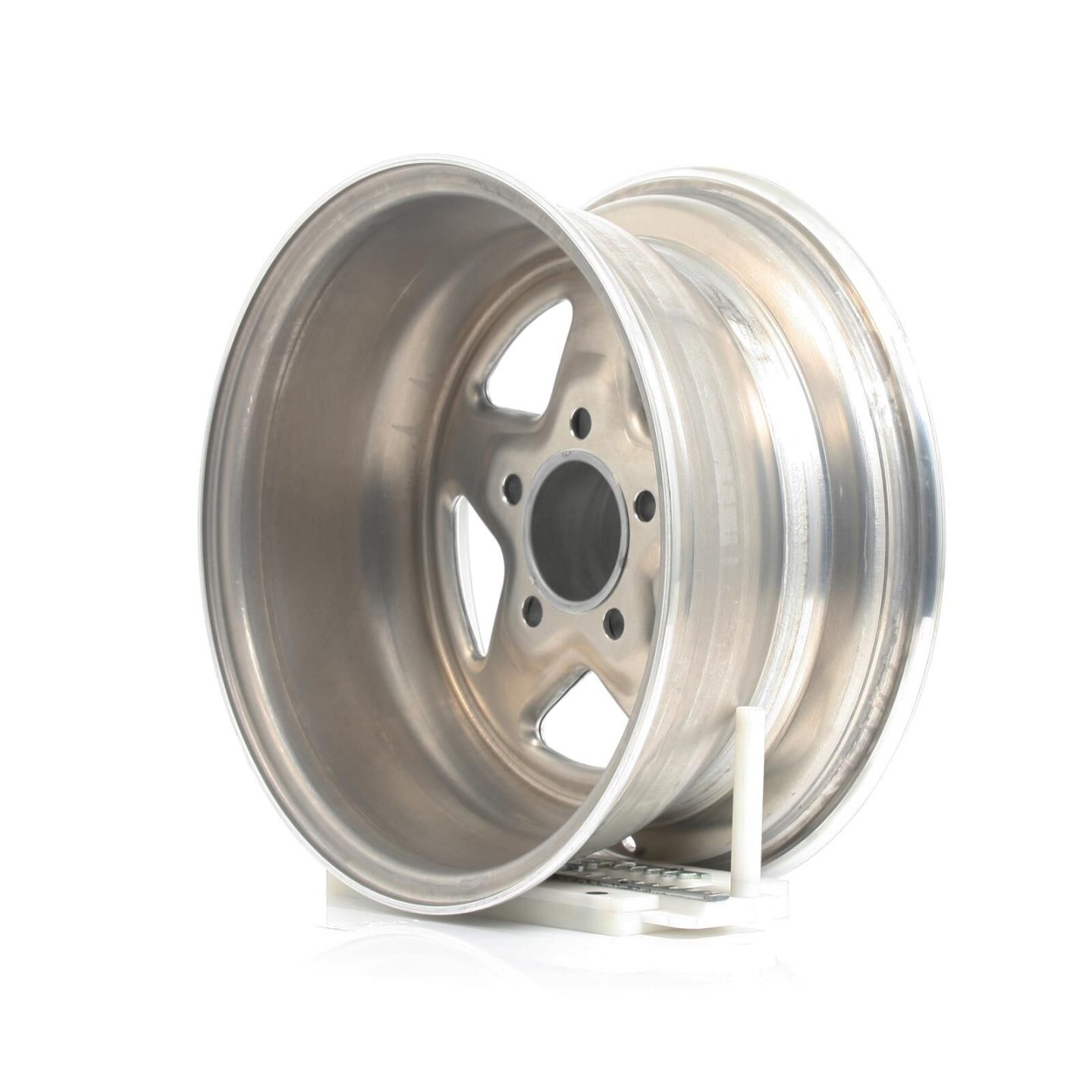

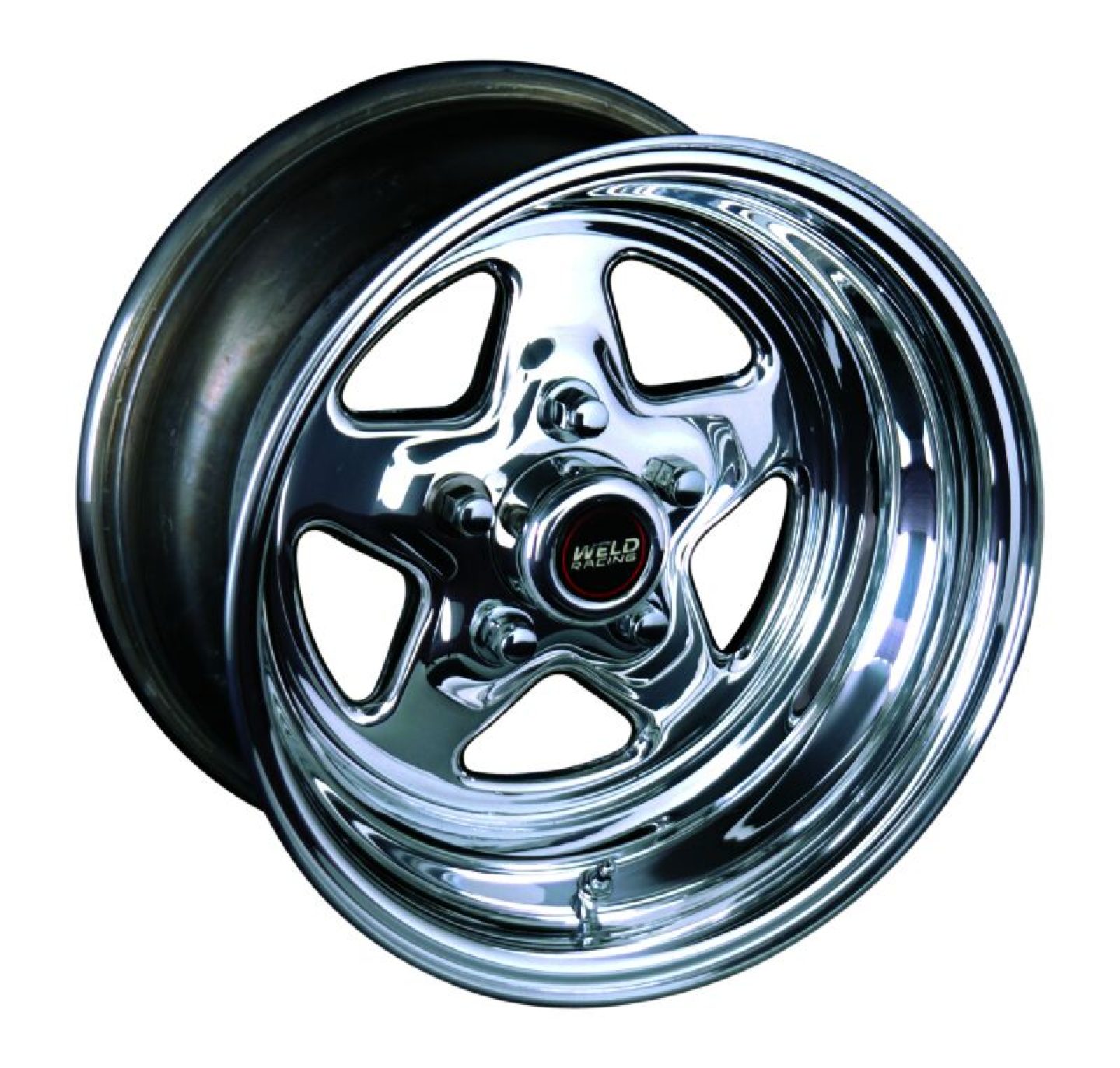

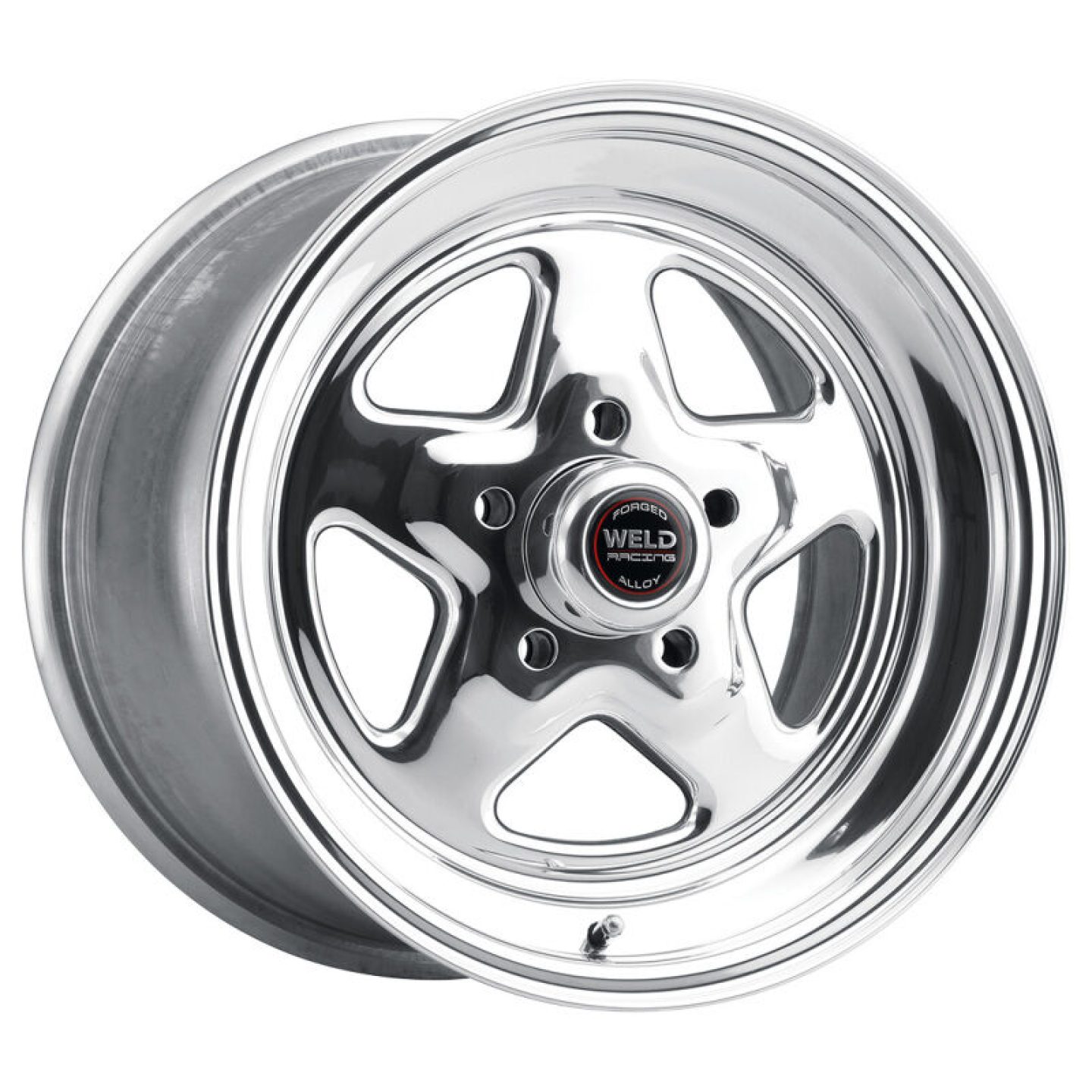

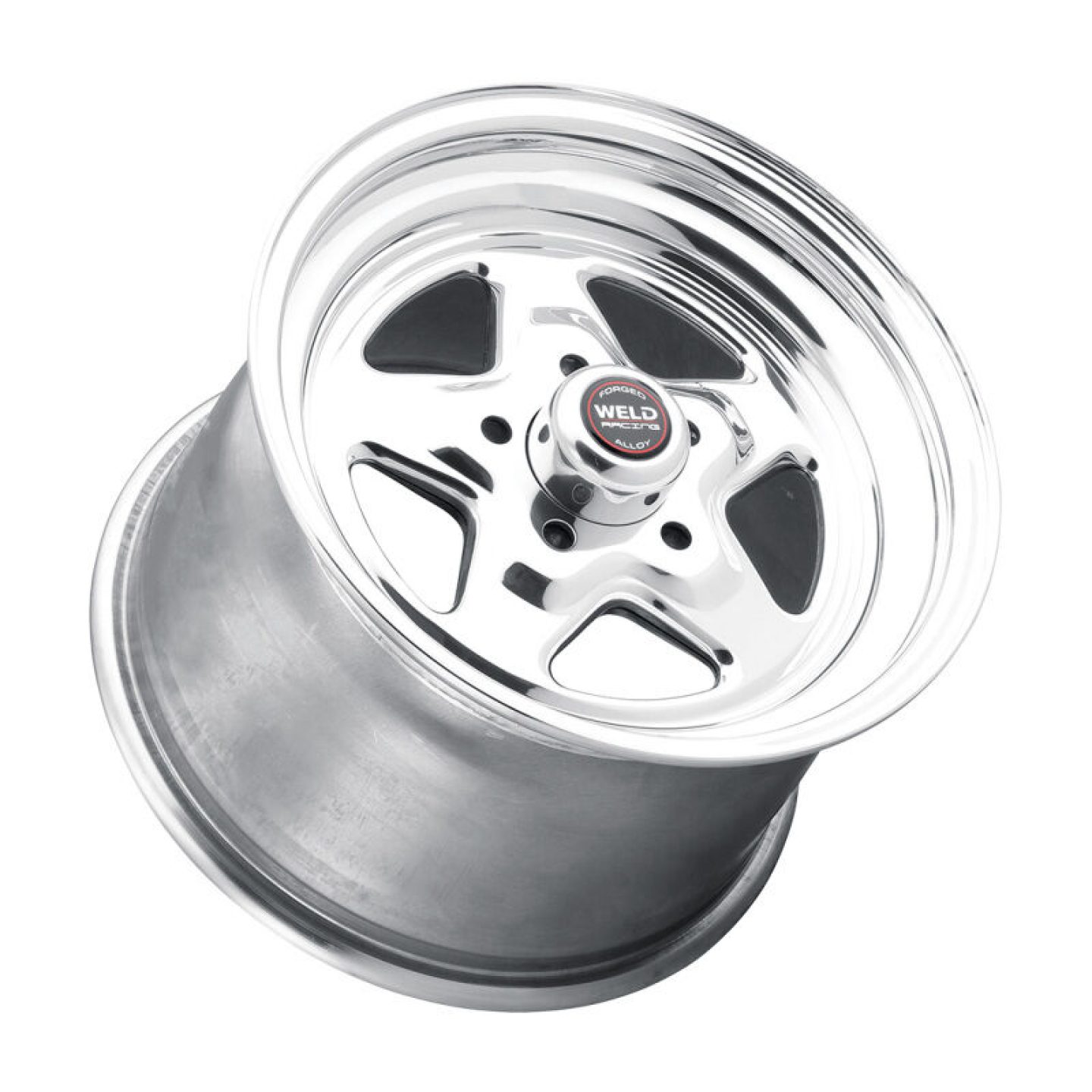

Wheel - Prostar - 15 x 7 in - 4.500 in Backspace - 5 x 4.75 in Bolt Pattern - Aluminum - Polished - Each
Weld ProStar 15x7 / 5x4.75 BP / 4.5in. BS Polished Wheel - Non-Beadlock
If there is a classic design for street and strip cars, it would be the WELD Sport Forged wheels. These designs are perhaps the most well known and established in the WELD family. They have a timeless look that has no shortage of style. 2-pc wheel design uses a revolutionary cold forged and welded construction for a lighter and stronger wheel. The best strength to weight ratio and lowest rotational moment of inertia of all mid-priced wheels.
Additional Information
15X7'' Polished Prostar 5X4.75'' Bolt Pattern 4.5'' Backspace; Valve Stem and Center Cap Included; Made in Kansas City, MO USA
Part Type
Wheel
| Additional Application Notes | |
|---|---|
| • 15" - 7/16" - RH20 studs | |
| • 15" - 12 MM x 1.5 studs | |
| • 15" 7/16" - RH20 studs | |
| • Position: Front; 15" - 12MM x 1.5 studs | |
| • Position: Rear; 15" - 7/16" - RH20 studs | |
| • 15" - RWD - 12MM x 1.5 studs | |
| • Position: Front; 15" - 12 MM x 1.5 studs | |
| • 15" - 12 MM x 1.5studs | |
| • 15" - 7/16" -RH20 studs | |
These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.
Data: v2 - Desc: v4.2 - Upd: 2026-11-08 08:45:24
Features
Note in regards to wheels and tyres.
Unless otherwise stated, wheels and tyres are supplied individually. They are not typically listed as a full set since most vehicles run different widths and offsets front to rear. Please carefully check your PCD, width and offset (ET) when choosing wheels or wheel and tyre packages. If you need more information or clarification, contact StreetFX customer support prior to ordering.
(keyword: wheel)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Product Details
| Backspacing: | 4.5 |
| Center Cap Included: | Yes |
| Color: | Polished |
| Description: | Weld ProStar 15x7 / 5x4.75 BP / 4.5in. BS Polished Wheel - Non-Beadlock |
| Diameter: | 15 |
| Finish: | Polished |
| Inside Diameter: | 3.18 |
| Lug Hole Quantity: | 5 |
| Material: | Forged Aluminum |
| Part Number: | wel96-57278 |
| TPMS Compatible: | Yes |
| Title: | WELD Street and Strip 15X7'' Polished Prostar 5X4.75'' Bolt Pattern 4.5'' Backspace |
| Wheel Bolt Pattern Size: | 4.75 |
| Width: | 7 |
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Weld, Weld Performance, Weld Racing |
| StreetFX SKU | wel96-57278 |
| SFX Item ID | 4181339 |
| Accounting SKU | wel-96-57278 |
| Manufacturer SKU | 96-57278 |
| Manufacturer UPC | 190300474561 |
| Alternative References | WLD-96-57278 |
Wheel, Prostar, Aluminum, Polished, 15 in. x 7 in., 5 x 4.75 in. Bolt Circle, 4.50 in. Backspace, Each
Weld Racing Prostar polished wheels are like no other. They're precision-crafted from cold-forged aluminum for superior strength and are up to 40 percent lighter than comparable race wheels. Prostar wheels are guaranteed tubeless and include an aluminum push-through center cap.
| Product Attributes | |
|---|---|
| Brand | Weld Racing |
| Manufacturer's Part Number | 96-57278 |
| Part Type | Wheels |
| Product Line | Weld Racing Prostar Polished Wheels |
| UPC | 190300474561 |
| Wheel Diameter | 15 in. |
| Wheel Width (in.) | 7.00 |
| Wheel Size | 15x7 |
| Wheel Bolt Pattern (application) | 5 x 120.65mm 5 x 4 3/4 in. |
| Wheel Material | Forged aluminum |
| Designed for Dually Truck | No |
| Wheel Face Color | Polished |
| Wheel Face Finish | Polished |
| Wheel Barrel/Lip Color | Polished |
| Wheel Barrel/Lip Finish | Polished |
| Manufacturers Wheel Series | Weld Racing Prostar Series |
| Backspacing (in.) | 4.50 |
| Offset | +12.00mm |
| Wheel Construction | 2-piece |
| TPMS Sensor Compatible | Yes |
| Beadlock Type | None |
| Lug Nut/Bolt Seat Style | Shank |
| Lug Nut Shank Length (in.) | 1.38 |
| Lug Nut Shank Diameter (in.) | 0.69 |
| Washer Outside Diameter (in.) | 1.25 in. |
| Hub Centric Ring Compatible | No |
| Center Bore Diameter (in.) | 3.18 |
| Center Bore Diameter (mm) | 80.77 |
| Center Cap Included | Yes |
| Load Rating (lbs.) | 1,200 lbs. |
| Lug Nuts Included | No |
| Small Diameter Lug Nuts Required | No |
| Valve Stems Included | Yes |
| Quantity | Sold individually. |
| Notes | The warranty will be voided if used on vehicles exceeding 4,800 GVW or if used with 31 in. or taller tires. For drag racing use only. The warranty will also be voided if used in any other types of racing like, road race, solo, off-road or towing. |
| Special Attention | Due to the construction of the inner wheel barrel, some aftermarket brake kits may require modification for fitment and clearance. |
| Application Notes | The warranty will be voided if used on vehicles exceeding 4,800 GVW or if used with 31 in. or taller tires. For drag racing use only. The warranty will also be voided if used in any other types of racing like, road race, solo, off-road or towing. |
