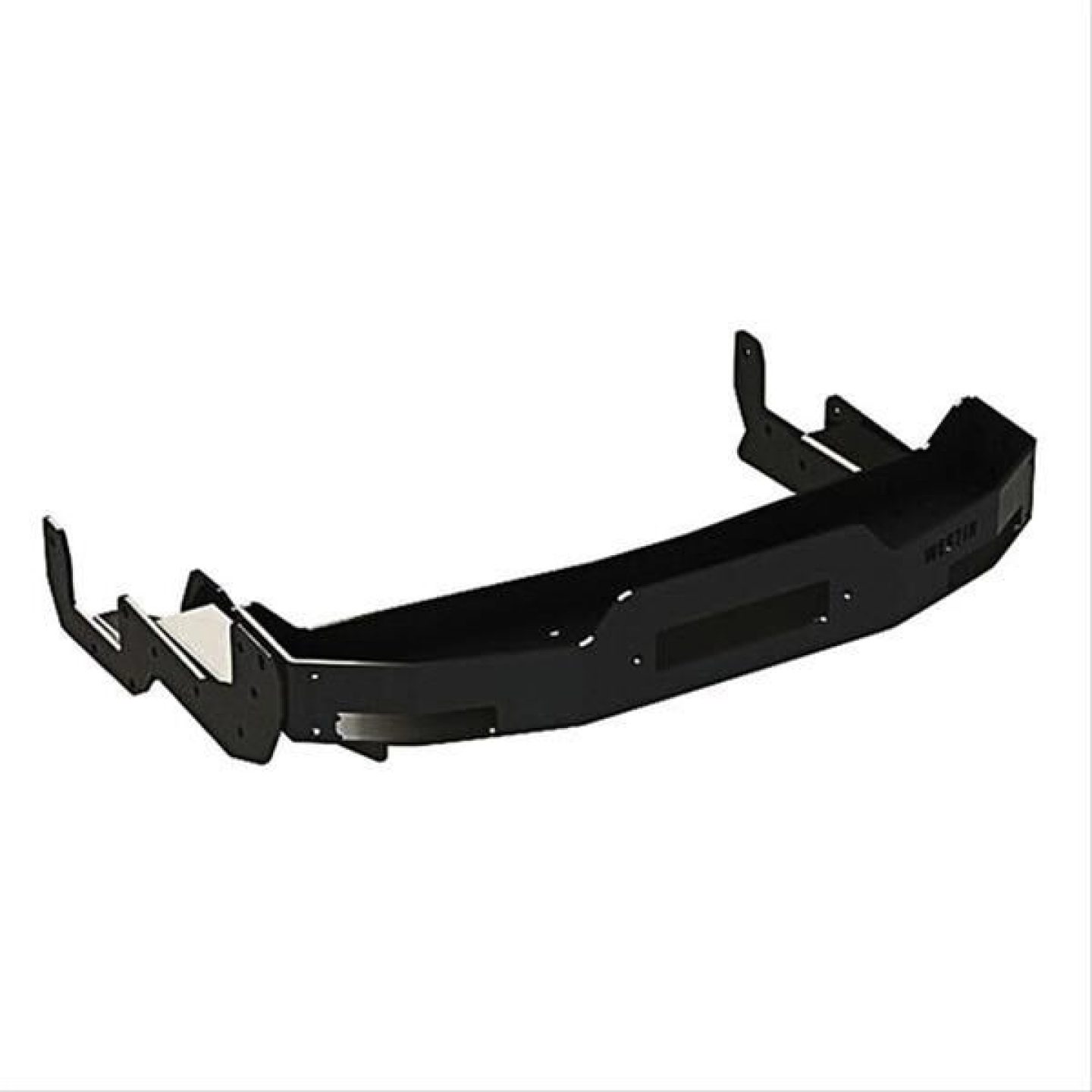

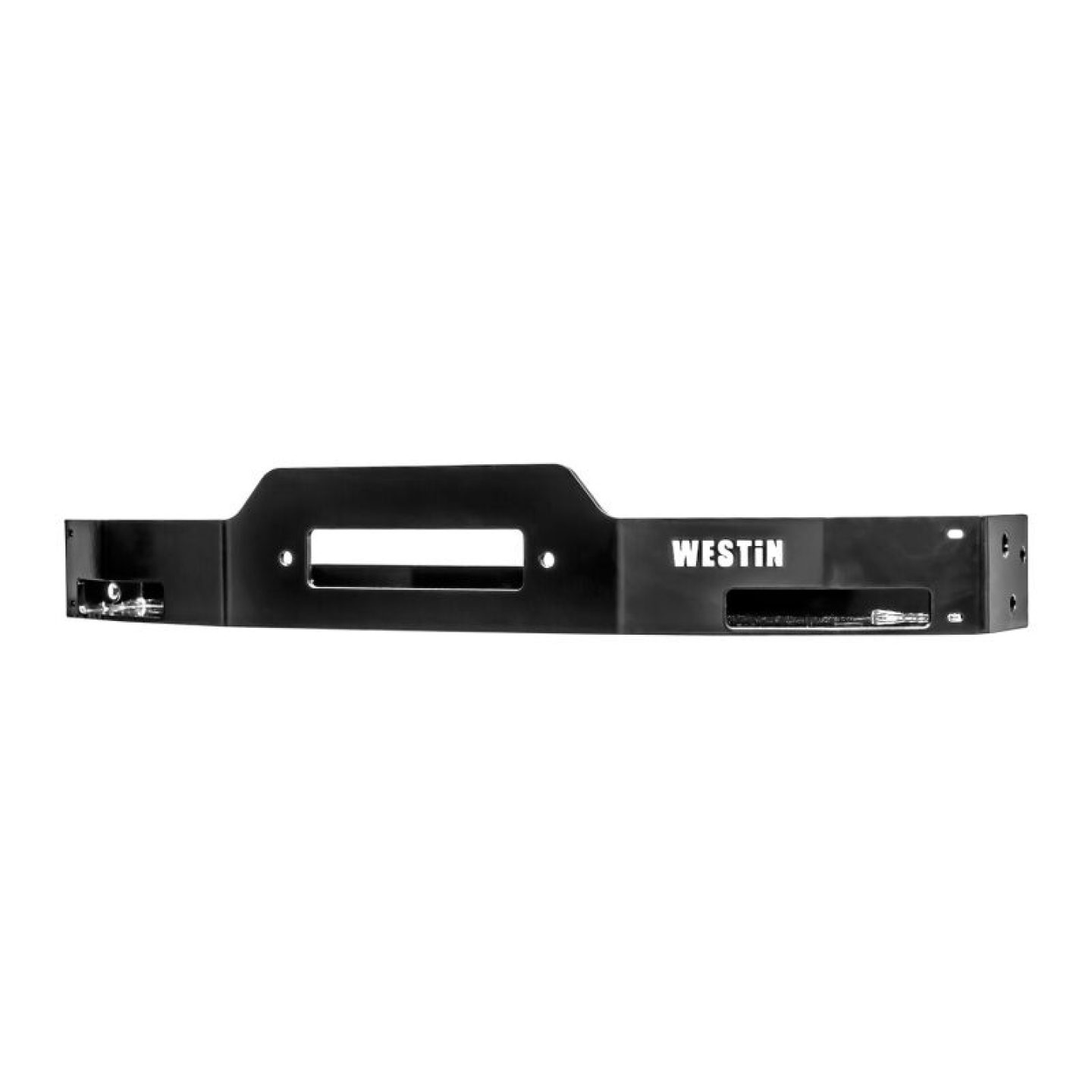

Winch Mount Plate

Mounts directly to frame. Max grill guards bolt directly to the tray. Accommodates up to 12000 pound winches. No drill installation.

Additional Information

MAX Winch Tray; Black;

• Accommodates Up To 12000 lb. Winches
• Fits most medium frame 8,000-12,000 lbs winches up to 10.25" tall
• HD brackets mount directly to vehicle frame
• MAX Grill Guards Bolt Directly To Tray
• Mounts Directly To Frame
• No Drill Installation
• Optional MAX Bull Bar/Light Bar
• Optional MAX Faceplate
• Optional MAX Tow Hooks (Part No. 46-3005 - 2 needed)
• Pre-drilled for quick mounting of hawse or roller fairlead
• Winch tray tested to a maximum straight line pull of 16,500 lbs

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Winch Tray, T-Max, Channel, Steel, Black Powdercoated, Chevy, GMC, Each

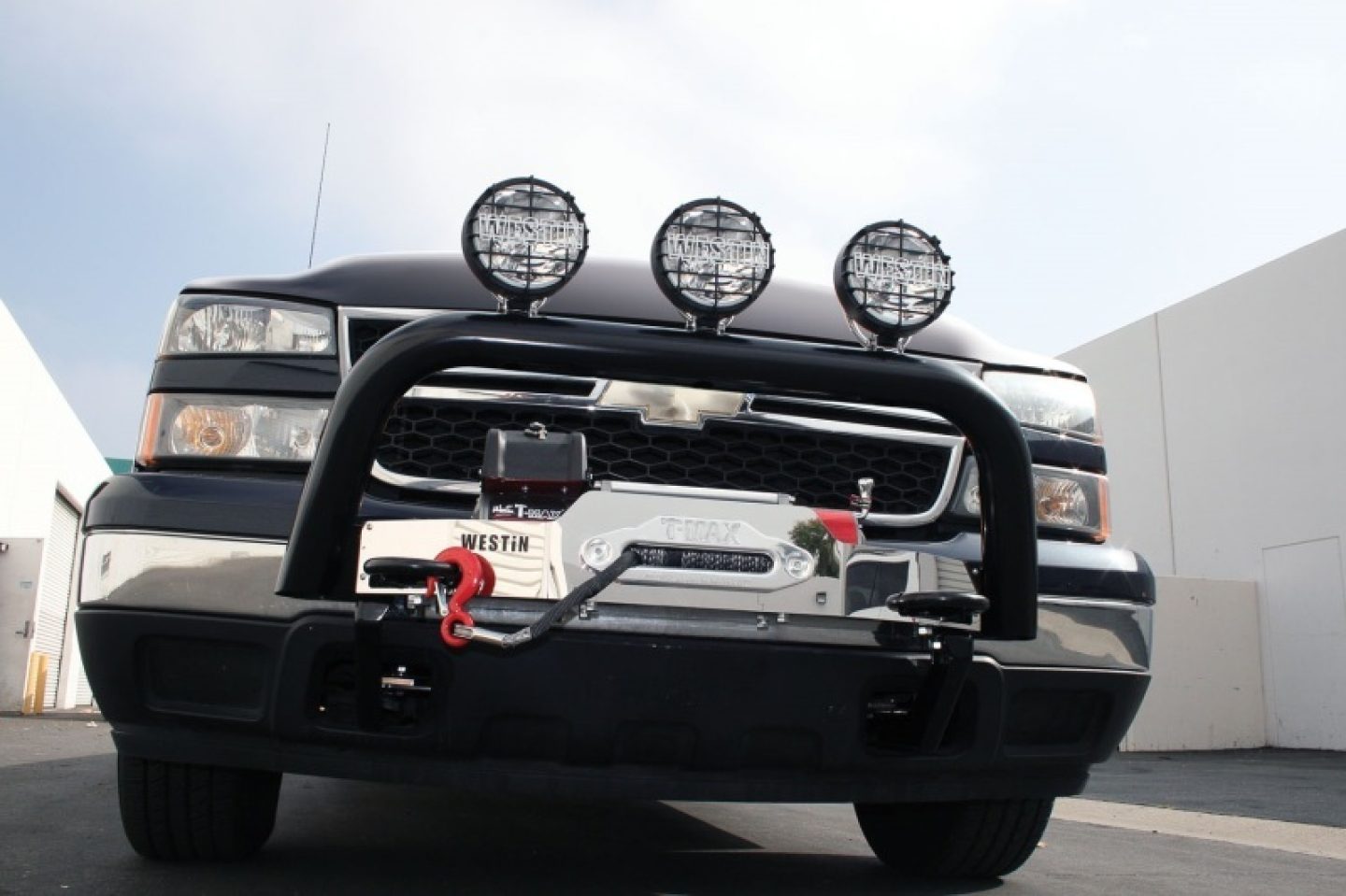

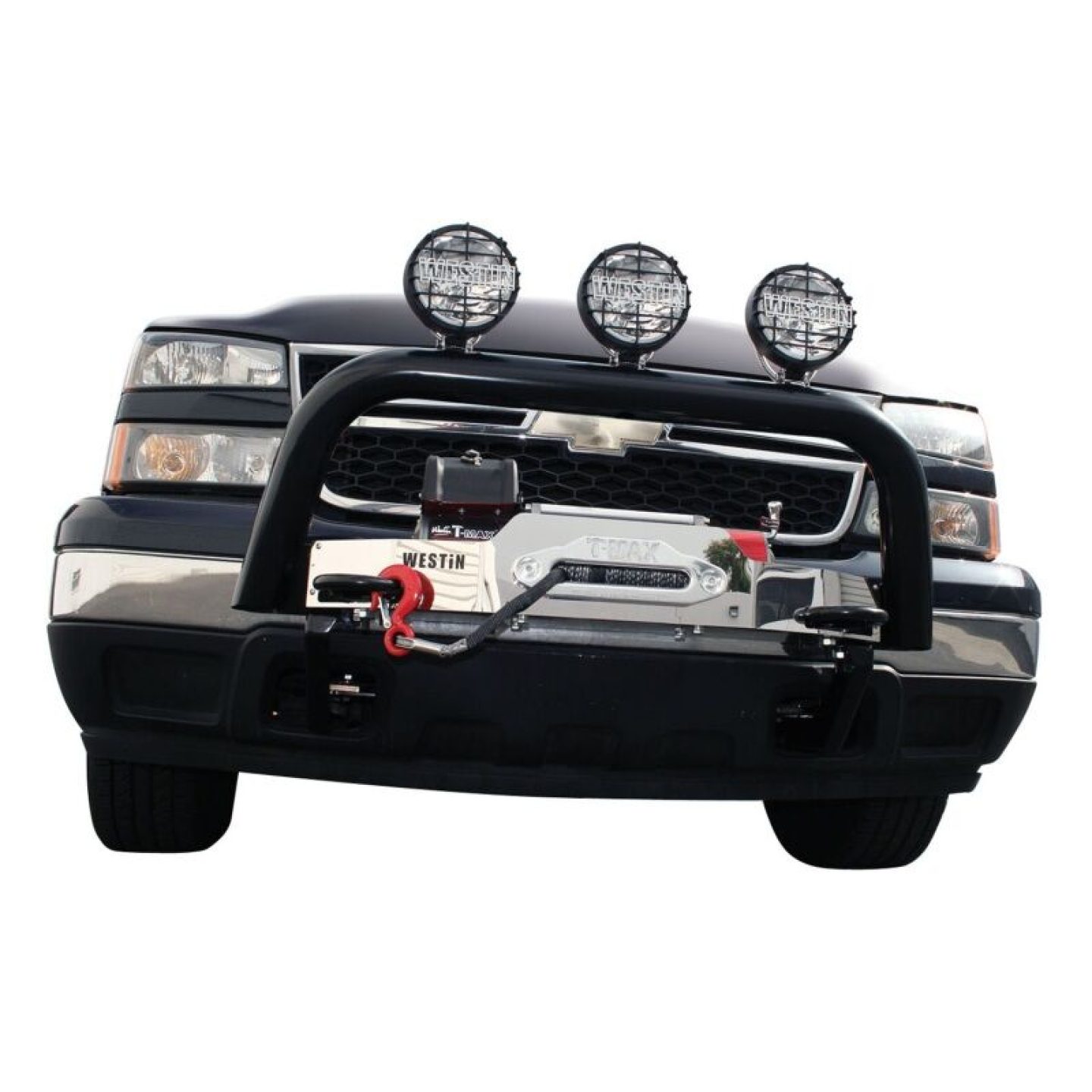

Westin T-Max winch trays are designed to accept most major brand winches—and are engineered to handle the full load expected from the avid off-roader. These rugged-built trays easily mount directly to your truck frame and are fabricated from high-quality steel with a black powdercoat finish to last. The winch trays can also be mounted with the T-Max bull bar/light bar, which provides a mounting point for off-road lights.
