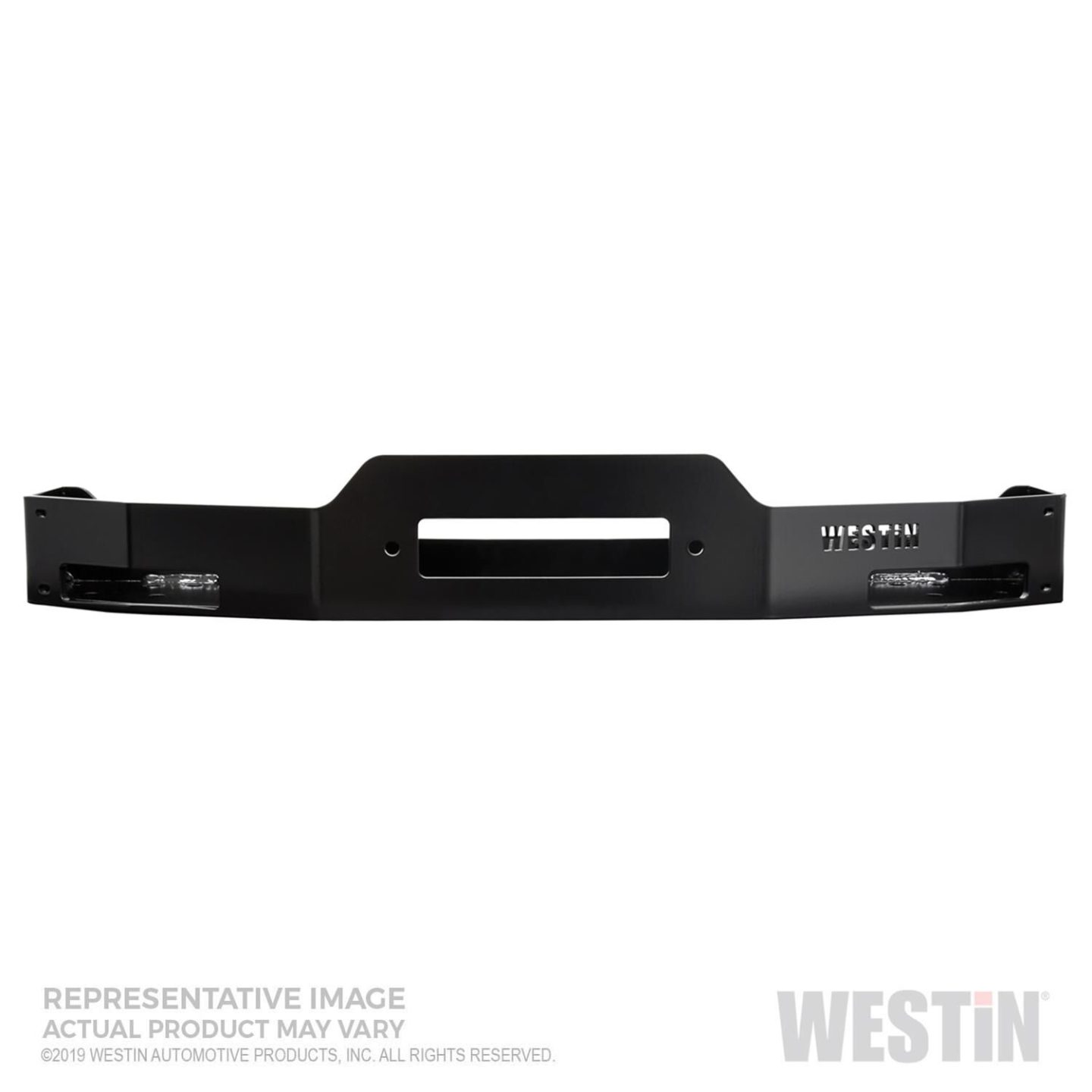

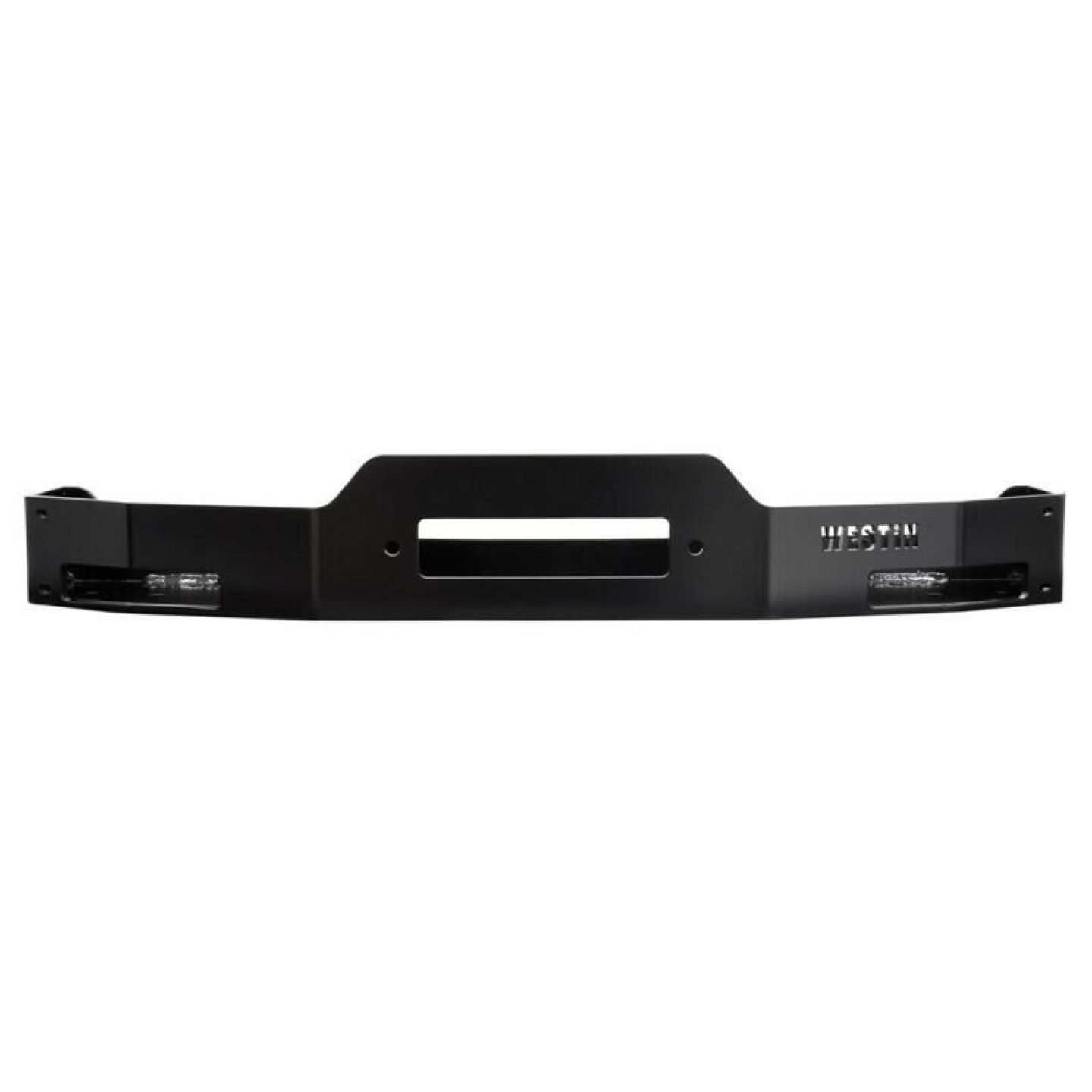

Winch Mount Plate

Mounts directly to frame. Max grill guards bolt directly to the tray. Accommodates up to 12000 pound winches. No drill installation.

Additional Information

MAX Winch Tray; Black;

• Accommodates Up To 12000 lb. Winches
• Fits most medium frame 8,000-12,000 lbs winches up to 10.25" tall

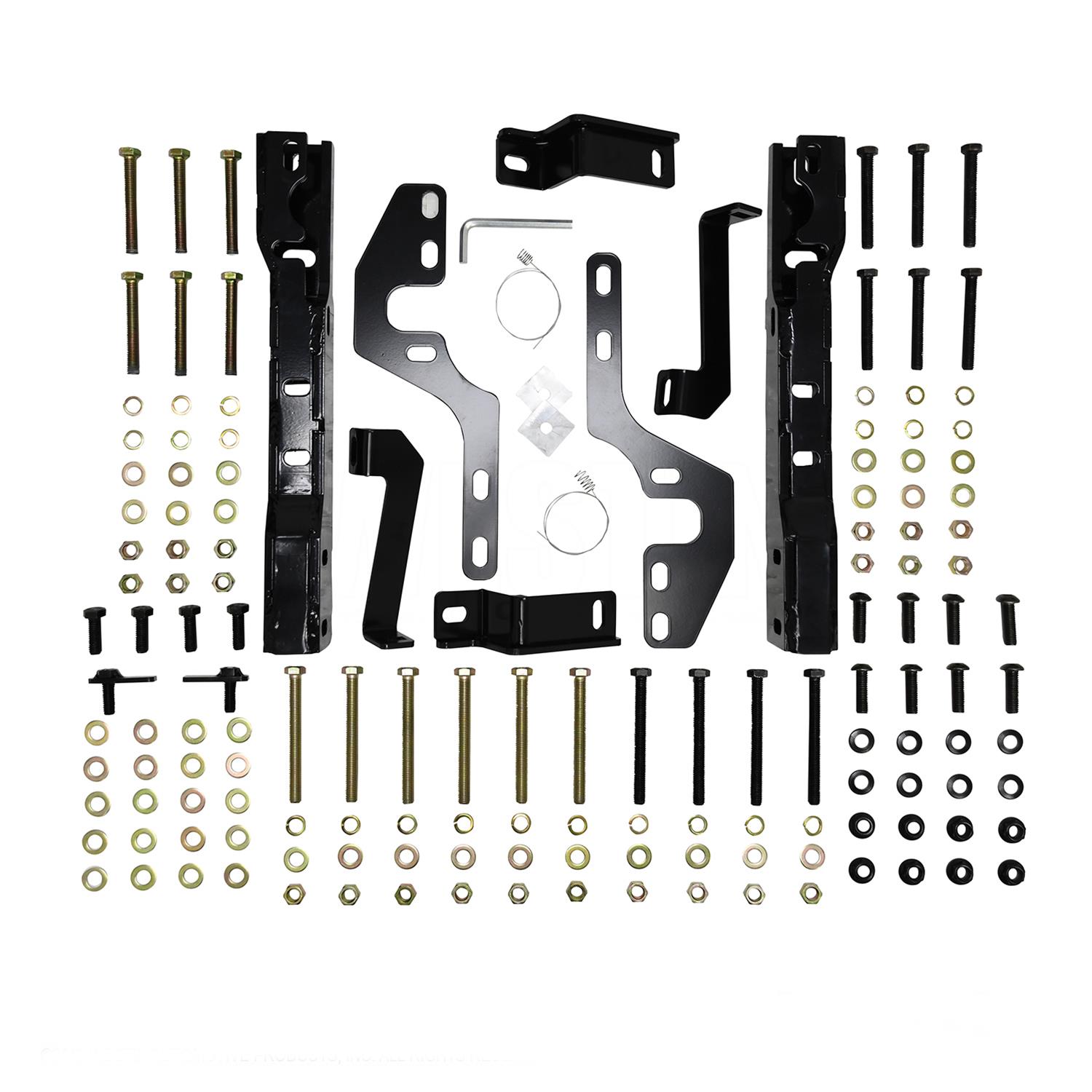

• HD brackets mount directly to vehicle frame
• MAX Grill Guards Bolt Directly To Tray
• Mounts Directly To Frame
• No Drill Installation
• Optional MAX Bull Bar/Light Bar
• Optional MAX Faceplate
• Optional MAX Tow Hooks (Part No. 46-3005 - 2 needed)
• Pre-drilled for quick mounting of hawse or roller fairlead
• Winch tray tested to a maximum straight line pull of 16,500 lbs

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	wes57-94025	Westin Ram 2500/3500 19-2021 HDX Winch Mount Grille Guard (1x wes46-24025, 1x wes57-94025A)
	wes57-924025	Westin 19-22 Dodge Ram 2500/3500 HDX Winch Mount Grille Guard & Winch Tray - Black (1x wes46-24025, 1x wes57-924025A)

Special Note for Dodge Ram (Classic/DT/DS)

Since Dodge/Ram manufacturered concurrent Ram 1500, 2500 & 3500 models on both new and old body designs, please ensure you select the parts to suit the correct submodel. The year alone may not always be a reliable way to verify your submodel in the case of some Rams, so we encourage you to double check if you have the Classic, or the new shape when making orders for parts that are not the identical between both styles.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Winch Mount, MAX Winch Tray, Channel Style, Steel, Black Powdercoated, Ram, Each

Westin MAX winch trays fit most medium-frame 8,000 to 12,000 lb. winches (up to 10.25 in. tall). Their heavy-duty brackets mount directly to the vehicle frame. Winch trays are tested to a maximum straight line pull of 16,500 lbs. The black powdercoated steel units are pre-drilled for quick mounting of hawse or roller fairlead.

(Optional add-ons available separately include: MAX bull bar/light bar; MAX faceplate; MAX tow hooks)
