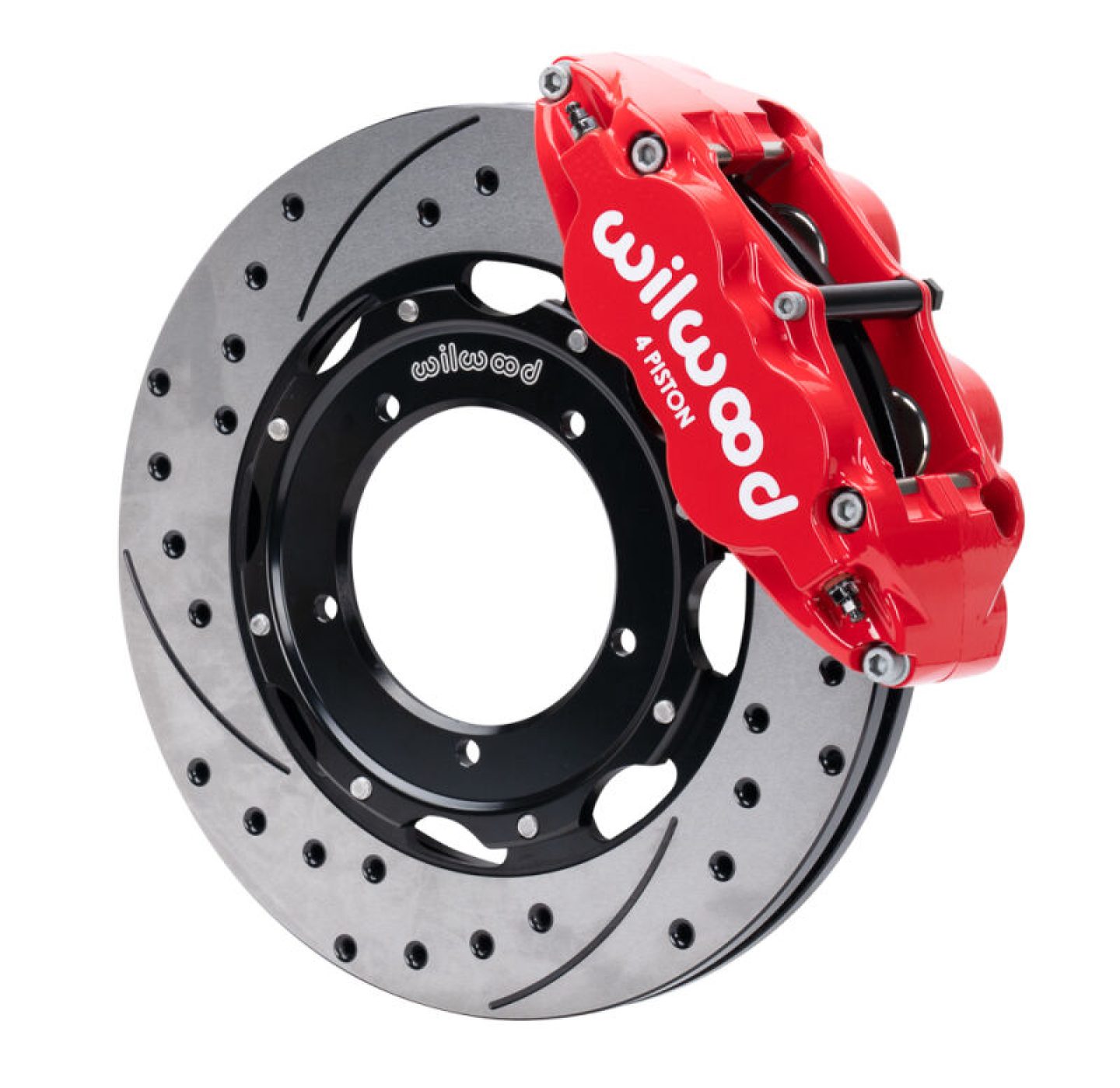

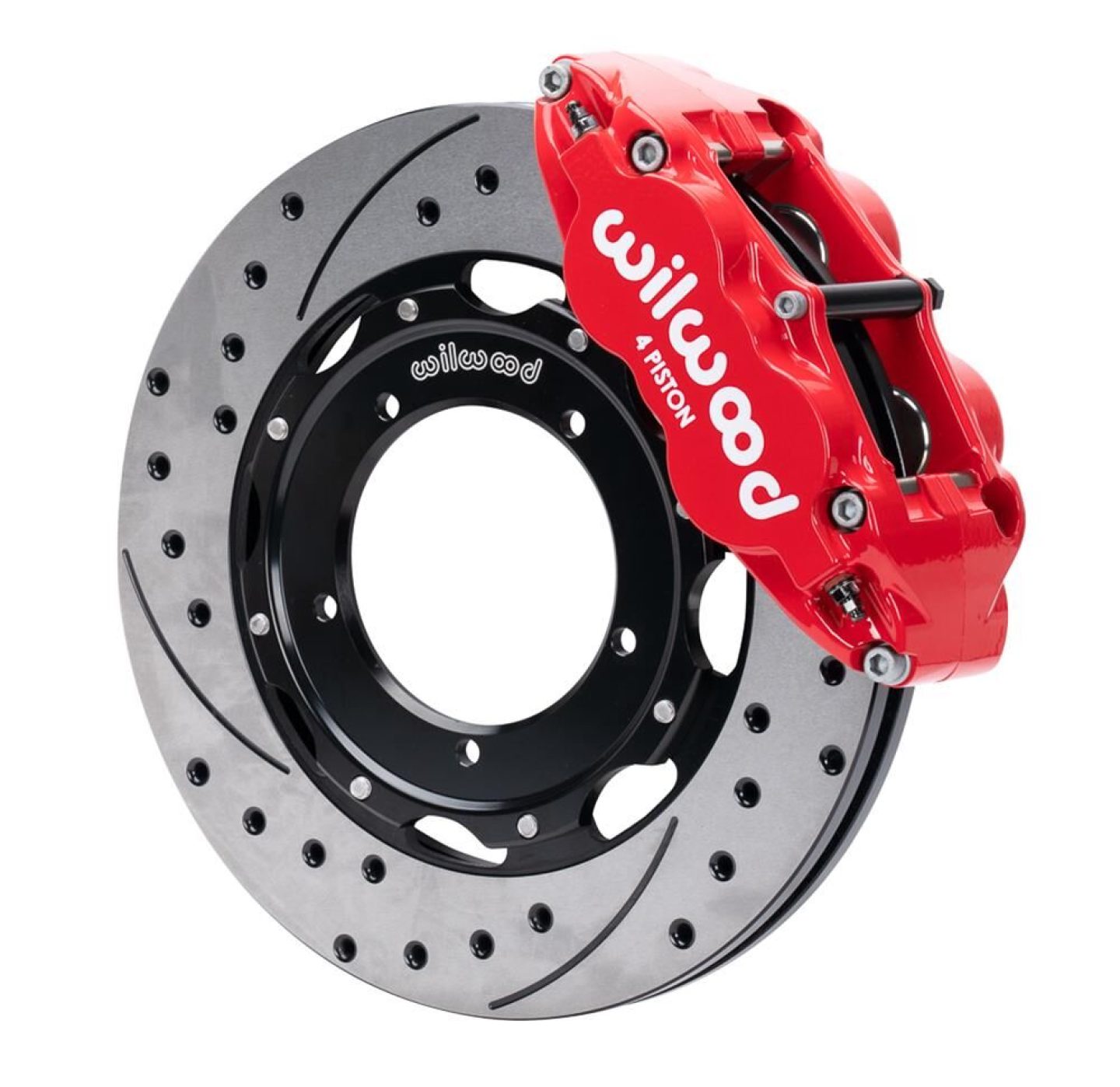

Wilwood 69-89 Porsche 911 Front Superlite Brake Kit 3.5in MT Drilled & Slotted Face - Red
Wilwood 69-89 Porsche 911 Front Superlite Brake Kit 3.5in MT Drilled & Slotted Face - Red
Description
Wilwood 69-89 Porsche 911 Front Superlite Brake Kit 3.5in MT Drilled & Slotted Face - Red
Data: v2 - Desc: v4.2 - Upd: 2026-11-08 10:17:22
Features
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Wilwood, Wilwood Disc Brakes |
| StreetFX SKU | wil140-16947-DR |
| SFX Item ID | 4408626 |
| Accounting SKU | wil-140-16947-DR |
| Manufacturer SKU | 140-16947-DR |
| Manufacturer UPC | 889545108477 |
| Alternative References | WIL-140-16947-DR |
Disc Brakes, Forged Narrow Superlite 4R Big, Front, Cross-Drilled/Slotted Rotors, 4-Piston, Red Calipers, 3.5 in. Mount, Brake Hoses, Porsche, Kit
Lifted 4x4s with taller and heavier tire and wheel combinations need Wilwood Forged Narrow Superlite 4R big brake front brake kits to restore stopping power. SL4 kits are specifically engineered per application, but all revolve around Forged Narow Superlite 4R four-piston stainless steel calipers with their 4-symmetrical bores and high clamping force. Oversized, proprietary iron alloy, Spec 37 rotors withstand extreme temperatures and have a high degree of resistance to warping, cracking, distortion, and wear. Both of these parts are built to work hard without issues, but Wilwood's kit doesn't stop there. They also feature forged aluminum mounting hats, BP-10 Smart Pads to increase friction and reduce pad dust, radial mounting brackets, and hardware. Custom wheels and tall tires give character and off-road prowess, but if you can't stop them you're destined to hurt yourself and many others. Wilwood Forged Narrow Superlite 4R big brake front brake kits will help reel in your beast.
| Product Attributes | |
|---|---|
| Brand | Wilwood Disc Brakes |
| Manufacturer's Part Number | 140-16947-DR |
| Part Type | Disc Brake Kits |
| Product Line | Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kits |
| UPC | 889545108477 |
| Position | Front |
| Front Rotor Included | Yes |
| Front Rotor Style | Cross-drilled/Slotted surface |
| Front Rotor Construction | Vented |
| Front Rotor Diameter | 12.19 in./309.63mm |
| Front Rotor Thickness (in.) | 1.10 in. |
| Brake Rotor Bolt Pattern (in.) | 5 x 4.96 in. |
| Brake Rotor Bolt Pattern (mm) | 5 x 126.00mm |
| Rear Rotor Included | No |
| Front Caliper Included | Yes |
| Front Caliper Piston Quantity | Four |
| Front Caliper Material | Forged billet aluminum |
| Front Caliper Color | Red |
| Rear Caliper Included | No |
| Brake Pads Included | Yes |
| Friction Material Name | BP-10 |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Remanufactured | No |
| Brake Hoses Included | Yes |
| Quantity | Sold as a kit. |
| Notes | Kit bolts directly to the front struts with 3.5 in. spaced mounting tabs. |
