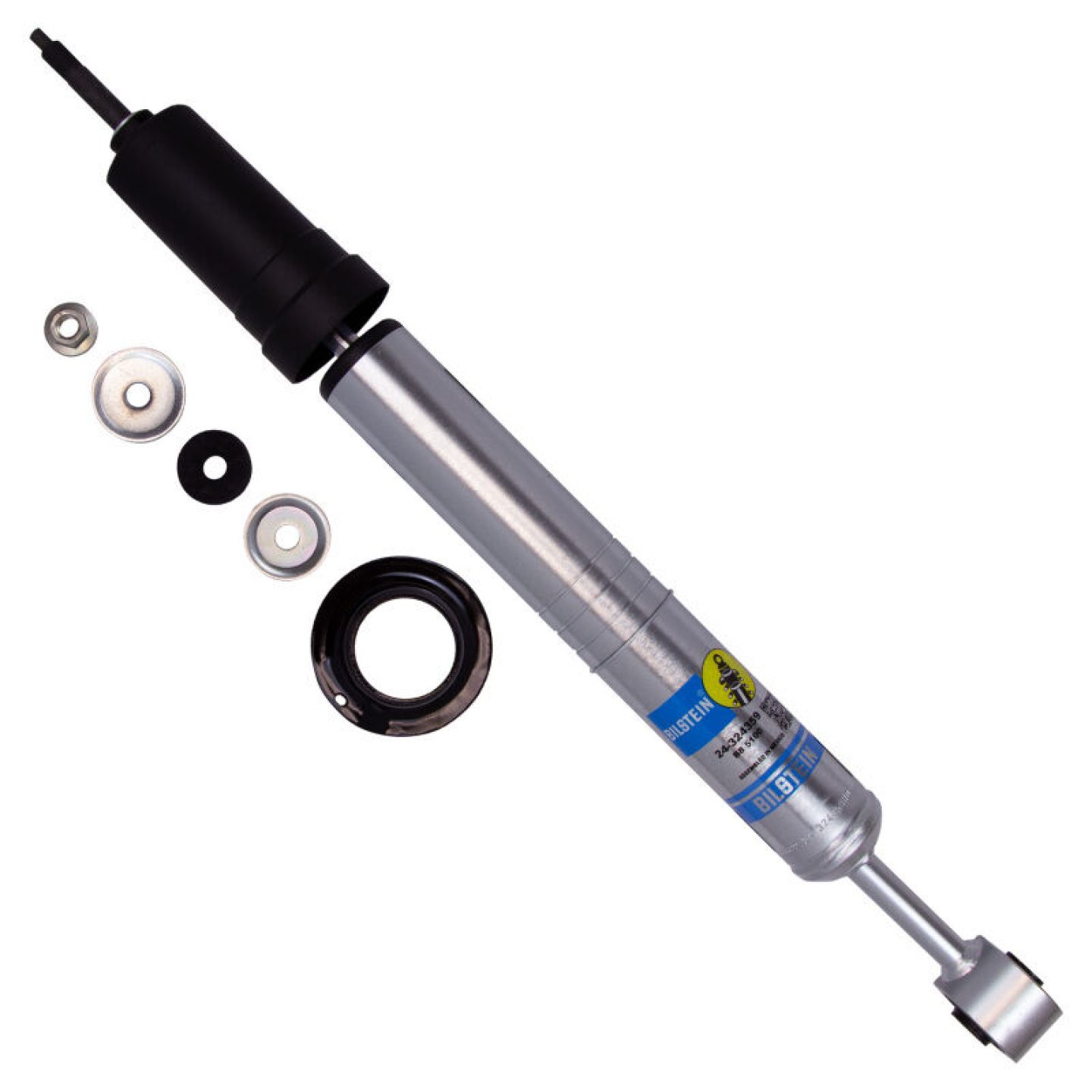

Shock - 5100 Series - Monotube - Steel - Zinc Plated - Front - Toyota Midsize SUV 2003-09 - Each

Shock

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Additional Information

46mm Monotube Shock Absorber

Part Type

Suspension Shock Absorber

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Adjustable spring seat offers 0-2.75in of lift, depending on the application
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions
2.	Catalog
3.	Product Brochure
4.	Material Safety Data Sheet

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Shock, 5100 Series, Monotube, Front, Lexus, Toyota, Each

Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model.

Additional features:
• 2 in. seamless extruded tube
• 14mm centerless-ground, case-hardened, chromed, and super-polished rod
• 46mm Bilstein digressive piston
• Self-adjusting, deflective-disc independent rebound and compression
