Exhaust Clamp

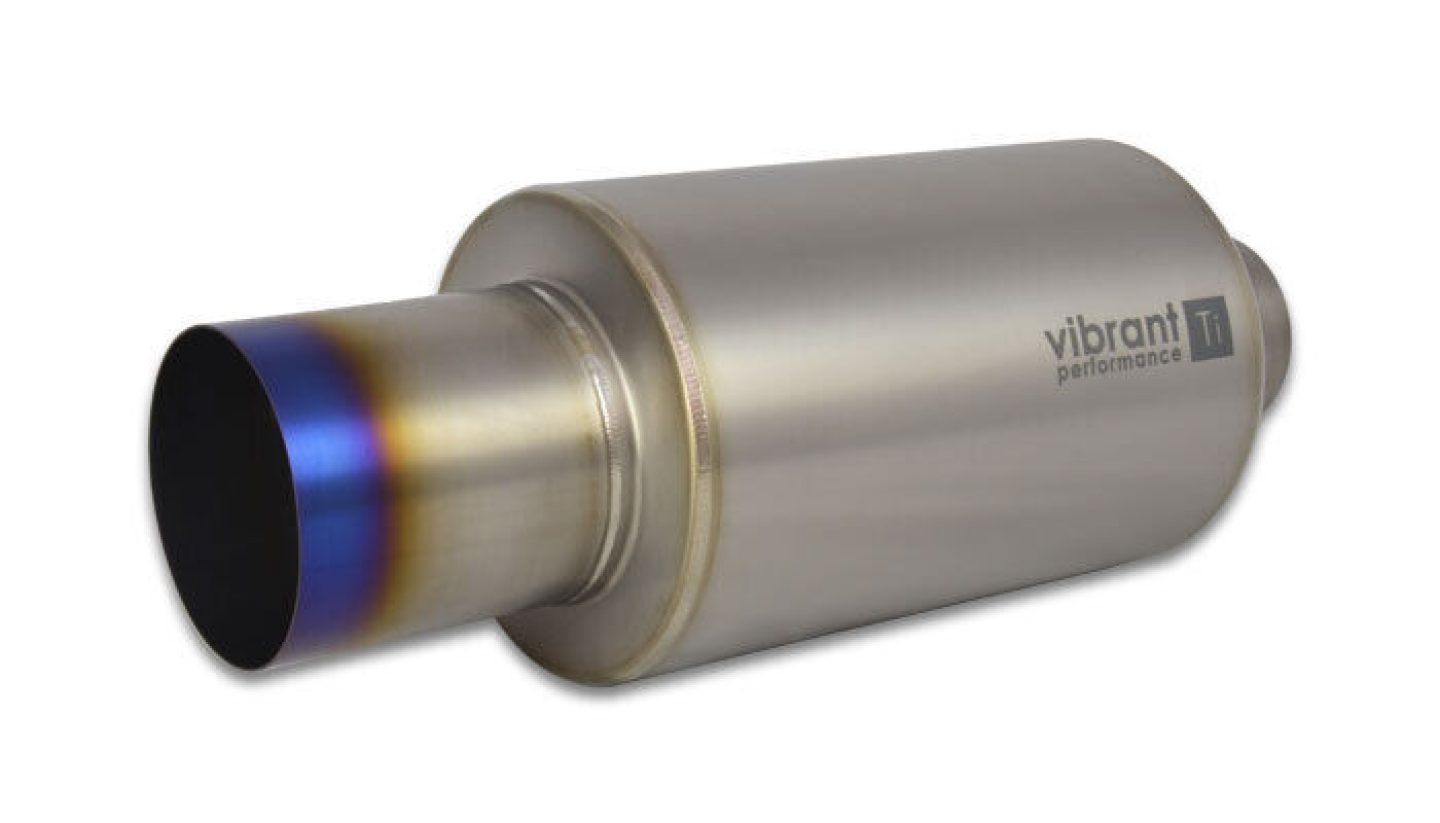

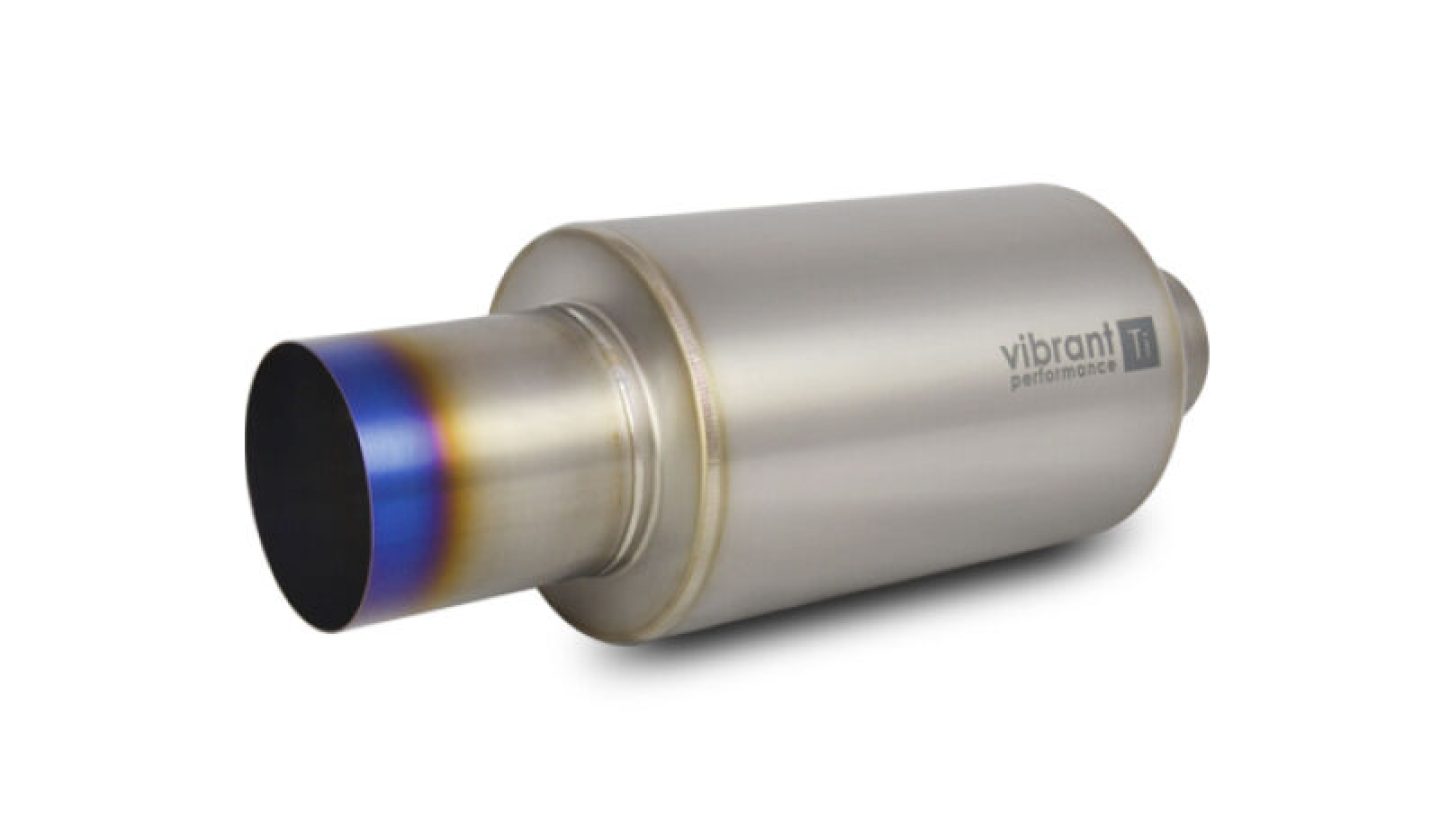

Vibrant Performance Titanium mufflers and resonators are manufactured entirely from CP1 grade titanium for the utmost in strength, low weight and durability. Our True Straight Through perforated titanium core ensures unrestricted exhaust flow. They are available from muffler inlet diameters ranging from 2.5" to 3.5" and resonator inlet diameters ranging from 2.5" to 4".
Additional Information
Muffler Strap Clamp; with Straight Cut Burnt Tip; 3.50 in. Inlet;
Application Summary
Universal
Part Type
Exhaust Muffler
Product Overview
Vibrant Performance Titanium mufflers and resonators are manufactured entirely from CP1 grade titanium for the utmost in strength, low weight and durability. Our âTrue Straight Throughâ perforated titanium core ensures unrestricted exhaust flow. They are available from muffler inlet diameters ranging from 2.5â to 3.5â and resonator inlet diameters ranging from 2.5â to 4â.
Features and Benefits
- Can withstand the rigors of racing
- Muffler Strap Clamp
- Durable and ultra-lightweight
- Ideal strength to weight ratio makes it the perfect choice for professional fabricators
- Manufactured entirely from CP1 Grade Titanium
Product Details
| Body Length: | 10.000 in. |
| Description: | Muffler |
| Finish: | Raw |
| Inlet (in): | 3.5 |
| Inlet (mm): | 88.90 |
| Inlet I.D.: | 3.5 |
| Inlet Imperial: | 3.5in |
| Inlet Inside Diameter: | 3.500 in. |
| Inlet Metric: | 88.9mm |
| Material: | Titanium |
| Muffler Body Length (in): | 10 |
| Muffler Body Length (mm): | 254 |
| Muffler Body Length Imperial: | 10in |
| Muffler Body Length Metric: | 254mm |
| Muffler Body Length: | 10 |
| Muffler Body O.D.: | 6.25 |
| Muffler Body OD (in): | 6.3 |
| Muffler Body OD (mm): | 160.02 |
| Muffler Body OD Imperial: | 6.3in |
| Muffler Body OD Metric: | 160.02mm |
| Muffler Shape: | Round |
| Outlet (in): | 3.5 |
| Outlet (mm): | 88.90 |
| Outlet Imperial: | 3.5in |
| Outlet Metric: | 88.9mm |
| Overall Length (in): | 17 |
| Overall Length (mm): | 431.8 |
| Overall Length Impreial: | 17in |
| Overall Length Metric: | 431.8mm |
| Overall Length: | 17.000 in. |
| Part Number: | vib17564 |
| Sale Segment: | Titanium Program |
| Shape: | Straight |
| Tip Finish: | Blue Ti Finish |
| Tip Length (in): | 4.5 |
| Tip Length (mm): | 114.3 |
| Tip Length Imperial: | 4.5in |
| Tip Length Metric: | 114.3mm |
| Tip O.D.: | 4 |
| Tip OD (in): | 4 |
| Tip OD (mm): | 101.6 |
| Tip OD Imperial: | 4in |
| Tip OD Metric: | 101.6mm |
| Tip Style: | Straight Cut, Burnt Tip |
| Web Category: | Titanium Mufflers and Resonators |
| Weight: | 4.23 |
Product Downloads
| # | Document Type | Download |
| 1. | Catalog |  |
