Oil Cooler Adapter - Sandwich Adapter - Bolt-On - 18 mm x 1.50 / 20 mm x 1.50 / 22 mm x 1.50 / 3/4-16 in / 13/16-16 in Center Thread - 10 AN Male Inlet - 10 AN Male Outlet - Aluminum - Black Anodized - Each

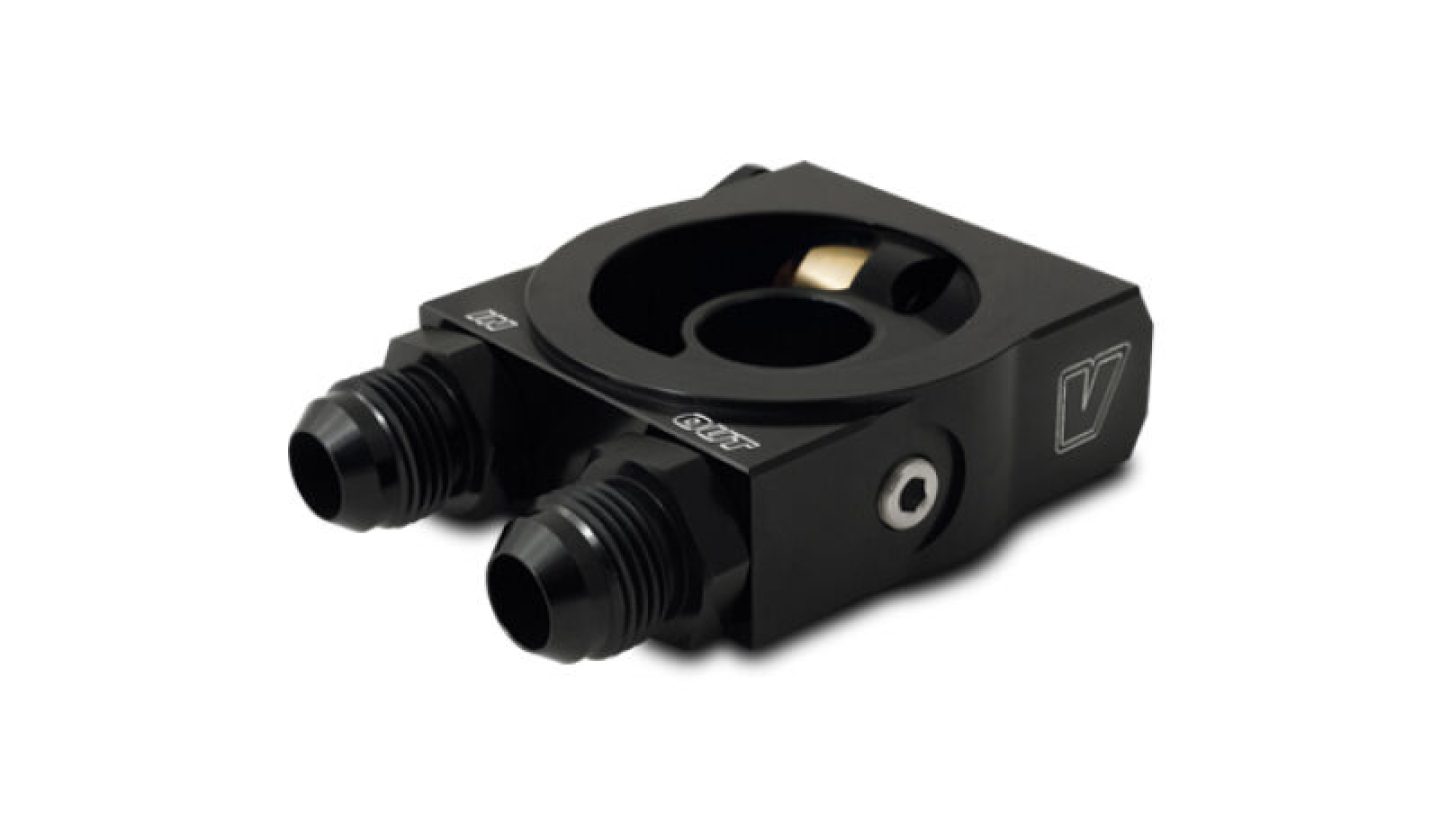

Vibrant Thermostatic Oil Cooler Sandwich Adapter w/Thermostat

Vibrant's Thermostatic Oil Sandwich Adapter comes tapped with -10 ORB inlet/outlet ports, includes a pair of -10 AN Male Flare adapter fittings and five (5) Oil Filter adapter bolts (M18 x 1.5, M20 x 1.5, M22 x 1.5, 3/4"-16 and 13/16"-16).

Part Type

Engine Oil Filter Adapter

Important Note Regarding Oils, Additives, Aerosols & Liquids

This listing may contain a product with transport restrictions. Items containing oils, additives, aerosols, adhesive or other liquid/chemical-based products may be subject to shipping restrictions depending on their current warehouse location, carrier requirements, and applicable transport regulations.

Some liquid and aerosol products are restricted for air freight or certain road freight routes and may require alternative transport methods or dispatch from a specific warehouse. While the majority of these items ship without issue, these factors can occasionally affect available shipping options or delivery timeframes.

If you are working to a tight deadline, require urgent delivery, or are unsure whether a product can be shipped to your location, we recommend contacting the StreetFX team prior to placing your order so we can confirm availability and the most suitable freight option.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Catalog

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Oil Filter Adapter, Sandwich, Aluminum, Black Anodized, Thermostatic, -10 AN Inlet and Outlet, Kit

Vibrant Performance thermostatic oil cooler sandwich adapter kits make adding an oil cooler easy. Not all factory vehicles have an oil cooler. As a result, it doesn't take much to push engine oil to the brink of overheating when racing or towing. Vibrant's new oil cooler sandwich adapters bypass hot oil through a cooling loop to help keep your critical engine oil temperatures under control. They also allow you to retain your stock oil filter location.

The integrated thermostat reduces warm-up time by keeping the bypass closed until the oil reaches 180 degrees F. These adapters come with a variety of common oil filter adapter nipples are available with or without a 1 in. spacer. To top things off, Vibrant Performance thermostatic oil cooler sandwich adapter kits have 1/8 in. NPT ports to run a pressure sensor or oil temperature sensor.
