Description

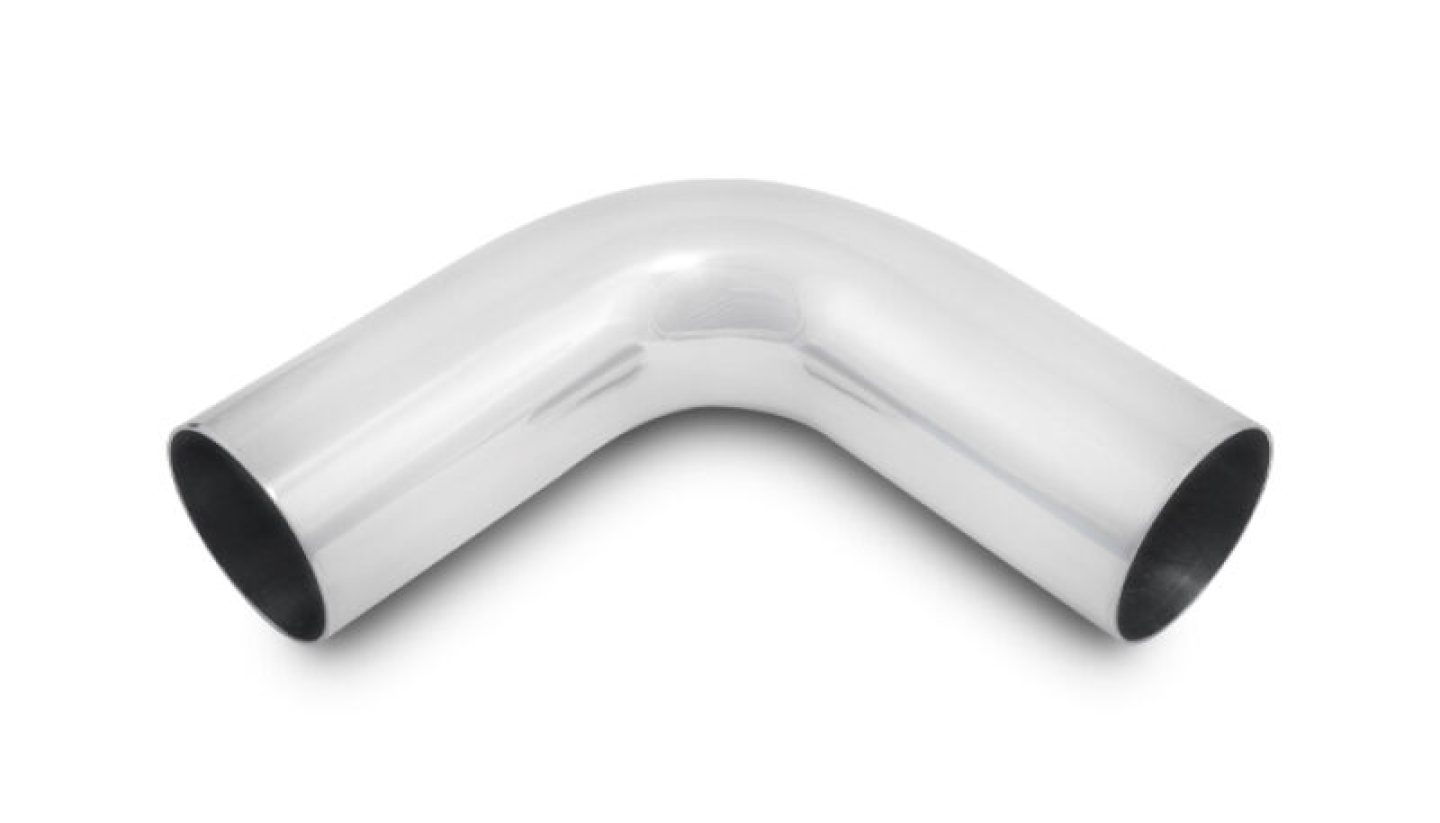

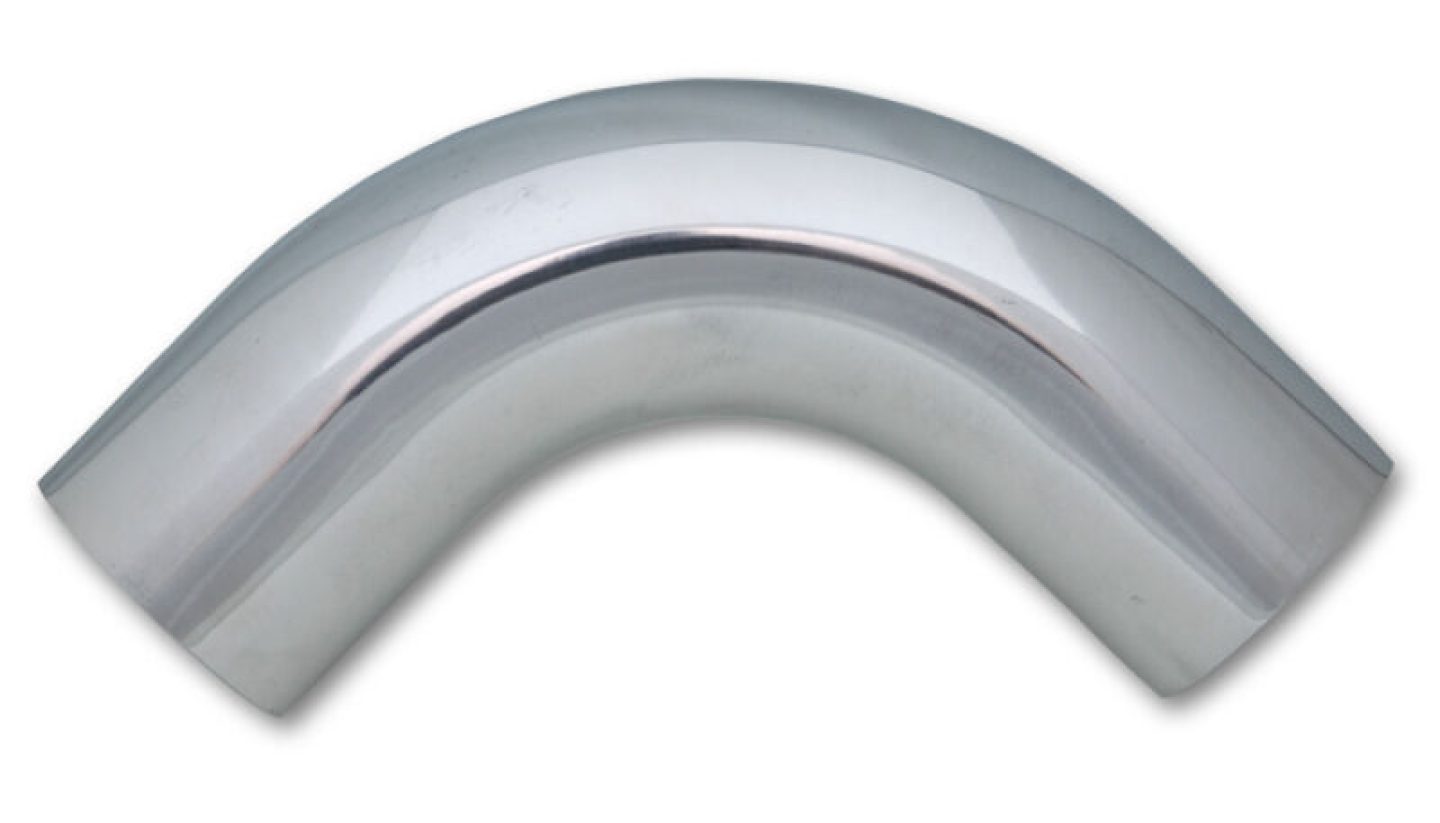

Aluminum Tubing Bend - 90 Degree - Mandrel - 5 in Diameter - 7 in Radius - 4 in Legs - 2.4 mm Thickness - Aluminum - Polished - Each
Vibrant 5in OD T6061 Aluminum Mandrel Bend 90 Degree - Polished
Vibrant Performance offers a complete range of lightweight, top quality 6063 Aluminum Tubing available in a wide array of sizes ranging from 3/4 to 5" (19mm to 127mm) O.D. Our Aluminum Tubing comes in a variety of bend configurations (30 to 180 degrees) and are suitable for use in both pressurized and naturally aspirated applications. The Vibrant Performance Aluminum Tubing program is the trusted choice of professionals in many market segments.
Part Type
Tubing
Product Overview
Vibrant Performance offers a complete range of lightweight, top quality 6063 Aluminum Tubing available in a wide array of sizes ranging from 3/4 in. to 5 in. (19mm to 127mm) O.D. Our Aluminum Tubing comes in a variety of bend configurations (30 to 180 degrees) and are suitable for use in both pressurized and naturally aspirated applications. The Vibrant Performance Aluminum Tubing program is the trusted choice of professionals in many market segments.
Features
- Constructed from 6061 aluminum
- Fabricators can count on material consistency and dimensional accuracy
- Mirror polished
- Requires minimal preparation for welding and fabrication
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Product Details
| Bend (dd): | 90 |
| Bend Angle: | 90 |
| Bend Degree: | 90deg |
| CLR (in): | 7 |
| Center Line Radius: | 7.000 in. |
| Centerline Radius: | 7 |
| Description: | 90 Degree Aluminum Bend |
| Finish: | Polished Aluminum |
| Gauge: | 16 |
| Inlet Diameter: | 5.000 in. (127mm) |
| Inlet ID (in): | 5 |
| Inlet ID (mm): | 127 |
| Leg Length (in): | 4 |
| Leg Length (mm): | 101.6 |
| Leg Length From Tangent: | 4 |
| Leg/Straight Length: | 4.000 in. |
| Material: | Aluminum |
| Outlet Diameter: | 5.000 in. |
| Outlet ID (in): | 5 |
| Outlet ID (mm): | 127 |
| Outside Diameter: | 5.000 in. |
| Part Number: | vib2976 |
| Sale Segment: | Aluminum Tubing |
| Size: | 5in |
| Thickness: | 16 Gauge |
| Tube O.D.: | 5 |
| Wall Thickness: | 2.4 |
| Web Category: | Aluminum Tubing, Bends and Accessories |
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Catalog |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Vibrant, Vibrant Performance |
| StreetFX SKU | vib2976 |
| SFX Item ID | 4088322 |
| Accounting SKU | vib-2976 |
| Manufacturer SKU | 2976 |
| Manufacturer UPC | 690092165093 |
| Alternative References | 2976, VPE-2976 |
Air Intake Tubes, Aluminum Tubing, 90 degree Elbow, Aluminum, Polished, 7.000 in. Radius, 5.000 in. Diameter, 4.000 in. Leg Length, Each
Vibrant Performance aluminum tubing brings your engine compartment to life! Their mirror-polished T-6061 aluminum mandrel-bent U-bends, elbows, and straights help you to fabricate your own custom, lightweight intercooler plumbing and air intake assemblies. Vibrant offers their aluminum tubing in a variety of lengths and O.D. sizes—and they're easy to weld. Create a show under your hood with the selection of beautiful aluminum tubing from Vibrant Performance!
| Product Attributes | |
|---|---|
| Brand | Vibrant Performance |
| Manufacturer's Part Number | 2976 |
| Part Type | Air Intake Tubes |
| Product Line | Vibrant Performance Aluminum Tubing |
| UPC | 690092165093 |
| Air Intake Tube Style | 90 degree elbow |
| Air Intake Tube Material | Aluminum |
| Air Intake Tube Color | Polished |
| Air Intake Tube Diameter (in.) | 5.00 |
| Air Intake Tube Radius (in.) | 7.00 |
| Insulated | No |
| Quantity | Sold individually. |
| Notes | This tube has a leg length of 4.000.in. |
| Manufacturer Attributes | |
|---|---|
| Bend Angle | 90 |
| Centerline Radius | 7 |
| Finish | Polished |
| Leg Length From Tangent | 4 |
| Tube O.D. | 5 |
| Wall Thickness | 2.4 |
| Material | 6063 Aluminum |
| Sale Segment | Aluminum Tubing |
| Web Category | Aluminum Tubing, Bends and Accessories |
| Manufacturer Designation | 90 Degree Aluminum Bend, 5" O.D. - Polished |
| Product Class | Tubing |
| Construction/Type | 90 Degree Aluminum Bend, 5" O.D. - Polished |
| Product Outline | Constructed from 6061 aluminum Fabricators can count on material consistency and dimensional accuracy Mirror polished Requires minimal preparation for welding and fabrication |
| Vehicle Brief | AL AIR INTAKE TUBE |
| Market Description | Vibrant Performance offers a complete range of lightweight, top quality 6063 Aluminum Tubing available in a wide array of sizes ranging from 3/4 to 5" (19mm to 127mm) O.D. Our Aluminum Tubing comes in a variety of bend configurations (30 to 180 degrees) and are suitable for use in both pressurized and naturally aspirated applications. The Vibrant Performance Aluminum Tubing program is the trusted choice of professionals in many market segments. |
