Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

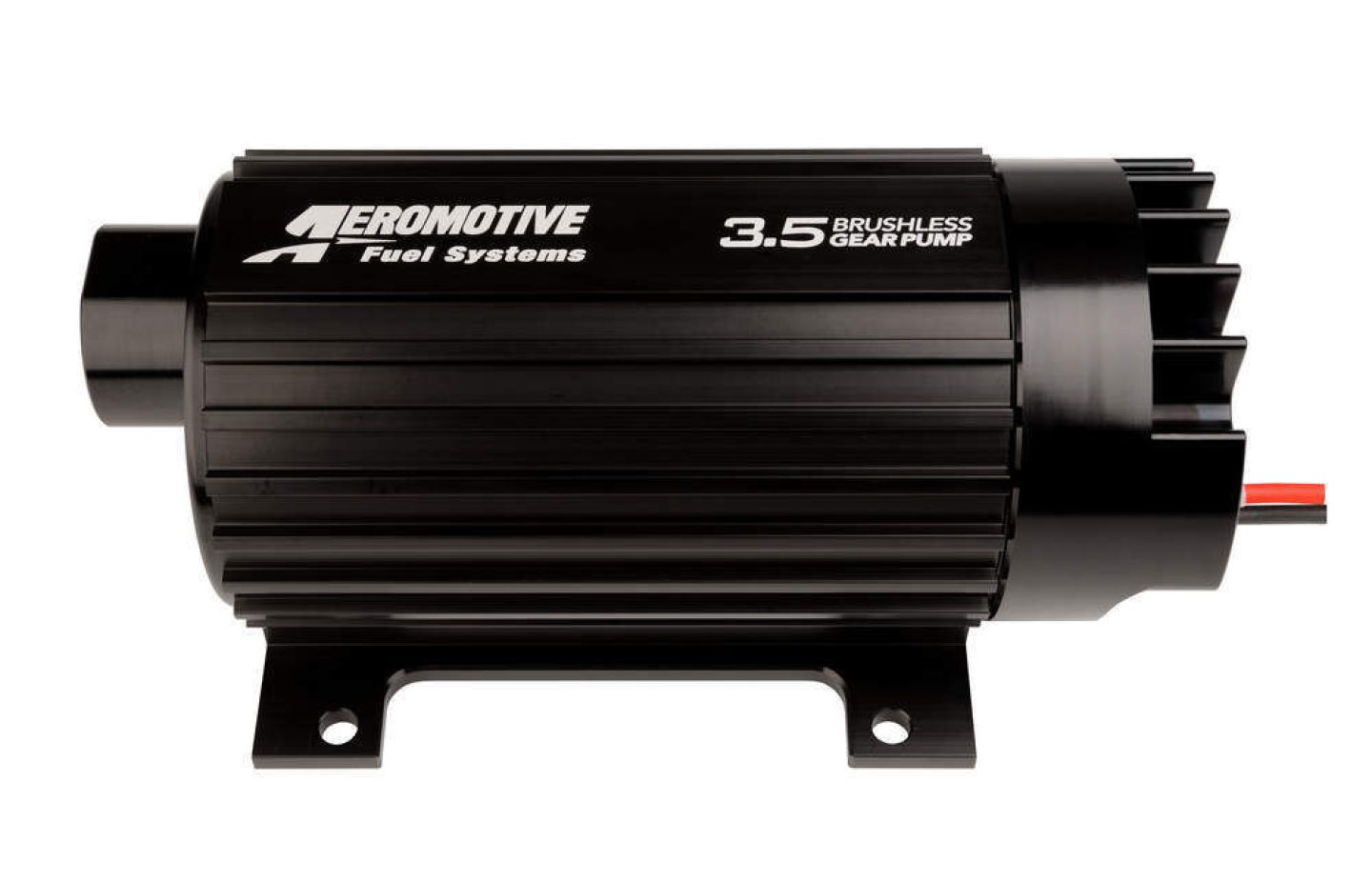

Fuel Pump, In-Line, Signature Brushless Spur Gear, 3.5gpm (Pump Sleeve Includes Mounting Provisions).
Fuel Pump

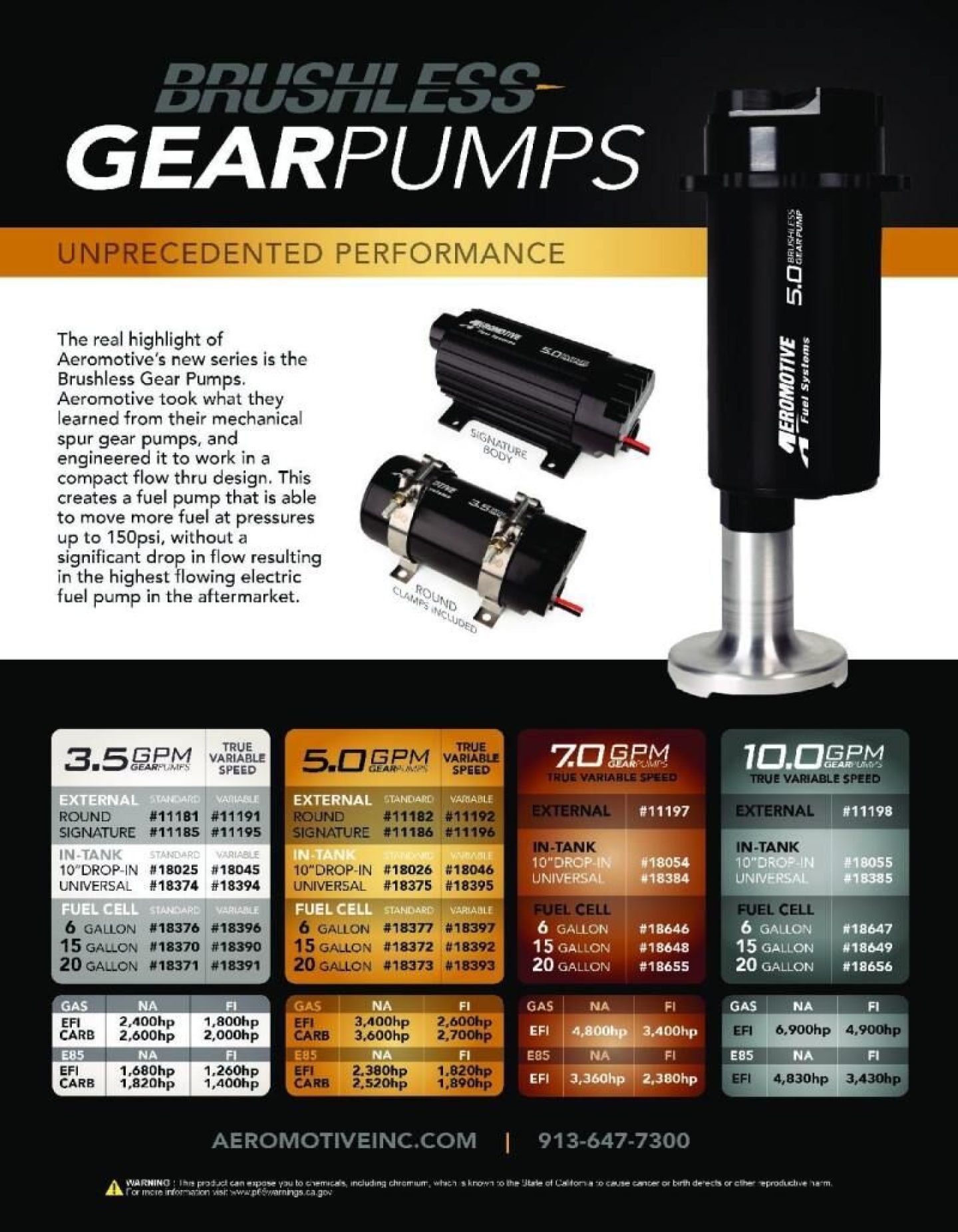

Aeromotive Pro-Series 3.5 gpm brushless gear pumps are engineered from the ground up for winning performance. These efficient pumps utilize a spur gear design, paired with a brushless motor, to deliver 3.5 gpm at 60 psi. Their inline flow-through design features contoured port machining and no shaft seals—while offering low-amp draw, excellent heat dissipation, and high-pressure capabilities. Lots of power needs lots of fuel; Aeromotive 3.5 gpm brushless gear pumps will feed your hungry high performance machine. Choose the body style you prefer.
UPC | 00684980009040 |
Brand | Aeromotive |
Notes | Not compatible with pulse modulated systems or fuel pump speed controllers.Pump has mounting feet. |
Quantity | Sold individually. |
Flow Rate | 3.5 gpm |
Part Type | Fuel Pumps |
Product Line | Aeromotive 3.5 GPM Brushless Gear Pumps |
Fuel Pump Type | Electric external |
Inlet Quantity | 1 |
Gasket Included | No |
Outlet Quantity | 1 |
Pulley Included | No |
Inlet Attachment | Female straight cut O-ring |
Fuel Pump Voltage | 12 V |
Outlet Attachment | Female straight cut O-ring |
Fuel Pressure (psi) | 90 psi |
Fuel Pump Inlet Size | -12 AN |
Fuel Pump Outlet Size | -10 AN |
Sending Unit Included | No |
Wiring Harness Included | No |
Mounting Bracket Included | No |
Summit Racing Part Number | AEI-11185 |
Manufacturer's Part Number | 11185 |
Mounting Hardware Included | No |
Fuel Pressure Regulator Included | No |
Compatibility & Application Information | |
---|---|
Universal | Yes |
Fuel Type | FLEX |
Universal | Yes |
Fuel Type | GAS |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
