Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

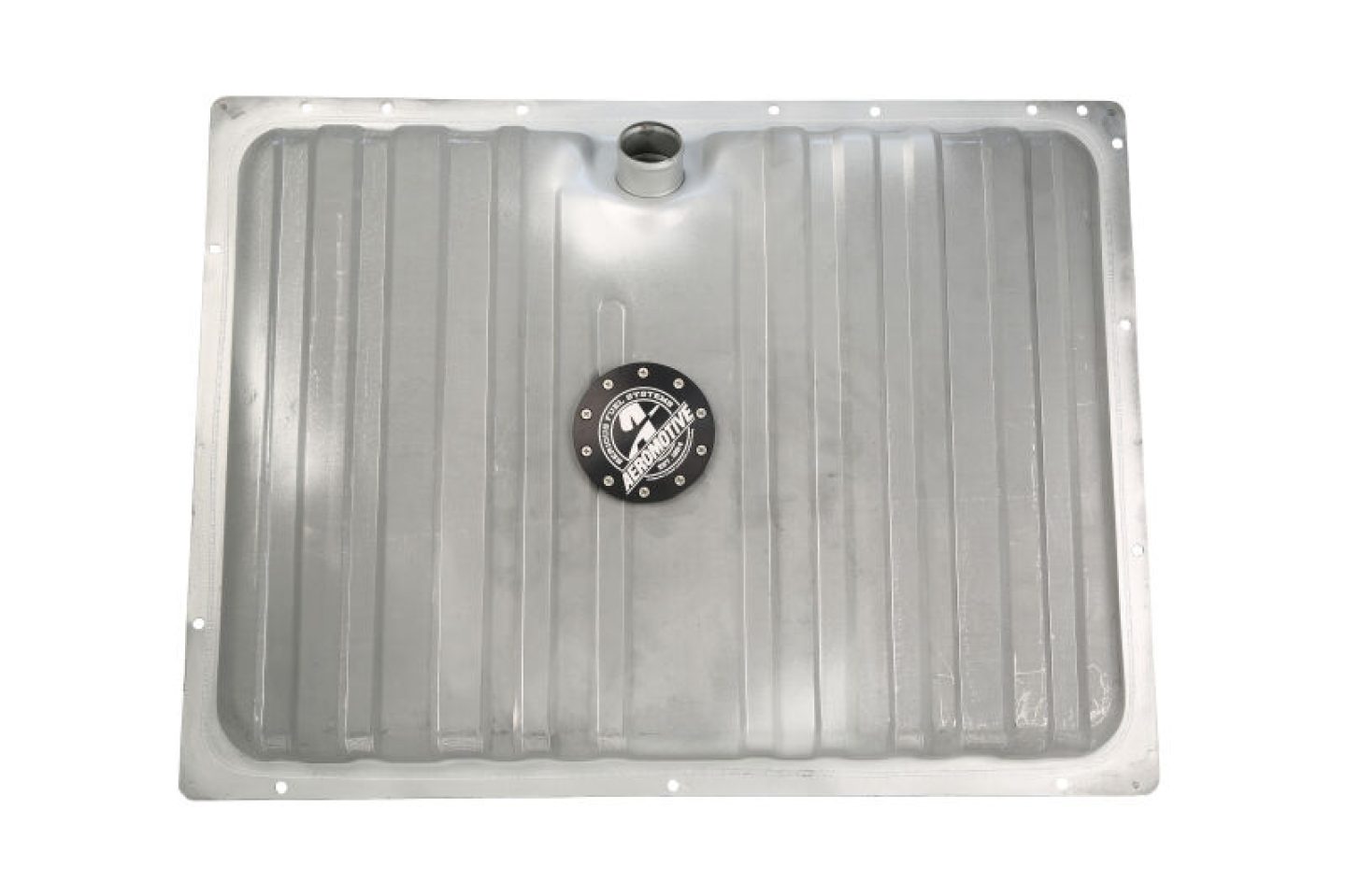

Fuel Tank, 200 Stealth Gen 2, Universal, 64-68 Ford Mustang
Fuel Tank

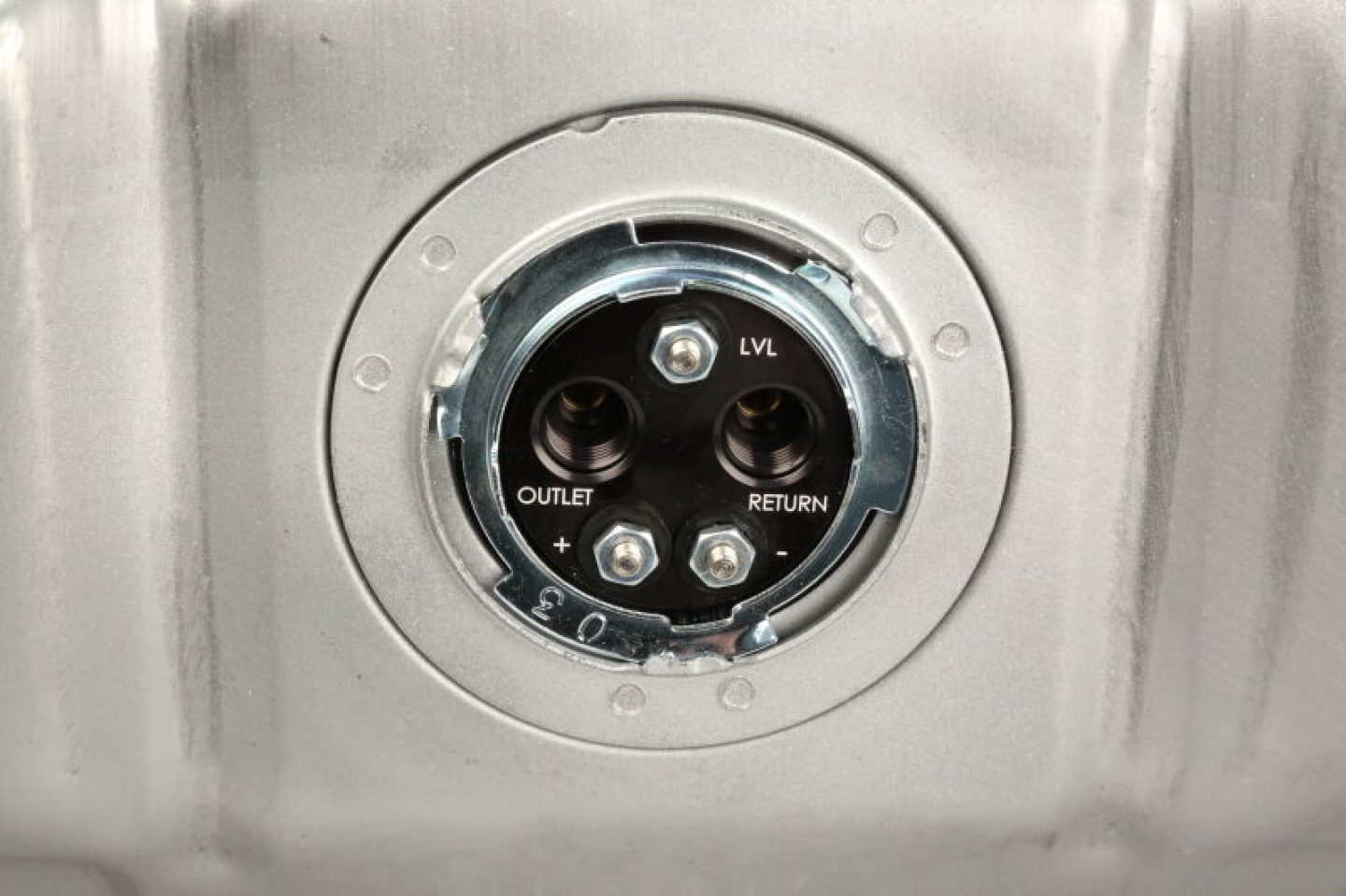

Aeromotive Gen II Stealth fuel tanks utilize patented and award-winning Phantom technology. This enables a quiet, high-flow EFI pump and baffle to maintain ample fuel supply around the inlet of the pump—which, in turn, ensures consistent fuel delivery and drivability even in low fuel conditions. The tanks feature outlet and return ports, along with electrical terminals positioned in the OEM location. This design enables flush installation to the vehicle floor and will not require strap modification or spacers. All Gen II Stealth tanks come out of the box completely assembled. The fuel pump, fuel level sending unit, and fuel/electrical bulkhead are pre-installed. As a true plug-and-play assembly, an Aeromotive Gen II Stealth tank will get you out of the garage and on the road in no time. Order the model recommended for fitment on your vehicle.
UPC | 00684980009484 |
Brand | Aeromotive |
Notes | Tank ships ready for installation into vehicle, no assembly required. Pump includes two ports, one outlet and one inlet for a return line. |
Quantity | Sold individually. |
Flow Rate | 53 gph/200 lph |
Part Type | Fuel Tanks |
Baffled Sump | Yes |
Product Line | Aeromotive Gen II Stealth Fuel Tanks |
Fuel Tank Color | Silver painted |
Outlet Quantity | 1 |
Fuel Pump Included | Yes |
Fuel Tank Capacity | 16 gallons |
Fuel Tank Material | Steel |
Fuel Tank Width (in.) | 41.00 |
Sending Unit Included | Yes |
Fuel Tank Height (in.) | 10.00 |
Fuel Tank Length (in.) | 22.00 |
Lock Ring Kit Included | Yes |
Mounting Strap Included | No |
Fuel Sump Welded on Tank | No |
Summit Racing Part Number | AEI-18197 |
Manufacturer's Part Number | 18197 |
Mounting Hardware Included | No |
Compatibility & Application Information | |
---|---|
Make | FORD |
Model | MUSTANG |
Submodel | BASE |
Beginning Year | 1964 |
Ending Year | 1965 |
Engine Type | L6 |
Drivetrain | RWD |
Engine Family | Ford inline 6-cylinder |
Engine Size | 2.8L/170 |
Make | FORD |
Model | MUSTANG |
Submodel | BASE |
Beginning Year | 1964 |
Ending Year | 1965 |
Engine Type | V8 |
Drivetrain | RWD |
Engine Family | Ford small block Windsor |
Engine Size | 4.3L/260 |
Make | FORD |
Model | MUSTANG |
Submodel | BASE |
Beginning Year | 1964 |
Ending Year | 1968 |
Engine Type | L6 |
Drivetrain | RWD |
Engine Family | Ford inline 6-cylinder |
Engine Size | 3.3L/200 |
Make | FORD |
Model | MUSTANG |
Submodel | BASE |
Beginning Year | 1964 |
Ending Year | 1968 |
Engine Type | V8 |
Drivetrain | RWD |
Engine Family | Ford small block Windsor |
Engine Size | 4.7L/289 |
Make | FORD |
Model | MUSTANG |
Submodel | BASE |
Beginning Year | 1967 |
Ending Year | 1968 |
Engine Type | V8 |
Drivetrain | RWD |
Engine Family | Ford big block FE |
Engine Size | 6.4L/390 |
Make | FORD |
Model | MUSTANG |
Submodel | BASE |
Beginning Year | 1968 |
Ending Year | 1968 |
Aeromotive 64-68 Ford Mustang 200 Stealth Gen 2 Fuel Tank | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1964 | Ford | Mustang | Base | |
1965 | Ford | Mustang | Shelby GT-350 | |
1965 | Ford | Mustang | Base | |
1966 | Ford | Mustang | Base | |
1966 | Ford | Mustang | Shelby GT-350 | |
1966 | Ford | Mustang | Shelby GT-350H | |
1967 | Ford | Mustang | Base | |
1967 | Ford | Mustang | Shelby GT-350 | |
1967 | Ford | Mustang | Shelby GT-500 | |
1968 | Ford | Mustang | Base | |
1968 | Ford | Mustang | Shelby GT-500 | |
1968 | Ford | Mustang | Shelby GT-500KR | |
1968 | Ford | Mustang | Shelby GT-350 |
