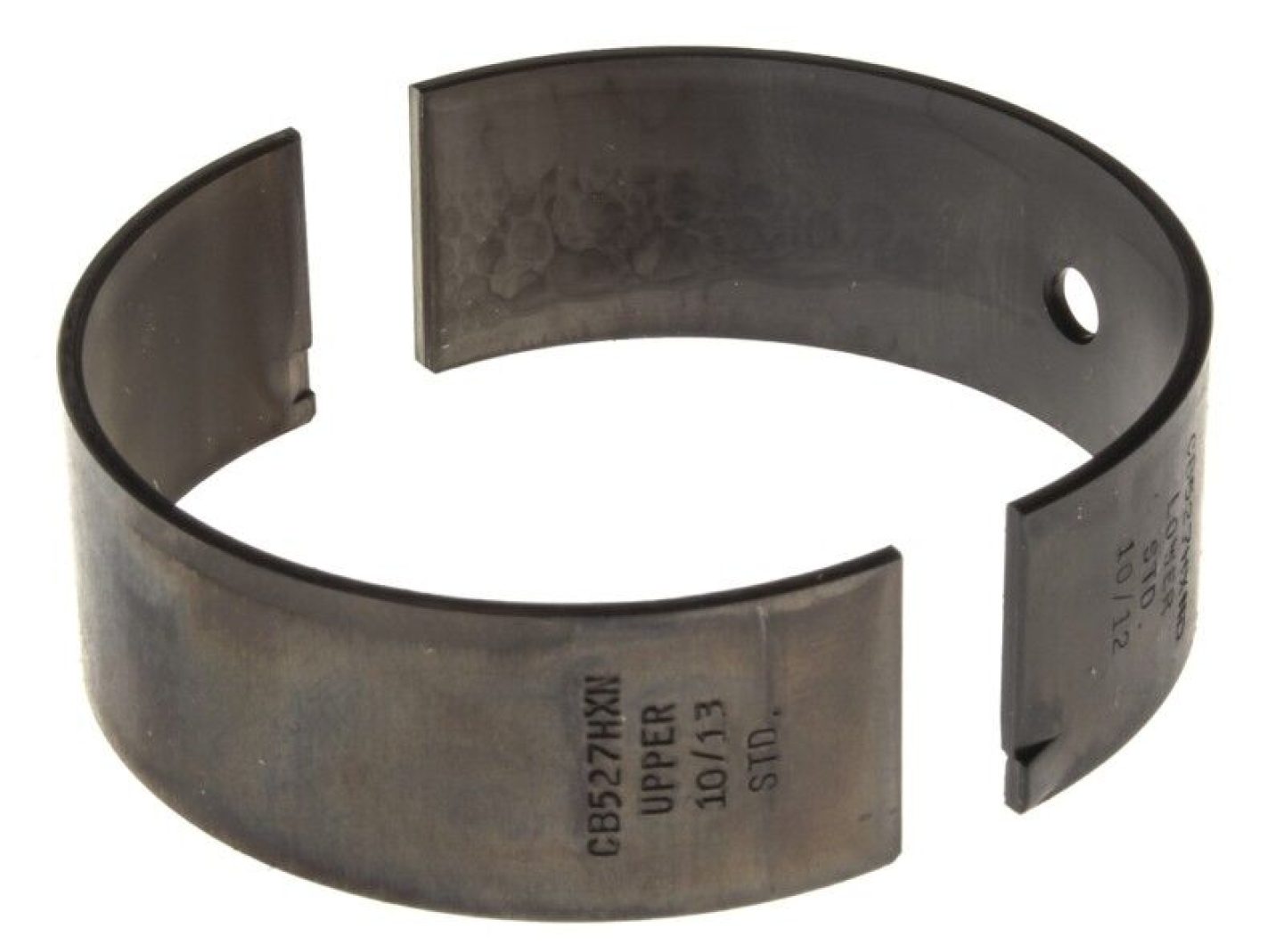

Rod Bearing, H Series, .001 in. Thinner, TM-77, Chrysler, Dodge, Plymouth, 350-440, B, RB, Each
Clevite H-Series rod bearings were developed primarily for use in NASCAR type racing but are suitable for all types of competition engines. These H-Series bearings have a medium level of eccentricity, high crush factor, and have hardened steel backs and thin overlays. They also have enlarged chamfers for greater crankshaft fillet clearance and are made without flash plating for better seating. Bearings with .001 in. extra clearance are available for standard size shafts and with or without dowel holes. H-Series bearings are recommended for use with crankshafts that have oversize fillets and where engines run in the medium to high rpm range. They should also be used if contact patterns obtained with Clevite P-Series bearings are too narrow. Contact patterns should ideally cover 2/3 to 3/4 of the bearing surface.
| Product Attributes |
|---|
| Brand | Clevite Engine Parts |
| Manufacturer's Part Number | CB-527HXND |
| Part Type | Rod Bearings |
| Product Line | Clevite H-Series Rod Bearings |
| UPC | 027067536938 |
| Bearing Usage | Performance |
| Engine Crankshaft Undersize (in.) | Stock |
| Engine Crankshaft Undersize (mm) | Stock |
| Bearing Material | Tri-metal, TM-77 |
| Dowel Pin Hole | Yes |
| Narrow Bearing | Yes |
| Quantity | Sold individually. |
| Notes | Bearings have a .0005 in. thinner wall for .001 in. extra oil clearance. |
