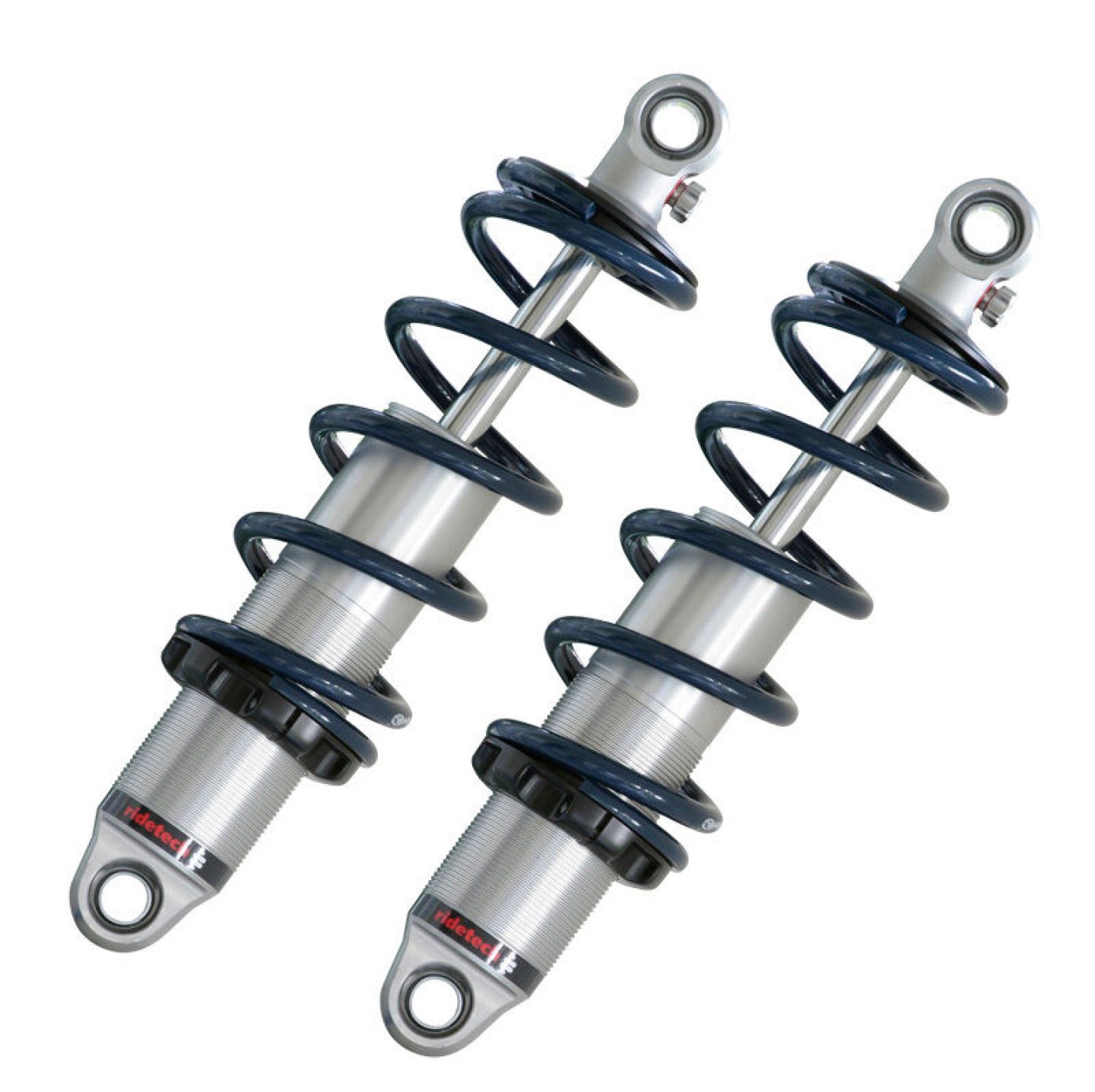

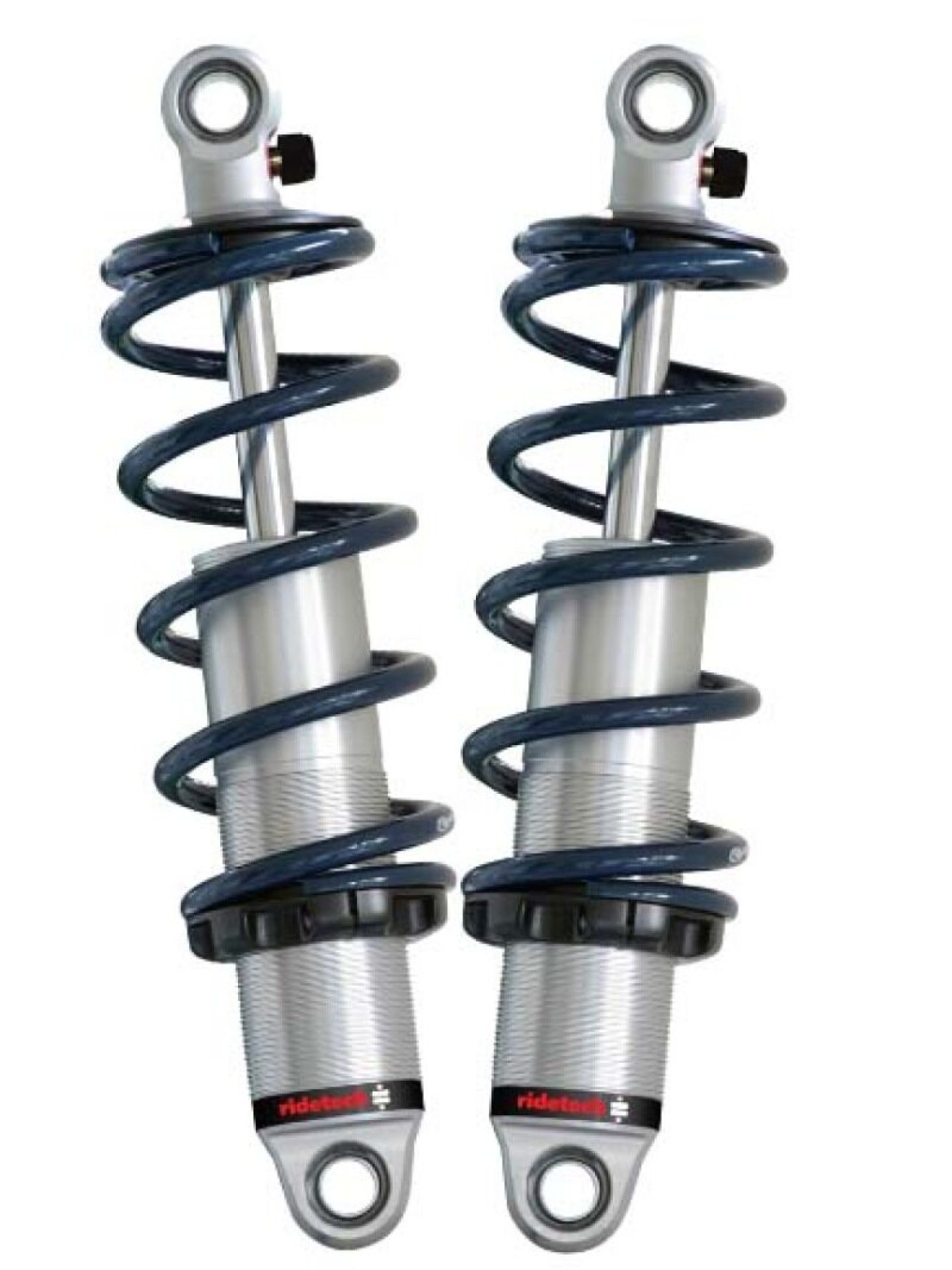

Rear HQ Coil-Overs 1967-1969 GM F-Body . For use with Ridetech 4-Link. Includes a pair of rebound adjustable shocks, springs, spring mounts and delrin spring washers.
1967-1969 Camaro & Firebird
Coilover Spring and Shock Assembly

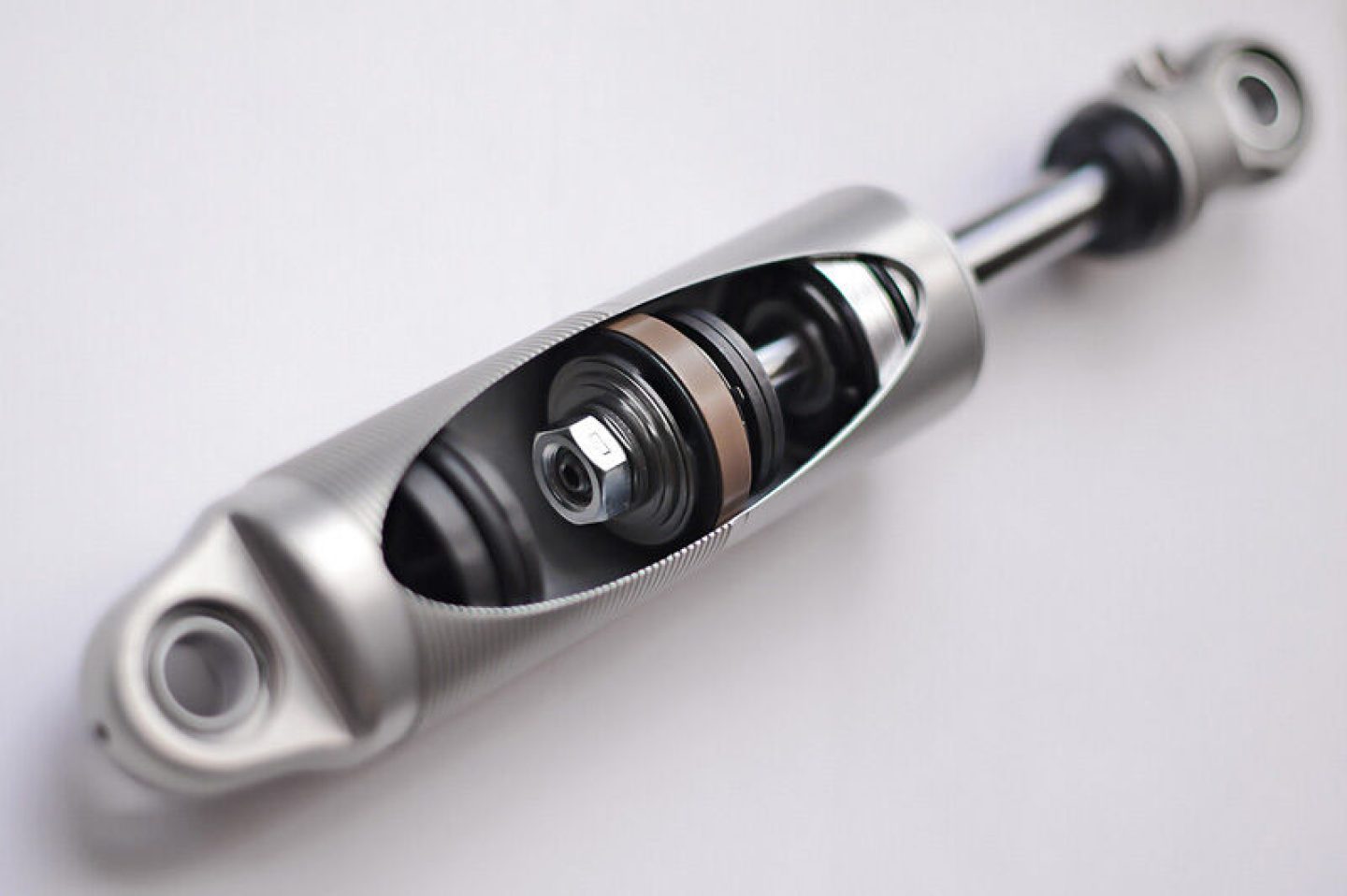

RideTech HQ Series 4-Link coilovers feature a monotube gas pressure design that offers fade-free performance. Their springs are made of high-tensile premium steel that's CNC cold-wound. They weigh less, are more resistant to bowing, and have increased travel with a durable powdercoated finish. Machined from impact-forged aluminum for superior strength, these shocks feature a large piston that provides outstanding ride quality, a double-sealed rod guide with a dust cover that eliminates oil leakage, and an anodized finish that protects against corrosion. RideTech HQ Series 4-Link coilovers give hot rodders the ultimate in ride quality, handling, and performance. Order the kit designed for fitment on your vehicle application.
Brand | RideTech |
Notes | This coil-over kit is designed to be used with Ridetech Airbar 4-link kit part number ART-11167199. |
Quantity | Sold as a kit. |
Part Type | Coilover Kits |
Gas Charged | Yes |
Lower Mount | Eyelet |
Upper Mount | Eyelet |
Product Line | RideTech HQ Series 4-Link Coilovers |
Bushing Color | Natural |
Spring Finish | Black |
Internal Design | Monotube |
Shocks Included | Yes |
Bushing Material | Spherical bearing |
Welding Required | No |
Hardware Included | Yes |
Shock Body Finish | Clear anodized |
Adjustable Valving | Yes |
Shock Body Material | Aluminum |
Crossmember Included | No |
Coilover Kit Position | Rear |
Extended Length (in.) | 16.42 |
Spring Rate (lbs/in.) | 200 lbs./in. |
Collapsed Length (in.) | 11.85 |
Coilover Springs Included | Yes |
Summit Racing Part Number | ART-11166510 |
Manufacturer's Part Number | 11166510 |
Number of Valving Selections | 24 |
Adjustable Mounting Bracket Included | No |
Compatibility & Application Information | |
---|---|
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1967 |
Ending Year | 1967 |
Engine Type | V8 |
CC | 6489 |
CID | 396 |
Liter | 6.5 |
Engine Size | 6.5L/396 |
Engine Family | Chevy big block Mark IV |
Drivetrain | RWD |
Application Notes | For use with RideTech 4 Link |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1967 |
Ending Year | 1969 |
Engine Type | L6 |
CC | 3769 |
CID | 230 |
Liter | 3.8 |
Engine Size | 3.8L/230 |
Engine Family | GM inline 6-cylinder |
Drivetrain | RWD |
Application Notes | For use with RideTech 4 Link |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1967 |
Ending Year | 1969 |
Engine Type | L6 |
CC | 4097 |
CID | 250 |
Liter | 4.1 |
Engine Size | 4.1L/250 |
Engine Family | GM inline 6-cylinder |
Drivetrain | RWD |
Application Notes | For use with RideTech 4 Link |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1967 |
Ending Year | 1969 |
Engine Type | L6 |
CC | 4098 |
Ridetech 67-69 Camaro and Firebird Rear HQ Series CoilOver Pair | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1967 | Chevrolet | Camaro | Base | US |
1967 | Pontiac | Firebird | HO | US |
1967 | Pontiac | Firebird | 326 | US |
1967 | Pontiac | Firebird | 400 | US |
1967 | Chevrolet | Camaro | Z28 | US |
1967 | Pontiac | Firebird | Sprint | US |
1967 | Pontiac | Firebird | Base | US |
1967 | Chevrolet | Camaro | RS | US |
1967 | Chevrolet | Camaro | SS | US |
1968 | Chevrolet | Camaro | RS | US |
1968 | Chevrolet | Camaro | Base | US |
1968 | Pontiac | Firebird | Sprint | US |
1968 | Pontiac | Firebird | 350 | US |
1968 | Pontiac | Firebird | HO | US |
1968 | Pontiac | Firebird | Base | US |
1968 | Chevrolet | Camaro | Z28 | US |
1968 | Chevrolet | Camaro | SS | US |
1968 | Pontiac | Firebird | 400 | US |
1969 | Pontiac | Firebird | 350 | US |
1969 | Chevrolet | Camaro | Base | US |
1969 | Pontiac | Firebird | 400 | US |
1969 | Chevrolet | Camaro | Z28 | US |
1969 | Pontiac | Firebird | Trans Am | US |
1969 | Chevrolet | Camaro | RS | US |
1969 | Pontiac | Firebird | 350 HO | US |
1969 | Pontiac | Firebird | Sprint | US |
1969 | Chevrolet | Camaro | SS | US |
1969 | Pontiac | Firebird | Base | US |
