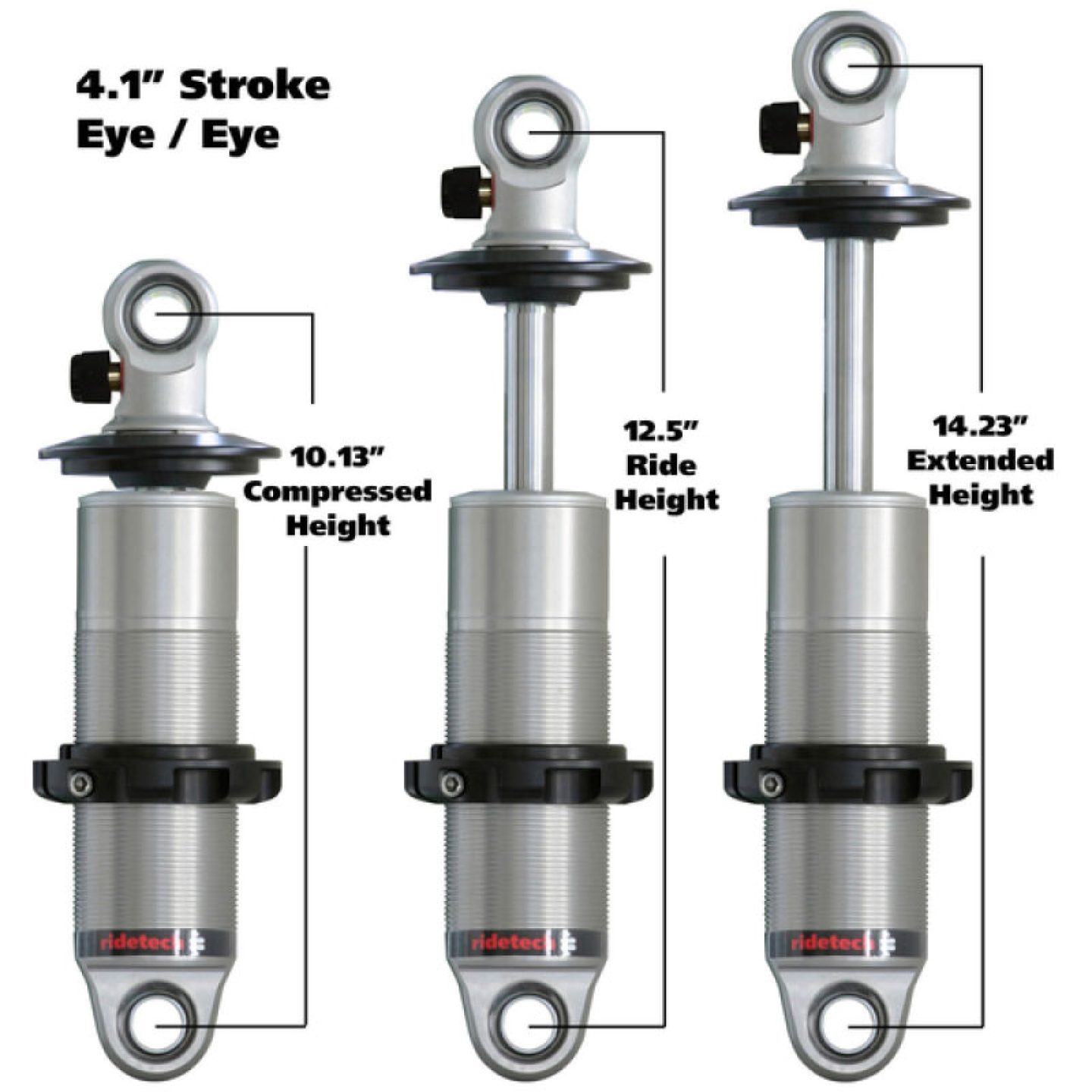

HQ Coil-Over shock with 4.1" stroke and 1.7" eye mount, universal. Includes 1 rebound adjustable shock, spring mounts, delrin spring washers and bearing spacers (1/2" and 5/8"). 10.1" x 14.25" with a 12.25"-12.5" ride height.
UNIVERSAL
Shock Absorber
Attention hot rodders: Grab the ultimate in ride quality, handling performance, technical support, and now, simplicity, with CoilRide suspension components from RideTech. At the heart of the RideTech CoilRide systems are their coilover shocks. They feature monotube gas pressure construction, which means that you get consistent performance and great ride quality. Crafted in the USA, these coilover shocks have larger pistons, double-sealed rod guides with dust covers, and 5/8 in. chrome shock shafts built inside of impact-forged anodized aluminum bodies. They offer superior strength, reliable service, outstanding ride quality, and superior fade-free performance. A unique pinch clamp height adjuster uses finer thread for easy adjustments, and the Kevlar®-lined bearings provide noise-free operation. Plus, CNC-machined billet hardware is included! Give your ride the only coilover shocks worthy of the RideTech name—CoilRide suspension components, available in a variety of length options.
Brand | RideTech |
Notes | Each shock includes 4 spacer/reducers each for .500 in. and or .625 in. mounting bolt. Recommended spring length can be up to 10 in. |
Quantity | Sold individually. |
Part Type | Coilover Shocks and Struts |
Gas Charged | Yes |
Lower Mount | Eyelet |
Upper Mount | Eyelet |
Product Line | RideTech CoilRide Coilover Shocks |
Bushing Color | Silver |
Internal Design | Monotube |
Bushing Material | Spherical bearing/Kevlar® |
Hardware Included | Yes |
Shock Body Finish | Clear anodized |
Adjustable Valving | Yes |
Body Diameter (in.) | 2.000 |
Coilover Shock Type | Single-adjustable |
Shock Body Material | Aluminum |
Extended Length (in.) | 14.25 |
Collapsed Length (in.) | 10.10 |
Coilover Springs Included | No |
Summit Racing Part Number | ART-24149901 |
Threaded Adjustment Range | 3.500 in. |
Manufacturer's Part Number | 24149901 |
Number of Valving Selections | 24 |
Recommended Spring Diameter (in.) | 2.50 in. |
Adjustable Mounting Bracket Included | No |
Recommended Maximum Spring Length (in.) | 8.00 in. |
Recommended Minimum Spring Length (in.) | 8.00 in. |
Compatibility & Application Information | |
---|---|
Universal | Yes |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
