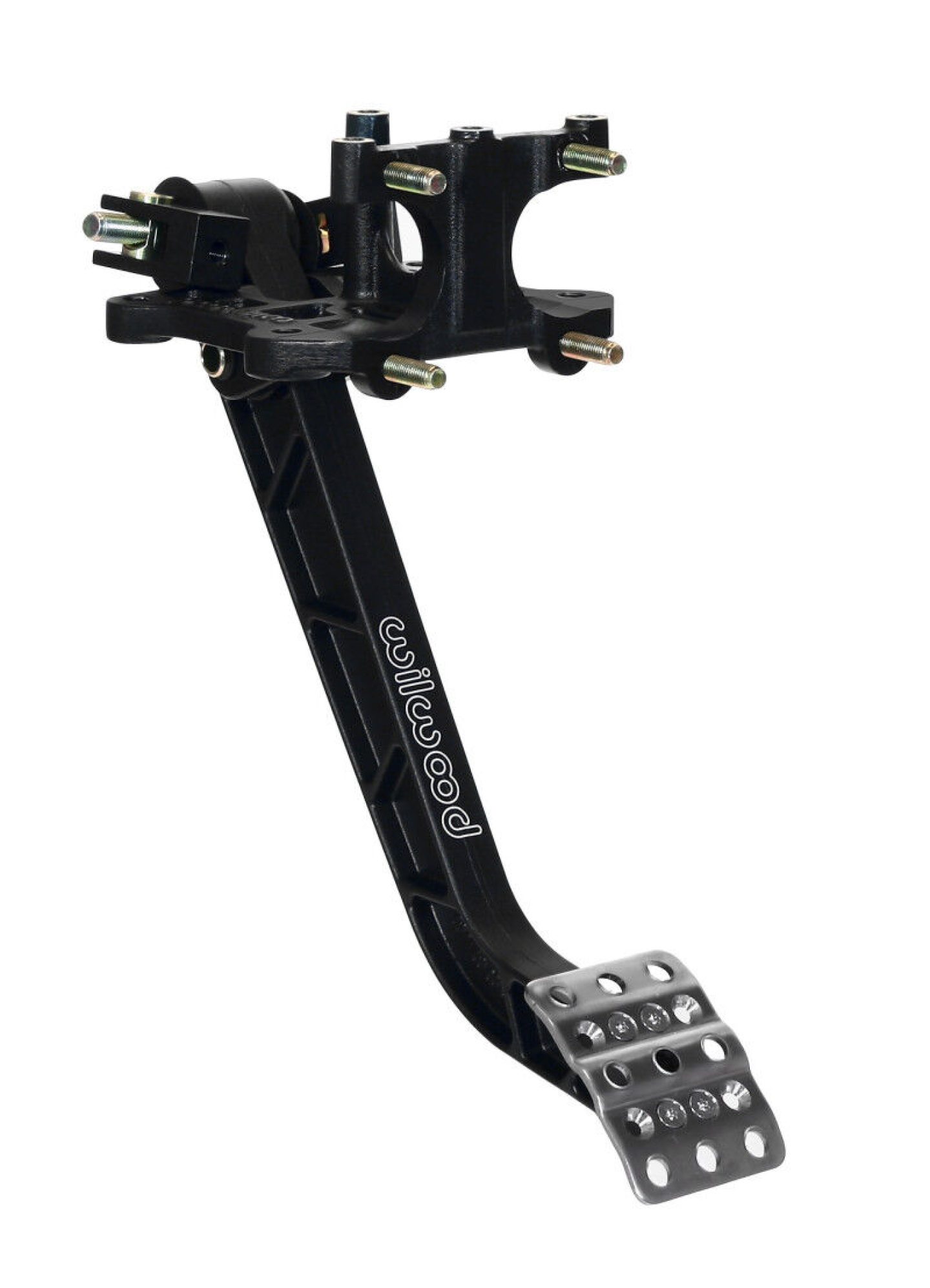

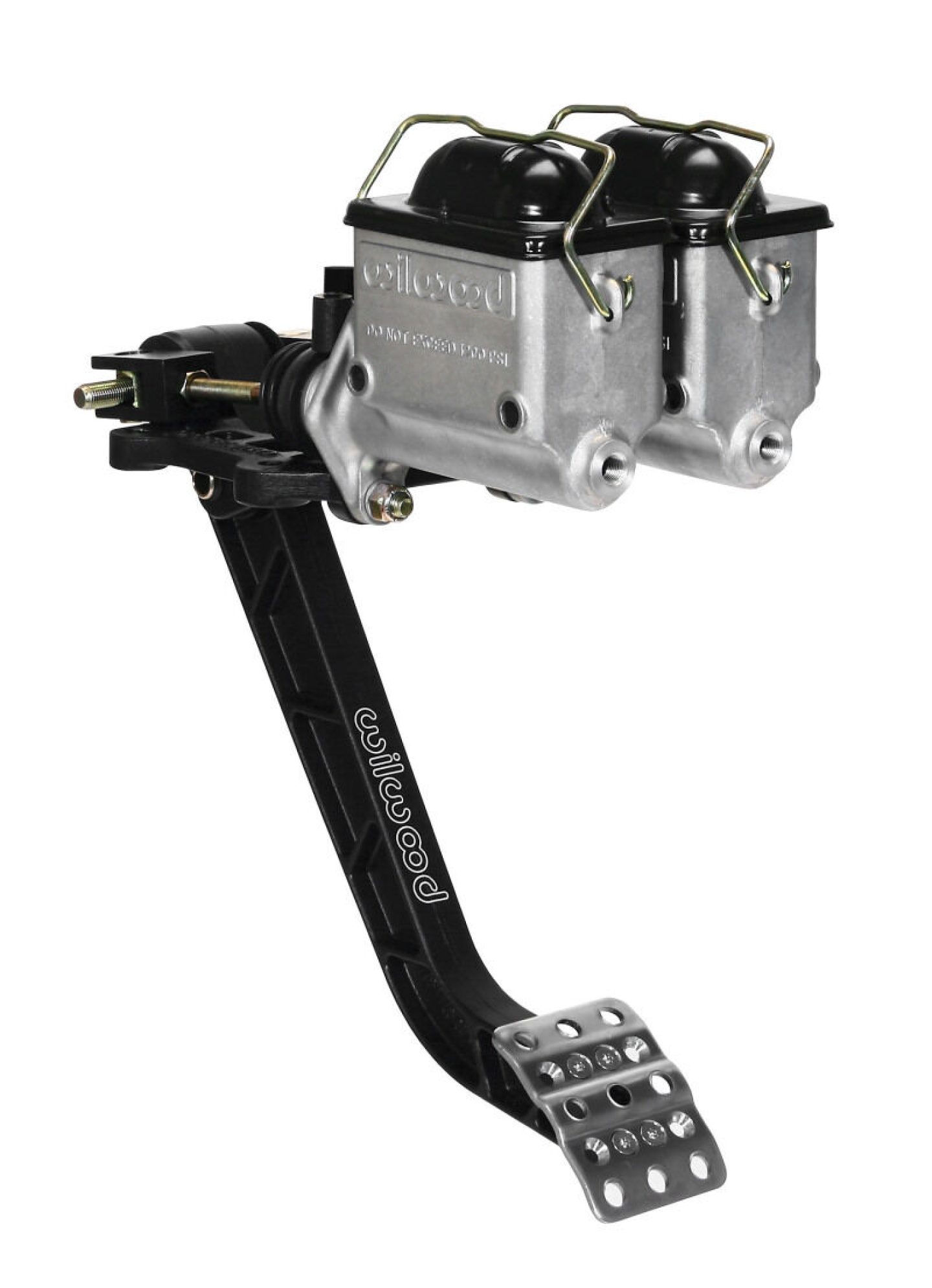

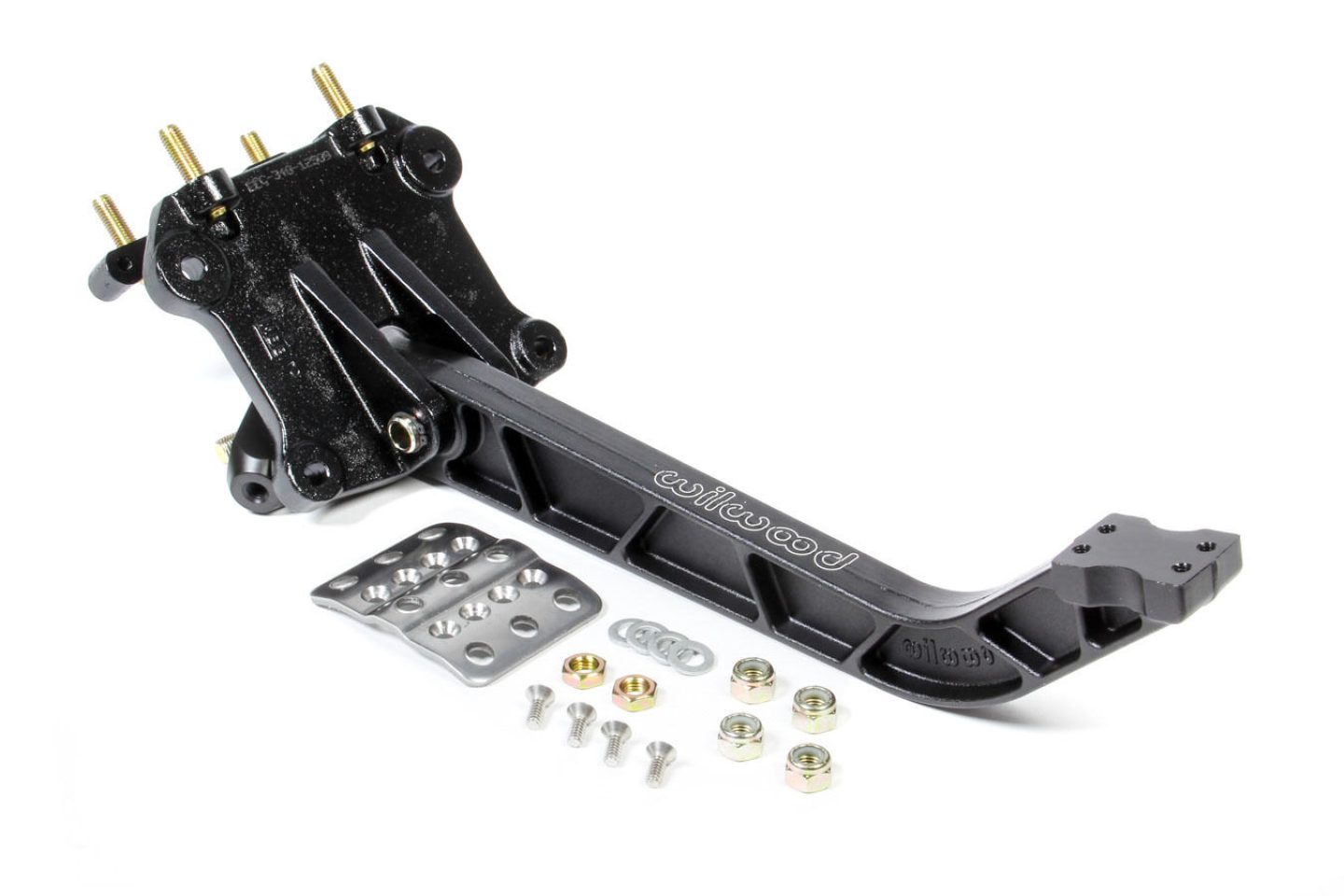

This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6.25:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size
Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, instrument clusters, and adjacent parts can vary between LHD and RHD configurations. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.
Wilwood floor mount brake pedal assemblies are made from lightweight aluminum with high-strength reinforced I-beam-style forged pedal arms and non-skid waffled pedal pads. They're equipped with a balance bar and a pin/clevis pushrod attachment for precise adjustments and smooth, bind-free operation. These pedal assemblies accept any Wilwood vertical-mount flange, single outlet master cylinder (not included; ordered separately by style and bore size).
UPC | 889545028454 |
Brand | Wilwood Disc Brakes |
Notes | Adjustable reverse mount pedal assembly mounts two brake master cylinders with a bias balance bar and positions the master cylinders inside the firewall and away from engine heat. |
Quantity | Sold individually. |
Part Type | Pedal Assemblies |
Pedal Type | Brake |
Pedal Color | Black |
Pedal Ratio | 6.25:1 |
Product Line | Wilwood Brake Pedal Assemblies |
Pedal Material | Aluminum |
Gas Pedal Shape | Rectangle |
Pedal Pad Color | Black |
Brake Pedal Shape | Rectangle |
Pedal Pad Included | Yes |
Pedal Pad Material | Anti-slip surface |
Balance Bar Included | Yes |
Pedal Pad Attachment | Bolt-on |
Master Cylinder Style | Dual |
Brake Booster Included | No |
Pedal Mounting Location | Reverse mount |
Throttle Cable Included | No |
Master Cylinder Included | No |
Summit Racing Part Number | WIL-340-12509 |
Manufacturer's Part Number | 340-12509 |
Compatibility & Application Information | |
---|---|
Universal | Yes |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
