Wilwood Caliper-Combination Parking Brake-L/H-Black 34mm pis
SKU: wil120-9809-BK
$488.72
or 4 payments of $122.18 with Info
Shop now. Pay Later. Interest Free.
Make 4 interest-free payments of $378.10 fortnightly and receive your order now. More info

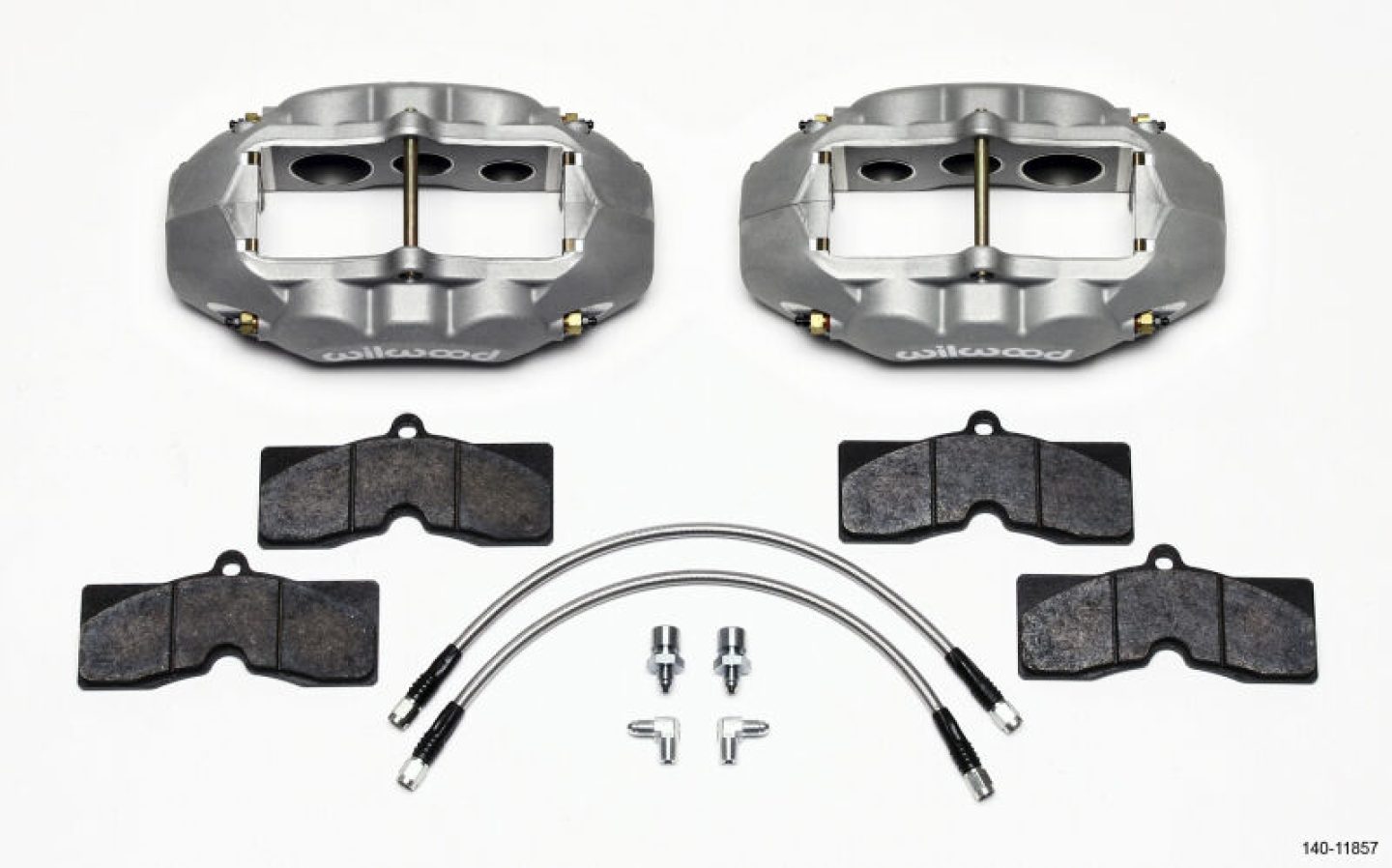

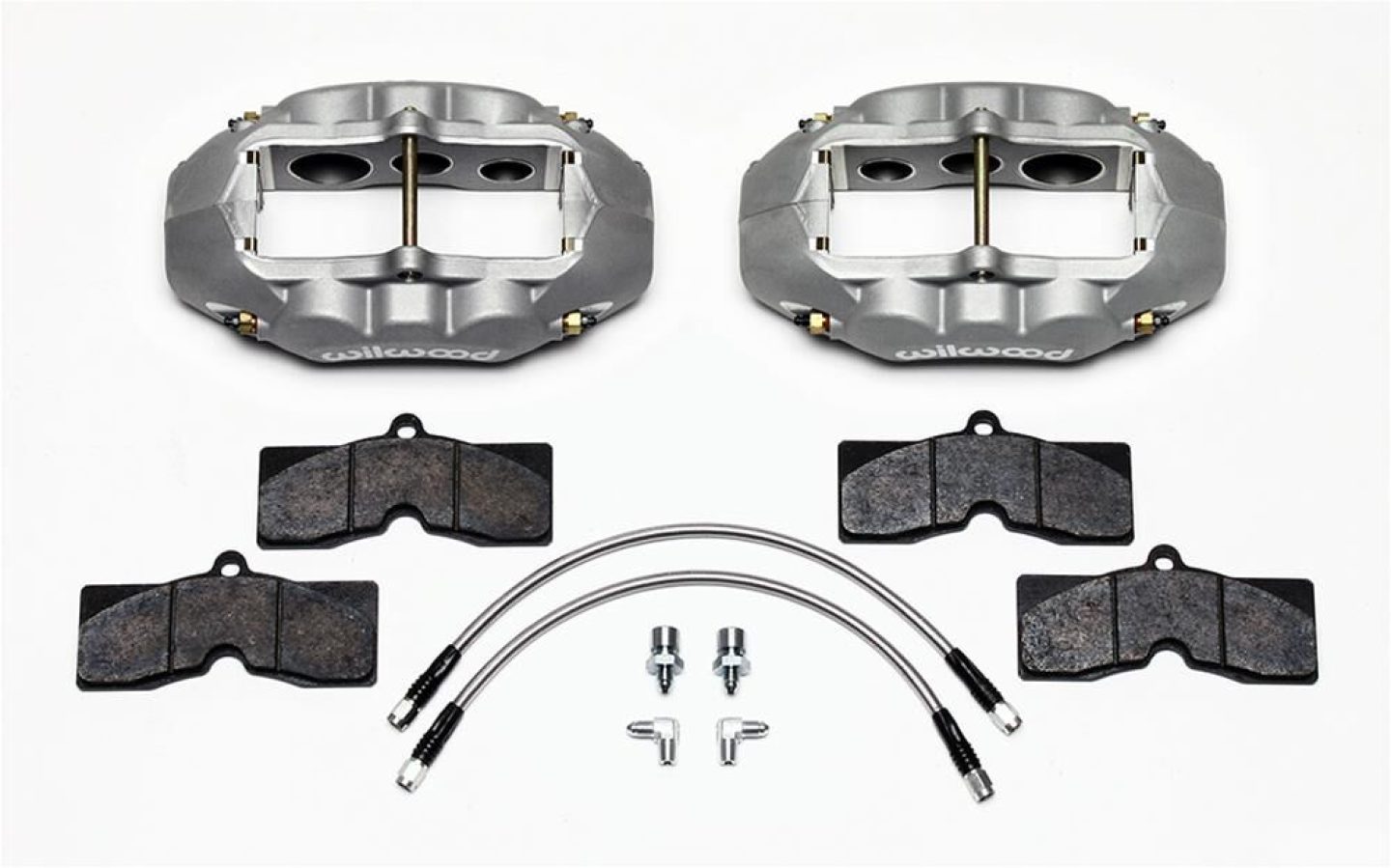

D8-6 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-6 calipers provide low-maintenance performance, a huge weight savings, high temperature reliability, and the added benefit of six piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most '67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound "Smart Pads".
Does your Corvette need a brake caliper upgrade? These Wilwood D8-6 brake calipers are direct bolt-on replacements for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE calipers. Wilwood D8-6 brake calipers provide low-maintenance performance, a significant weight savings, high-temperature reliability, and the added benefit of 6-piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original-style D8 brake pads, and fit snugly inside most '67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16 in. or wider wheel spacer for clearance. These Wilwood D8-6 brake calipers are sure to give your Corvette outstanding braking capabilities over the OE calipers.
UPC | 889545014228 |
Brand | Wilwood Disc Brakes |
Notes | Kit also includes stainless steel braided brake hoses. |
Quantity | Sold as a kit. |
Part Type | Brake Calipers |
Caliper Logo | Wilwood |
Product Line | Wilwood D8-6 Brake Calipers |
Caliper Color | Gray/Silver |
Caliper Series | D8-6 |
Remanufactured | No |
Caliper Material | Aluminum |
Brackets Included | No |
Fittings Included | Yes |
Brake Pad Material | Semi-metallic |
Brake Pads Included | Yes |
Caliper Piston Quantity | Six |
Parking Brake Provision | No |
Summit Racing Part Number | WIL-140-11857 |
Manufacturer's Part Number | 140-11857 |
Compatibility & Application Information | |
---|---|
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1970 |
Engine Type | V8 |
Liter | 5.7 |
CID | 350 |
Caliper Position | Front Axle |
Engine Family | Chevy small block Gen I |
Engine Size | 5.7L/350 |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,VETTE,65-82,D8-6,CALIPERS,PAD LINE,ANO,W/LINES; RTR:-IN DIA, , N/A; CLPR:D8-6, 6-PISTON, TYPE III ANO |
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1970 |
Engine Type | V8 |
Liter | 7.4 |
CID | 454 |
Caliper Position | Front Axle |
CC | 7439 |
Engine Family | Chevy big block Mark IV |
Engine Size | 7.4L/454 |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,VETTE,65-82,D8-6,CALIPERS,PAD LINE,ANO,W/LINES; RTR:-IN DIA, , N/A; CLPR:D8-6, 6-PISTON, TYPE III ANO |
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1970 |
Engine Type | V8 |
Liter | 7.4 |
CID | 454 |
Caliper Position | Front Axle |
CC | 7441 |
Engine Family | Chevy big block Mark IV |
Engine Size | 7.4L/454 |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,VETTE,65-82,D8-6,CALIPERS,PAD LINE,ANO,W/LINES; RTR:-IN DIA, , N/A; CLPR:D8-6, 6-PISTON, TYPE III ANO |
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1977 |
Ending Year | 1977 |
Engine Type | V8 |
Liter | 5.7 |
CID | 350 |
Caliper Position | Front Axle |
Engine Family | Chevy small block Gen I |
Engine Size | 5.7L/350 |
Drivetrain | RWD |
Wilwood D8-6 Front Caliper Kit Clear Corvette C2 / C3 65-82 | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1970 | Chevrolet | Corvette | Base | US |
1975 | Chevrolet | Corvette | Stingray | US |
1976 | Chevrolet | Corvette | Stingray | US |
1977 | Chevrolet | Corvette | Base | US |
1978 | Chevrolet | Corvette | Indianapolis 500 Pace Car | US |
1978 | Chevrolet | Corvette | Base | US |
1978 | Chevrolet | Corvette | Silver Anniversary Edition | US |
1979 | Chevrolet | Corvette | Base | US |
1980 | Chevrolet | Corvette | Base | US |
1981 | Chevrolet | Corvette | Base | US |
1982 | Chevrolet | Corvette | Base | US |
1982 | Chevrolet | Corvette | Collector's Edition | US |
D8-6 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-6 calipers provide low-maintenance performance, a huge weight savings, high temperature reliability, and the added benefit of six piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most '67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound "Smart Pads".
Does your Corvette need a brake caliper upgrade? These Wilwood D8-6 brake calipers are direct bolt-on replacements for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE calipers. Wilwood D8-6 brake calipers provide low-maintenance performance, a significant weight savings, high-temperature reliability, and the added benefit of 6-piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original-style D8 brake pads, and fit snugly inside most '67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16 in. or wider wheel spacer for clearance. These Wilwood D8-6 brake calipers are sure to give your Corvette outstanding braking capabilities over the OE calipers.
UPC | 889545014228 |
Brand | Wilwood Disc Brakes |
Notes | Kit also includes stainless steel braided brake hoses. |
Quantity | Sold as a kit. |
Part Type | Brake Calipers |
Caliper Logo | Wilwood |
Product Line | Wilwood D8-6 Brake Calipers |
Caliper Color | Gray/Silver |
Caliper Series | D8-6 |
Remanufactured | No |
Caliper Material | Aluminum |
Brackets Included | No |
Fittings Included | Yes |
Brake Pad Material | Semi-metallic |
Brake Pads Included | Yes |
Caliper Piston Quantity | Six |
Parking Brake Provision | No |
Summit Racing Part Number | WIL-140-11857 |
Manufacturer's Part Number | 140-11857 |
Compatibility & Application Information | |
---|---|
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1970 |
Engine Type | V8 |
Liter | 5.7 |
CID | 350 |
Caliper Position | Front Axle |
Engine Family | Chevy small block Gen I |
Engine Size | 5.7L/350 |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,VETTE,65-82,D8-6,CALIPERS,PAD LINE,ANO,W/LINES; RTR:-IN DIA, , N/A; CLPR:D8-6, 6-PISTON, TYPE III ANO |
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1970 |
Engine Type | V8 |
Liter | 7.4 |
CID | 454 |
Caliper Position | Front Axle |
CC | 7439 |
Engine Family | Chevy big block Mark IV |
Engine Size | 7.4L/454 |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,VETTE,65-82,D8-6,CALIPERS,PAD LINE,ANO,W/LINES; RTR:-IN DIA, , N/A; CLPR:D8-6, 6-PISTON, TYPE III ANO |
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1970 |
Engine Type | V8 |
Liter | 7.4 |
CID | 454 |
Caliper Position | Front Axle |
CC | 7441 |
Engine Family | Chevy big block Mark IV |
Engine Size | 7.4L/454 |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,VETTE,65-82,D8-6,CALIPERS,PAD LINE,ANO,W/LINES; RTR:-IN DIA, , N/A; CLPR:D8-6, 6-PISTON, TYPE III ANO |
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1977 |
Ending Year | 1977 |
Engine Type | V8 |
Liter | 5.7 |
CID | 350 |
Caliper Position | Front Axle |
Engine Family | Chevy small block Gen I |
Engine Size | 5.7L/350 |
Drivetrain | RWD |
Wilwood D8-6 Front Caliper Kit Clear Corvette C2 / C3 65-82 | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1970 | Chevrolet | Corvette | Base | US |
1975 | Chevrolet | Corvette | Stingray | US |
1976 | Chevrolet | Corvette | Stingray | US |
1977 | Chevrolet | Corvette | Base | US |
1978 | Chevrolet | Corvette | Indianapolis 500 Pace Car | US |
1978 | Chevrolet | Corvette | Base | US |
1978 | Chevrolet | Corvette | Silver Anniversary Edition | US |
1979 | Chevrolet | Corvette | Base | US |
1980 | Chevrolet | Corvette | Base | US |
1981 | Chevrolet | Corvette | Base | US |
1982 | Chevrolet | Corvette | Base | US |
1982 | Chevrolet | Corvette | Collector's Edition | US |
