KIT PARTS

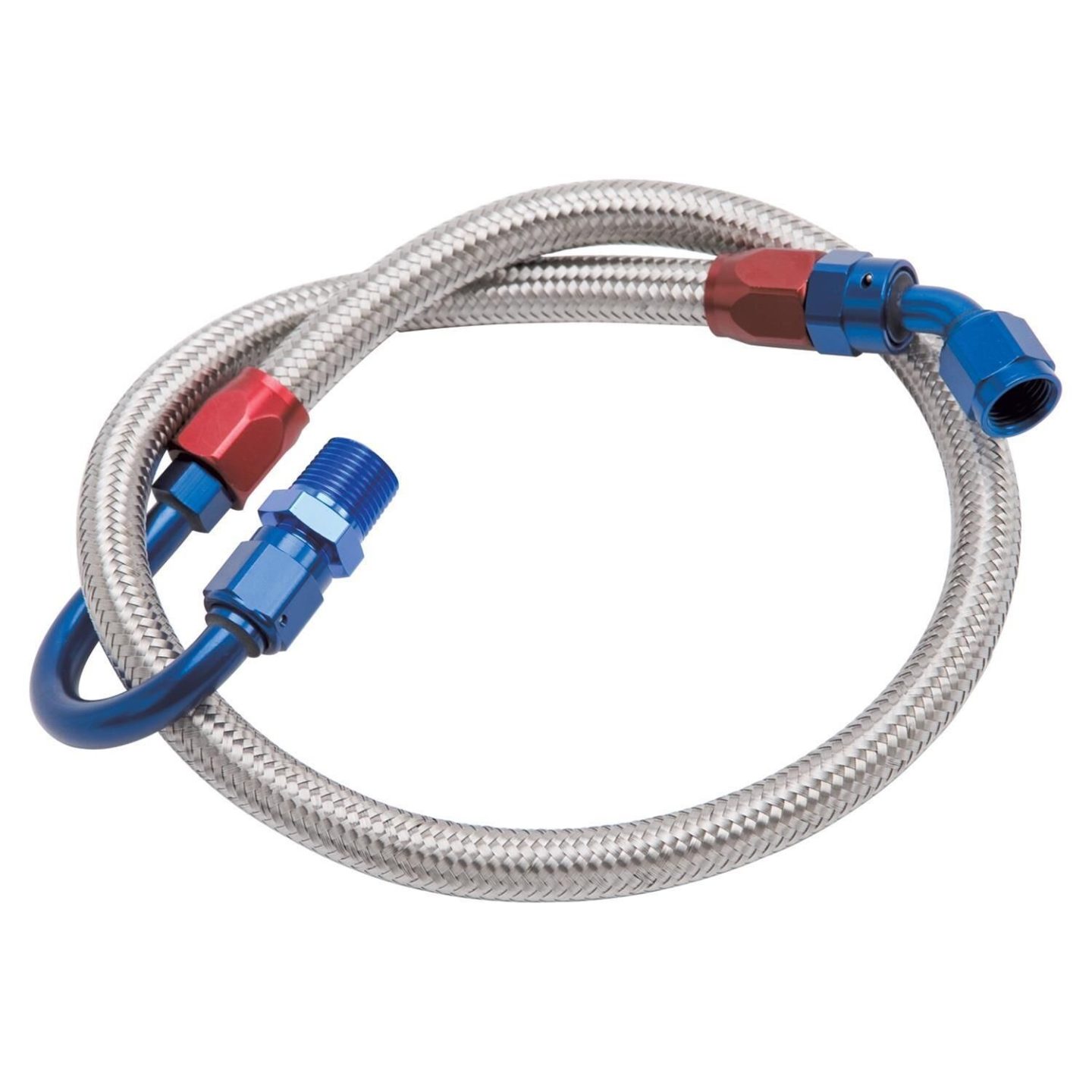

The Edelbrock #8125 high-quality fuel line kit offers a clean and precise fuel supply line for mechanical fuel pumps with a 3/8" NPT outlet, when using an Edelbrock Single- or Dual-Feed fuel inlet kit #8128, #8131, #8133 or #8134. The Edelbrock #8125 kit is designed for S/B Fords with bottom feed fuel pump applications only. Carb fuel inlet not included.
BRAIDED STAINLESS STEEL FUEL HOSE KIT
Ford:Small-Block:289 (4.7L)-351W (5.8L)
Fuel Hose Kit
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |  |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Fuel Pump to Carb Hose, -6 AN Braided Stainless Hose, Bottom Feed, Ford, Each
Designed to take the guesswork out of carb swaps, these fuel line and filter kits provide a quick, leak-free installation in a matter of minutes. They'll work with all Performer and some other brands of carbs and are available in different forms for a variety of applications.
| Product Attributes | |
|---|---|
| Brand | Edelbrock |
| Manufacturer's Part Number | 8125 |
| Part Type | Fuel System Plumbing Kits |
| Product Line | Edelbrock Fuel Line Kits and Accessories |
| UPC | 085347081257 |
| Fuel Line Included | Yes |
| Fuel Line Type | Braided stainless steel |
| Fuel Line Diameter | 3/8 in. |
| Fuel Line Length (in.) | 21.5 in. |
| Mounting Clamps Included | No |
| Fittings Included | Yes |
| Fitting Material | Aluminum |
| Fitting Color | Blue/Red |
| Fuel Filter Included | No |
| Quantity | Sold individually. |
| Notes | Braided stainless fuel line connects a mechanical fuel pump with a 3/8 in. NPT outlet to an Edelbrock single or dual-feed carburetor fuel line part number EDL-8128, EDL-8131, EDL-8133 or EDL-8134. Fuel line is pre-assembled and for use on bottom feed applications. |
| Manufacturer Attributes | |
|---|---|
| Fitting Material | Aluminum |
| Recommended Use | For Edelbrock Fuel Pumps With A 3/8 in NPT Outlet; For S/B Fords - Bottom Feed Only |
| Fitting Finish | Blue and Red anodized |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Quantity | Kit |
| Hose Material | Stainless Steel |
| Type | Tube and Braded |
| Finish | Natural |
| Filter Included | No |
| Product Class | Fuel Hose Kit |
| Construction/Type | Edelbrock Braided Stainless Steel Fuel Hose Kit for S/B Fords - bottom feed only with Edelbrock Fuel Pump with 3/8" NPT Outlet |
| Vehicle Designations | Ford:Small-Block:289 (4.7L)-351W (5.8L) |
| Vehicle Brief | Braided Stainless Steel Fuel Hose Kit |
| Market Description | The Edelbrock #8125 high-quality fuel line kit offers a clean and precise fuel supply line for mechanical fuel pumps with a 3/8" NPT outlet, when using an Edelbrock Single- or Dual-Feed fuel inlet kit #8128, #8131, #8133 or #8134. The Edelbrock #8125 kit is designed for S/B Fords with bottom feed fuel pump applications only. Carb fuel inlet not included. |
No specific fitment data available for this part. For clarification, please contact us.
| Application Data | |
|---|---|
| Universal | No |
| Make | FORD |
| Engine Type | V8 |
| Engine Size | 4.3L/260 |
| Engine Family | Ford small block Windsor |
| Kit Start Location | Fuel pump |
| Kit Ending Location | Fuel filter |
| Universal | No |
| Make | FORD |
| Engine Type | V8 |
| Engine Size | 4.7L/289 |
| Engine Family | Ford small block Windsor |
| Kit Start Location | Fuel pump |
| Kit Ending Location | Fuel filter |
| Universal | No |
| Make | FORD |
| Engine Type | V8 |
| Engine Size | 5.0L/302 |
| Engine Family | Ford small block Windsor |
| Kit Start Location | Fuel pump |
| Kit Ending Location | Fuel filter |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
