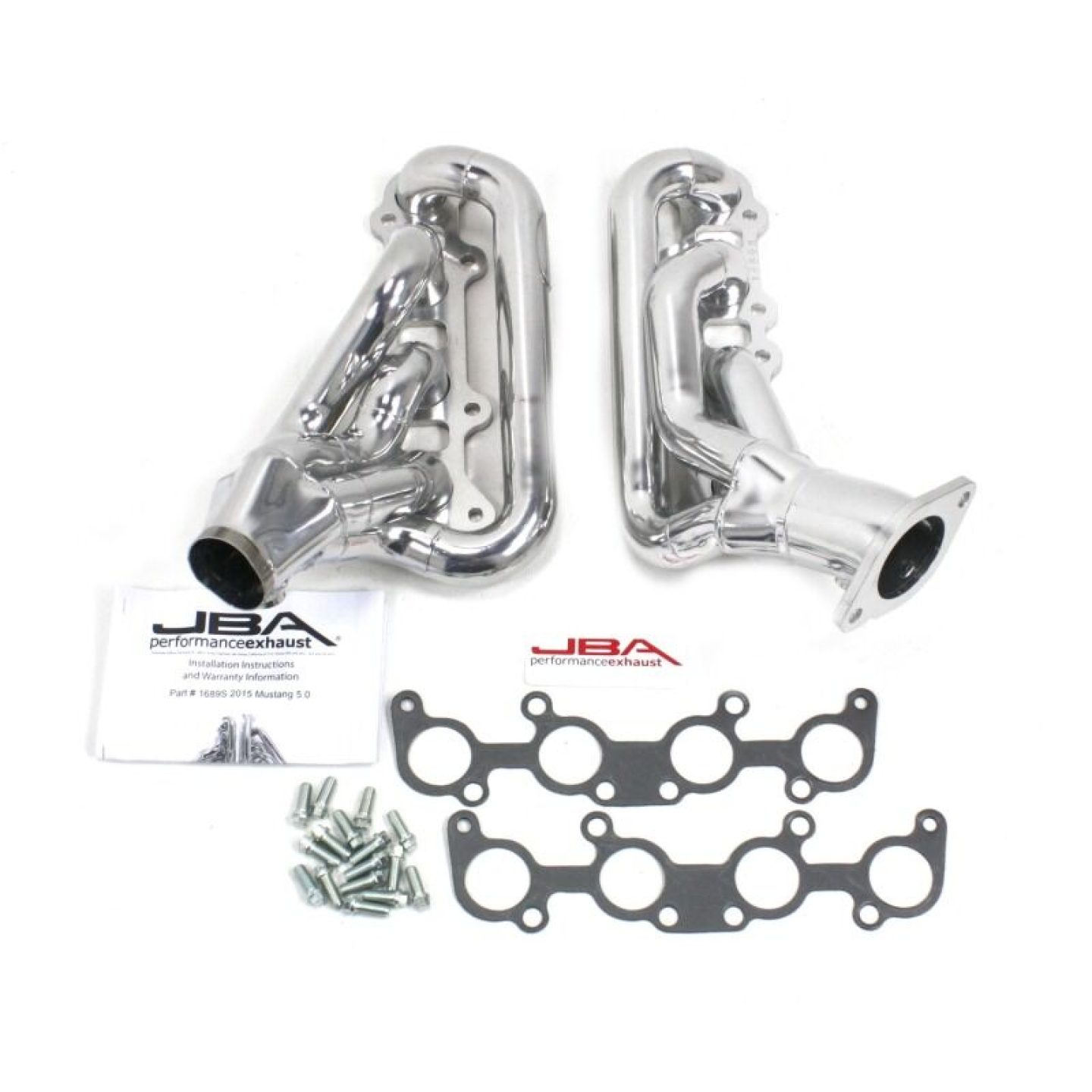

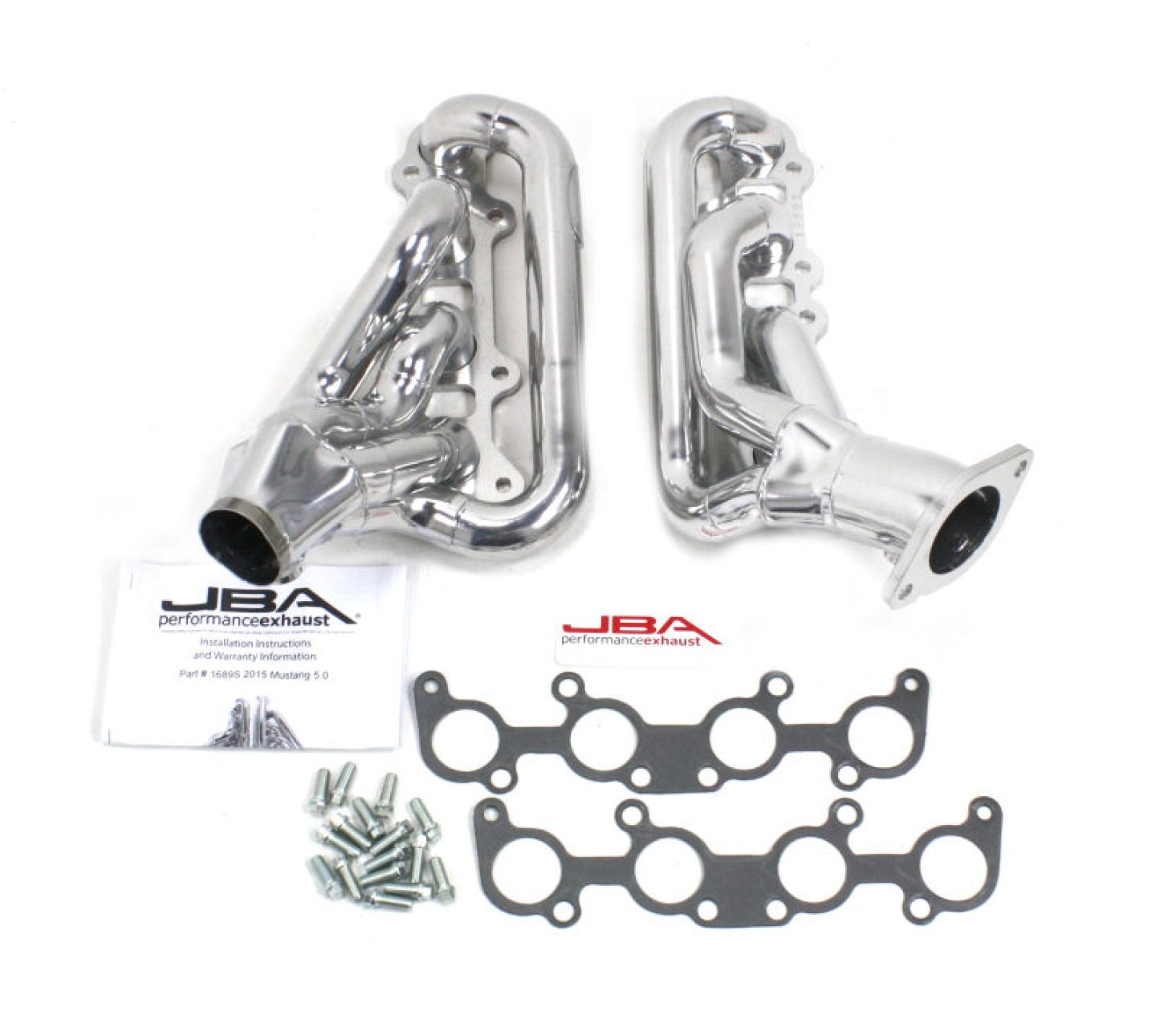

JBA Cat4Ward® Header 15-20 Mustang 5.0L Coyote 1 3/4" Primary Silver Ctd 1689SJS
2015-21 Mustang 5.0L
Increase your horsepower and torque with JBA Cat4ward headers! They are designed with 3/8 in. thick laser-cut flanges, mandrel-bent primary tubes, and feature JBA's patented Firecone merge collectors. They're available in either steel or 409 stainless steel and are offered in a chrome plated or high-temperature silver ceramic finish for most applications. JBA includes premium-quality mounting hardware and instructions for the installation and, unless otherwise noted, these headers are designed to fit the vehicle as it came from the manufacturer. This would include components such as cylinder heads, chassis, steering, motor mounts, body mounts, bushings, etc. If aftermarket components, parts from other applications, or custom-altered parts are used on your vehicle, it is the installer's responsibility to verify fitment.
Brand | JBA Performance Exhaust |
Manufacturer's Part Number | 1689SJS |
Part Type | Headers |
Product Line | JBA Performance Exhaust Cat4ward Headers |
Summit Racing Part Number | JBA-1689SJS |
UPC | 694342545130 |
Header Style | Shorty |
Header Material | 409 stainless steel |
Primary Tube Outside Diameter (in.) | 1 3/4 in. |
Header Color | Silver ceramic coated |
Flange Style | Standard |
Weld-Up | No |
Cylinder Head Port Shape | SAP |
Collector Attachment | Stock flange |
Collector Diameter (in.) | 2.75 |
Collector Reducers Included | No |
Tuned | No |
Primary Tube Gauge | 16-gauge |
Flange Thickness (in.) | 0.38 in. |
Bolts/Studs Included | Yes |
Gaskets Included | Yes |
Crossover Pipe Included | No |
Catalytic Converter(s) Included | No |
Motor Mounts Included | No |
Transmission Mount Included | No |
Quantity | Sold as a kit. |
CARB EO Number(s) | D-57-45 D-57-3 |
Emissions | California EO Approved |
JBA 15-20 Ford Mustang 5.0L 1-3/4in Stainless Steel Silver Ceramic Shorty Header | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Year | Make | Model | Submodel | Region | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2015 | Ford | Mustang | GT Premium |
