When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster? and Pro Series rods.

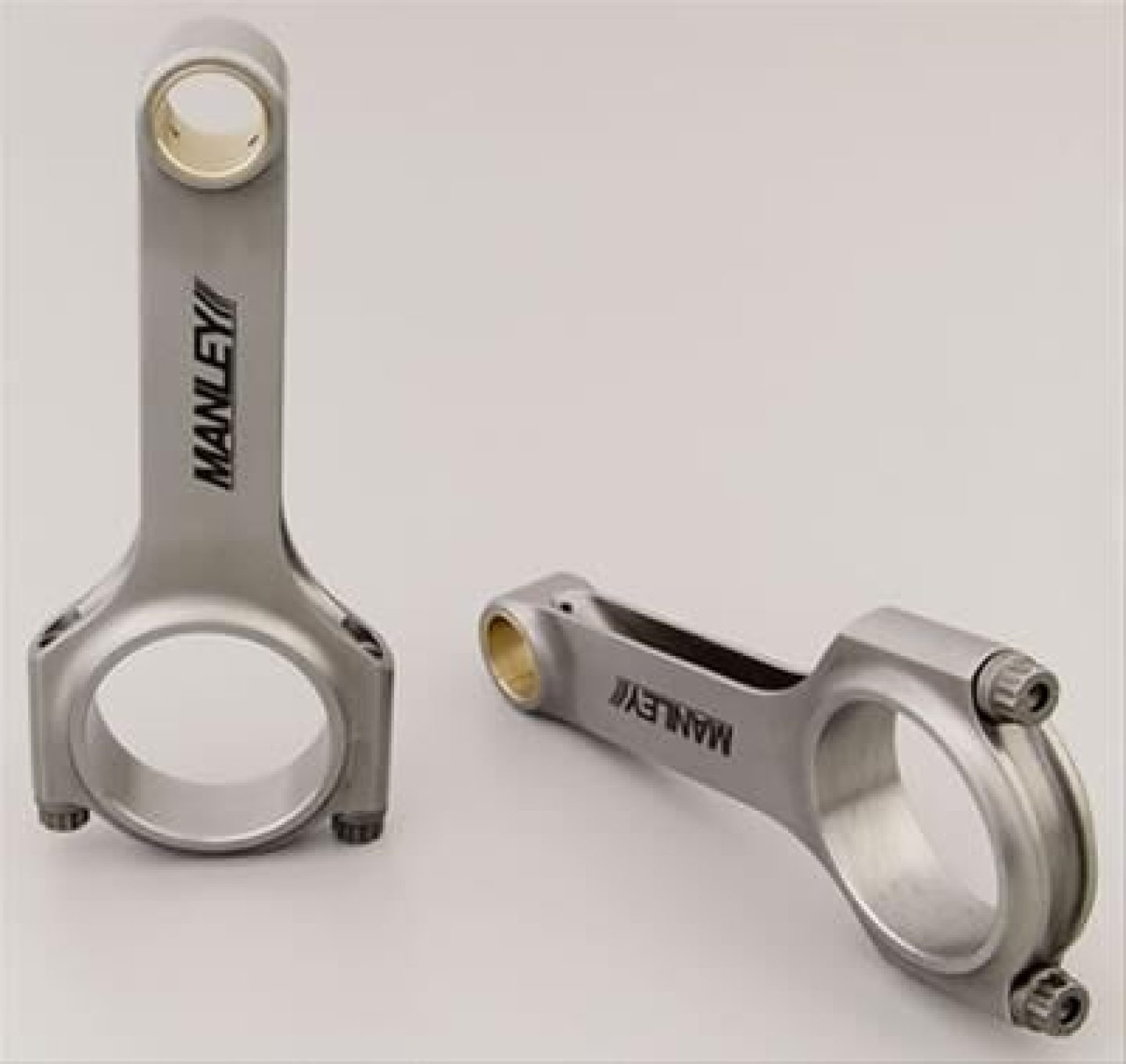

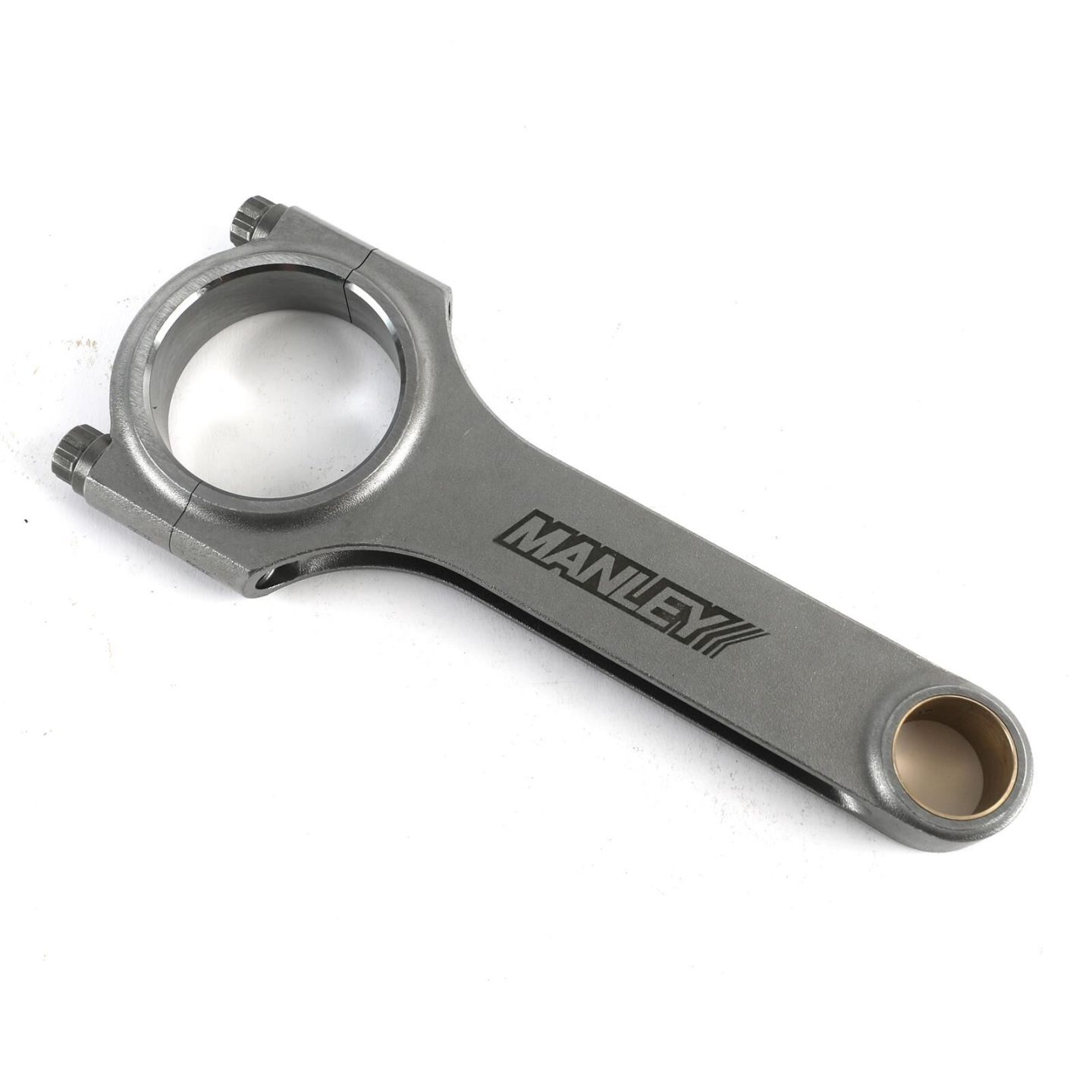

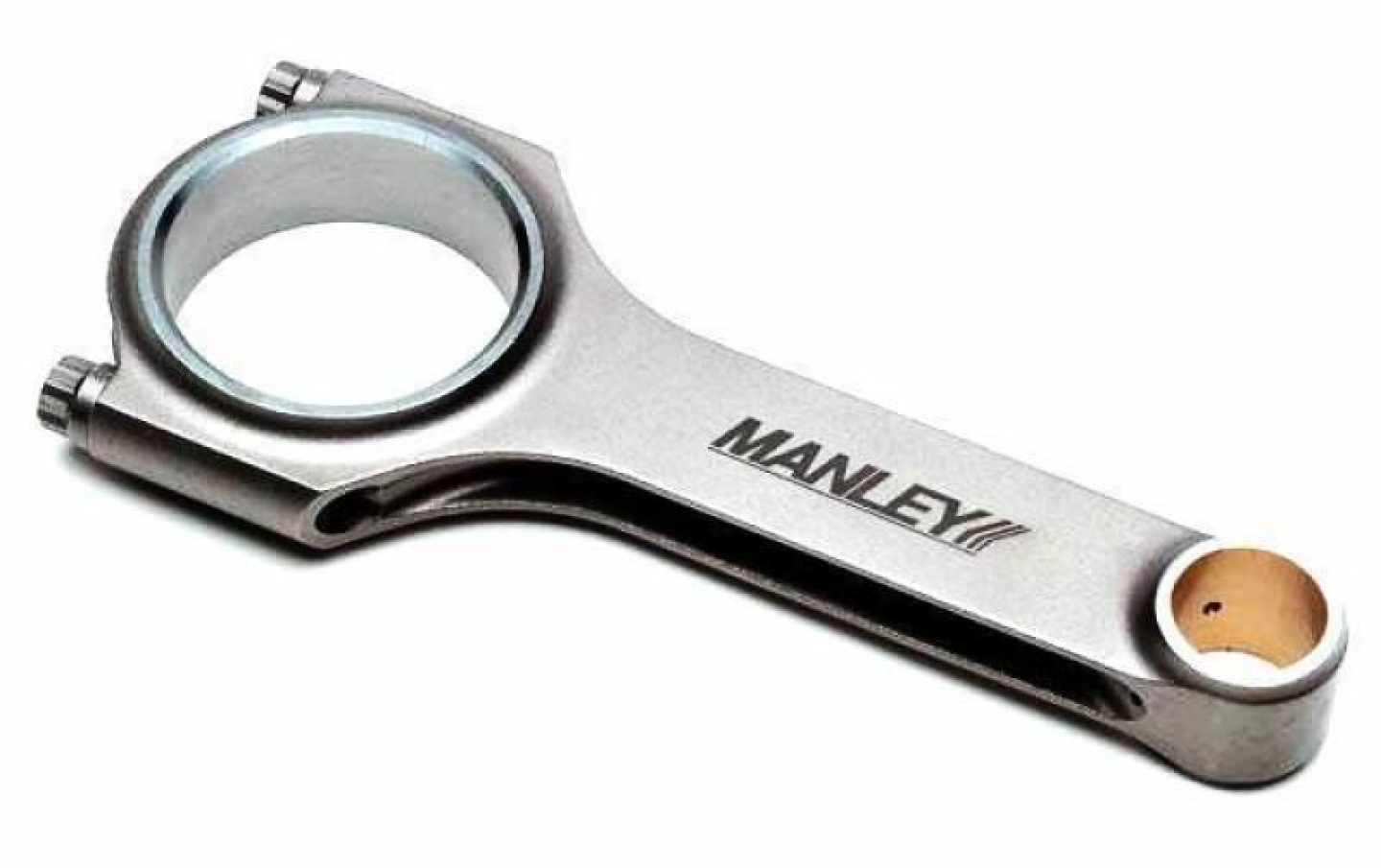

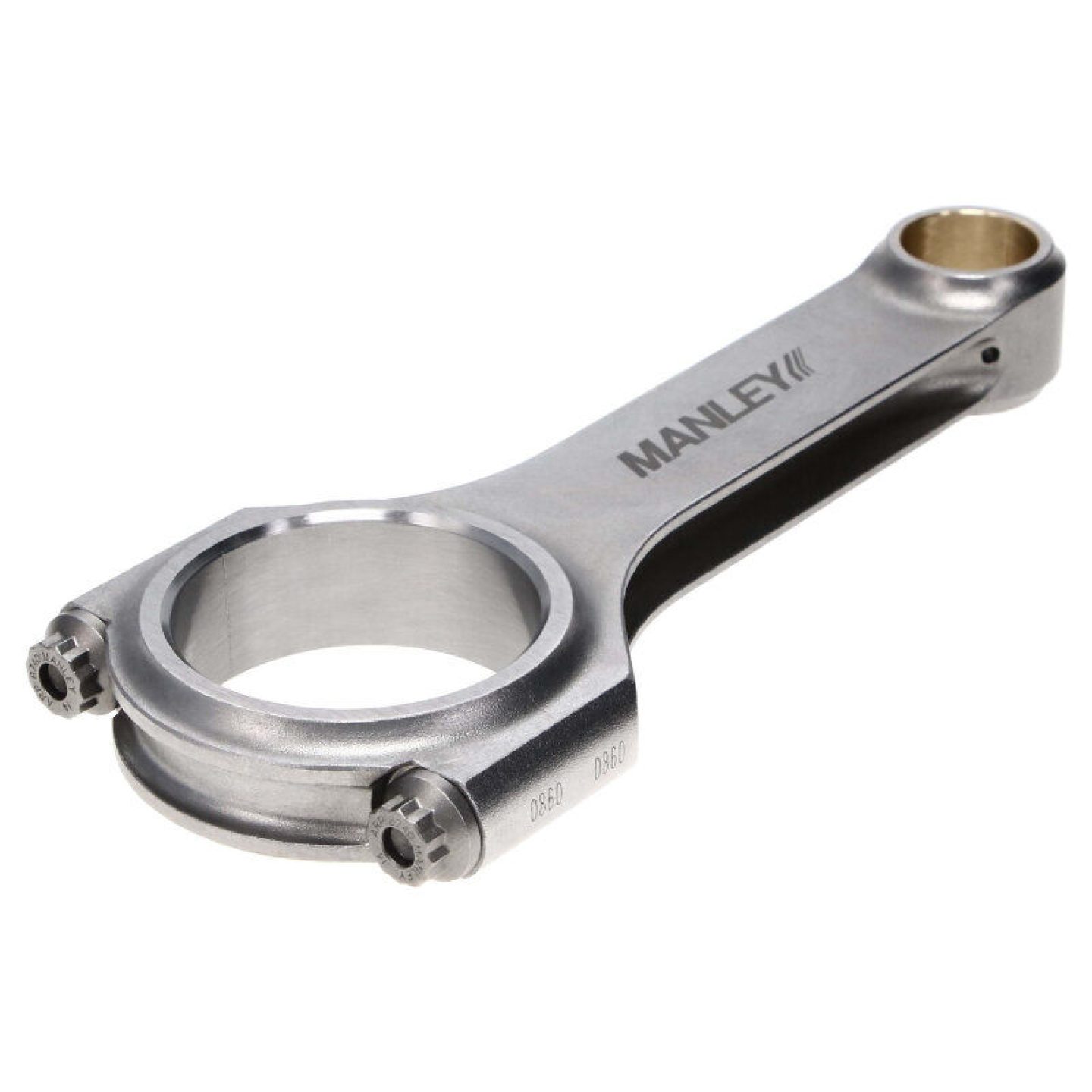

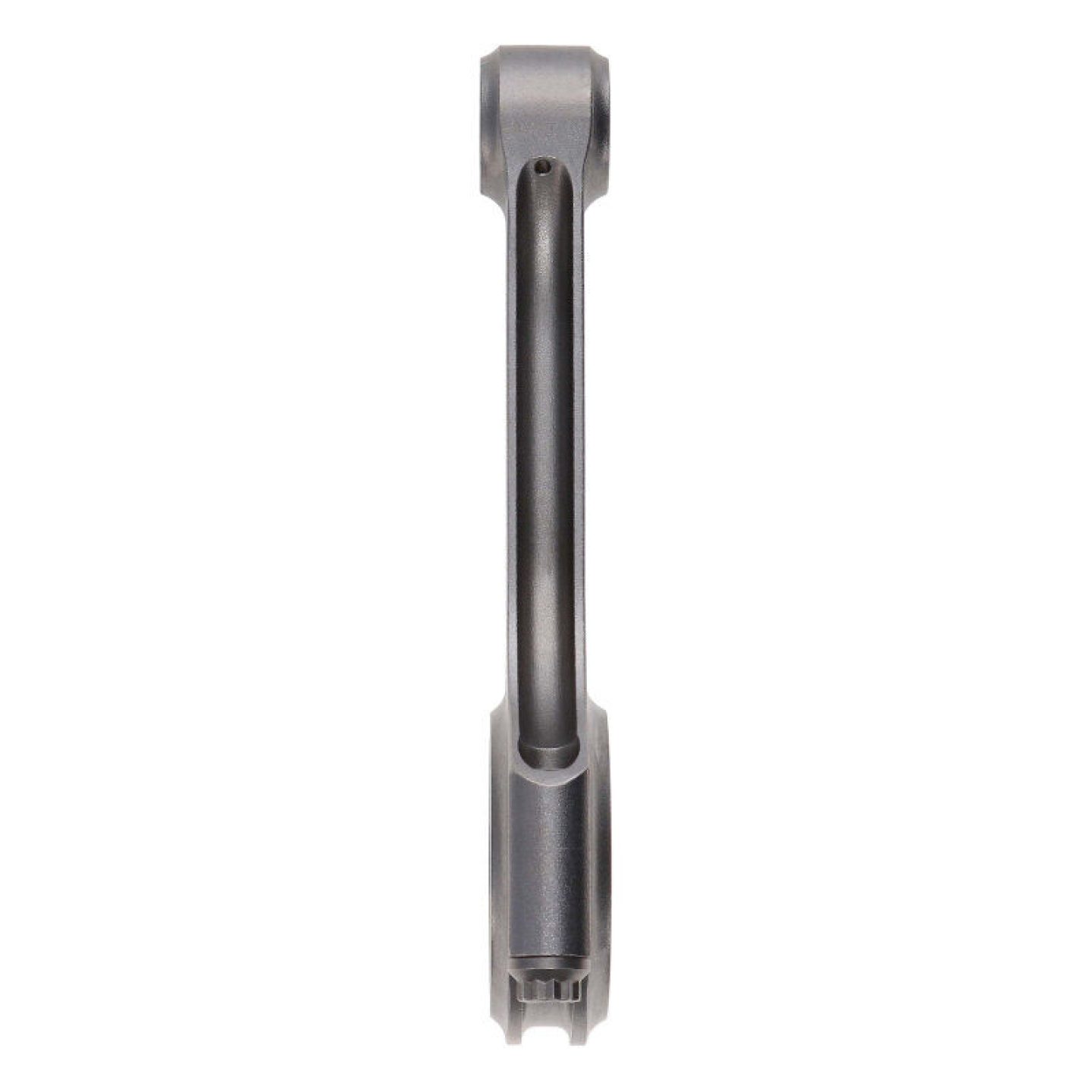

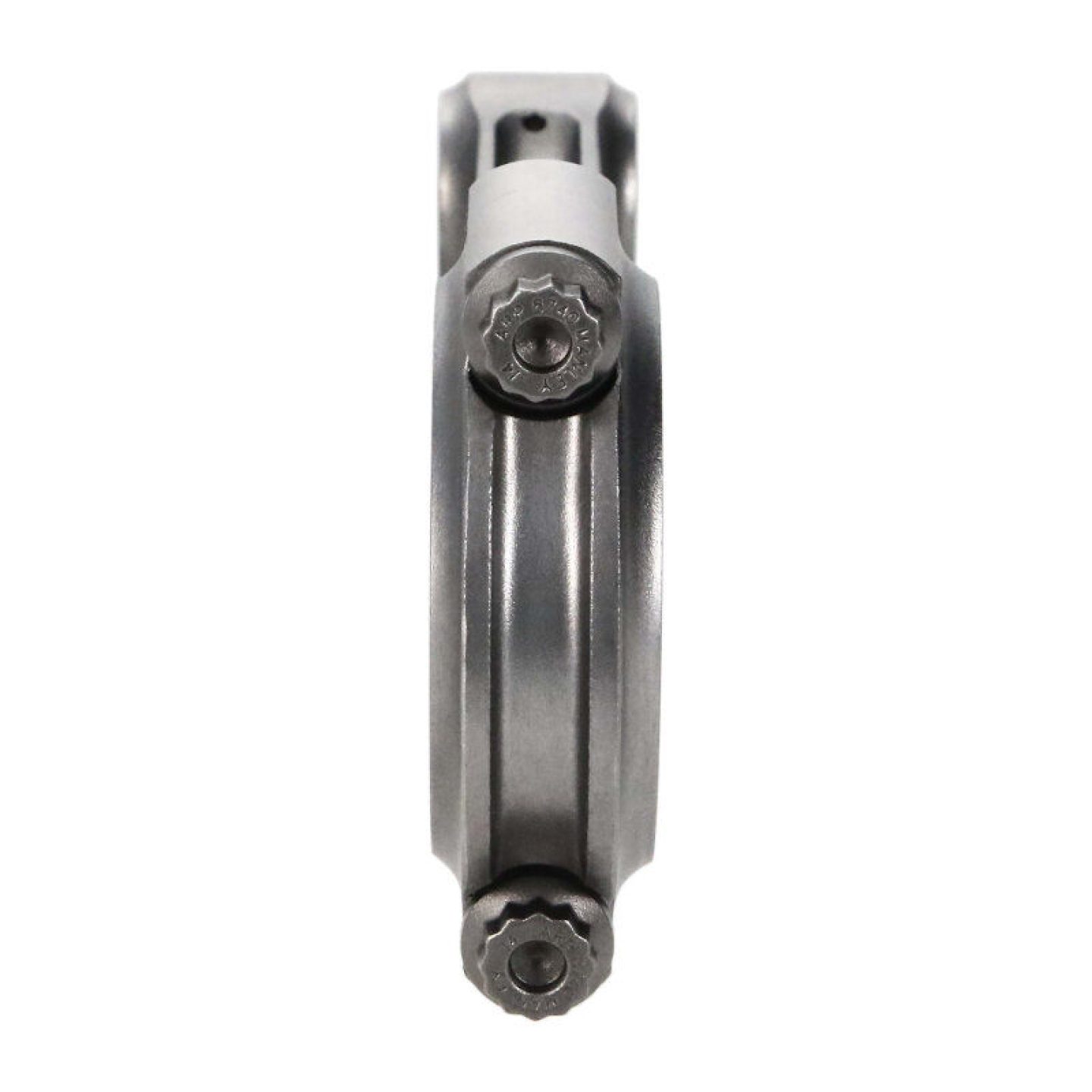

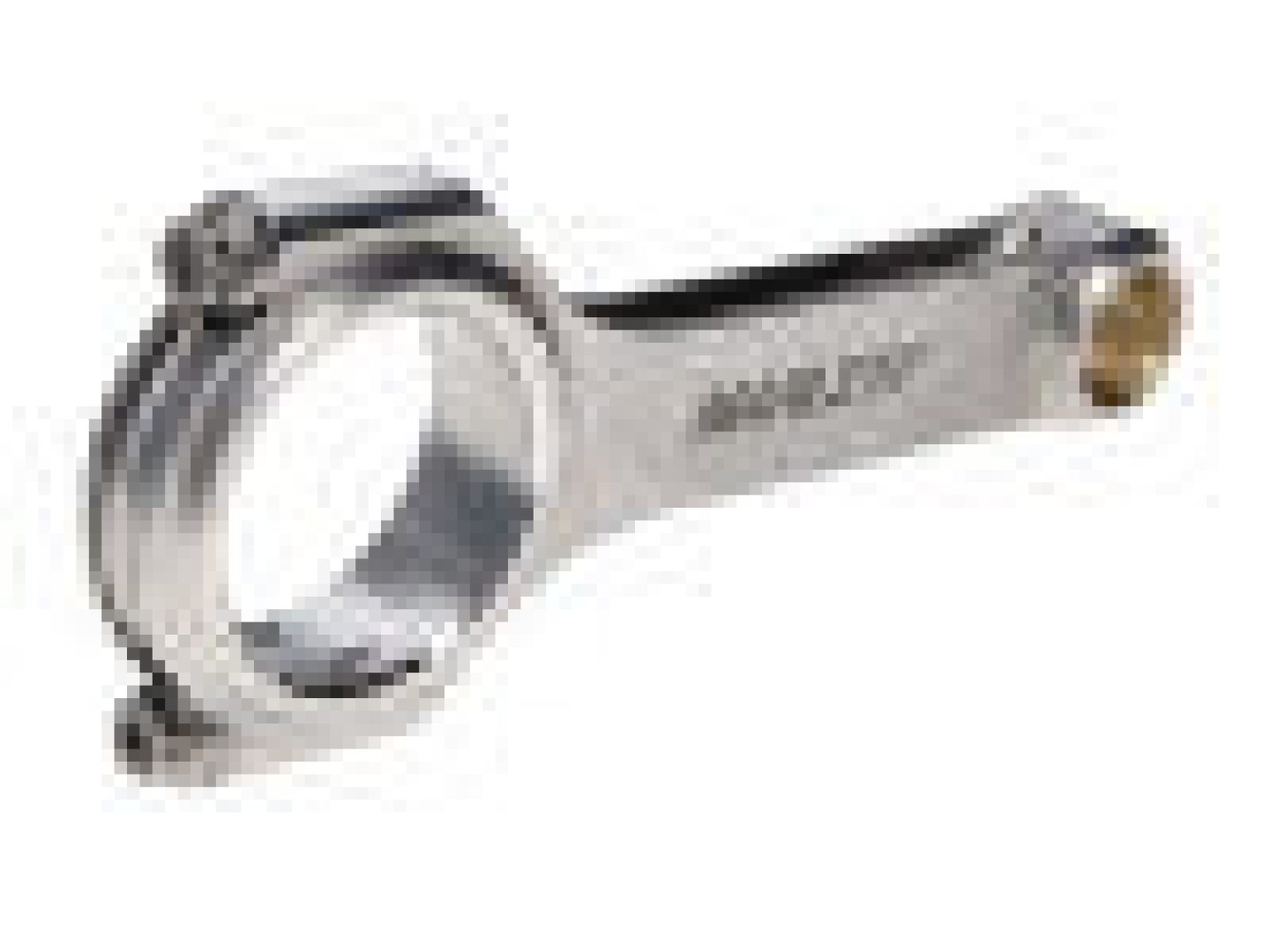

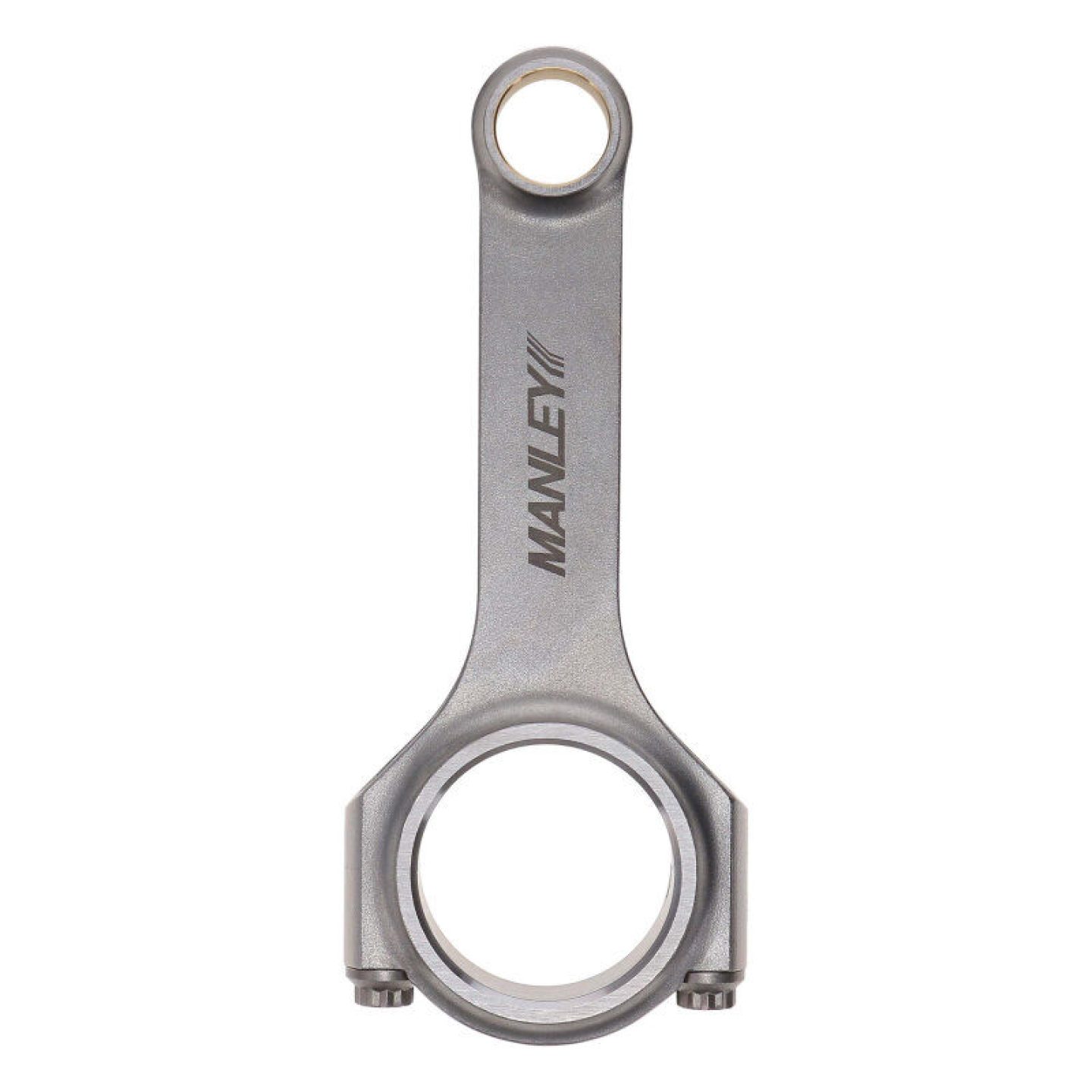

Manley Connecting Rod, ROD-HONDA CRV 2.4L K24 H/B.
Engine Connecting Rod
Not only are these lightweight aluminum rods from Manley stout, but they're also works of art. Their forged, high-quality 7075 T-6 aluminum is completely CNC-machined and fully polished on all forging surfaces for superior durability. It's a shame you can't see them in action. They feature machined beams and lightened cap screws, and all unused bolt threads have been removed for added strength. The big ends are final-honed to plus or minus .0002 in. and the sets are weight-matched to within 1 1/2 grams. Each rod includes 8740 steel ARP cap screw rod bolts. The rods are .010 in. shorter than listed dimensions to allow for stretching.
Brand | Manley |
Manufacturer's Part Number | 14015-1 |
Part Type | Connecting Rods |
Product Line | Manley 7075 T-6 Aluminum Connecting Rods |
Summit Racing Part Number | MAN-14015-1 |
UPC | 807298078441 |
Connecting Rod Length Center to Center (in.) | 6.535 in. |
Connecting Rod Beam Style | I-beam |
Connecting Rod Material | T-6 billet aluminum |
Wrist Pin Style | Floating |
Pin End Bore Diameter | 0.990 in. |
Rod Journal Diameter (in.) | 2.200 |
Big End Bore Diameter (in.) | 2.3250 |
Quantity | Sold individually. |
Cap Retention Style | Cap screw |
Clearanced for Stroker | No |
Connecting Rod Bolt Brand | ARP |
Connecting Rod Bolt Diameter | 7/16 in. |
Connecting Rod Bolt Material | 8740 chromoly steel |
Fastener Tensile Strength (psi) | 160,000 psi |
Connecting Rod Bolt Head Style | 12-point |
Approximate Connecting Rod Weight (g) | 615 |
Advertised Horsepower Rating | 850 hp |
Advertised RPM Rating | 8,500 rpm |
Weight Matched Set | Yes |
Remanufactured | No |
Magnafluxed | No |
Connecting Rod Color | Polished |
Compatibility & Application Information | |
---|---|
Make | CHEVROLET |
Beginning Year | 1966 |
Ending Year | 1969 |
Engine Type | V8 |
Engine Family | Chevy big block Mark IV |
Engine Size | 7.0L/427 |
Application Notes | Fits stroker engines only. |
Make | CHEVROLET |
Beginning Year | 1966 |
Ending Year | 1970 |
Engine Type | V8 |
Engine Family | Chevy big block Mark IV |
Engine Size | 6.5L/396 |
Application Notes | Fits stroker engines only. |
Make | CHEVROLET |
Beginning Year | 1970 |
Ending Year | 1972 |
Engine Type | V8 |
Engine Family | Chevy big block Mark IV |
Engine Size | 6.6L/402 |
Application Notes | Fits stroker engines only. |
Make | CHEVROLET |
Beginning Year | 1970 |
Ending Year | 1990 |
Engine Type | V8 |
Engine Family | Chevy big block Mark IV |
Engine Size | 7.4L/454 |
Application Notes | Fits stroker engines only. |
Make | CHEVROLET |
Beginning Year | 1991 |
Ending Year | 1995 |
Engine Type | V8 |
Engine Family | Chevy big block Gen V |
Engine Size | 7.4L/454 |
Application Notes | Fits stroker engines only. |
Make | CHEVROLET |
Beginning Year | 1996 |
Ending Year | 2000 |
Engine Type | V8 |
Engine Family | Chevy big block Gen VI |
Engine Size | 7.4L/454 |
Application Notes | Fits stroker engines only. |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
