When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster? and Pro Series rods.

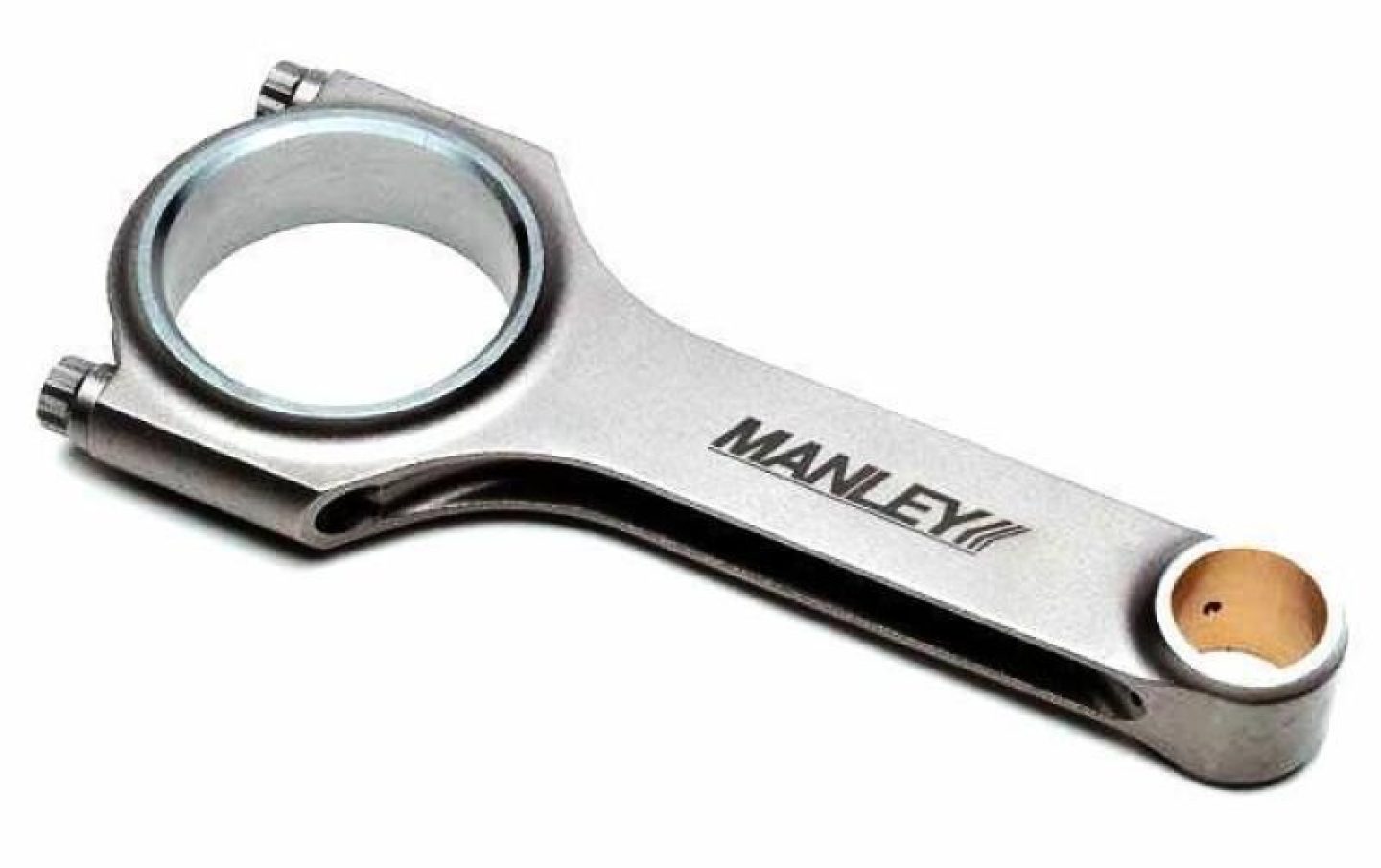

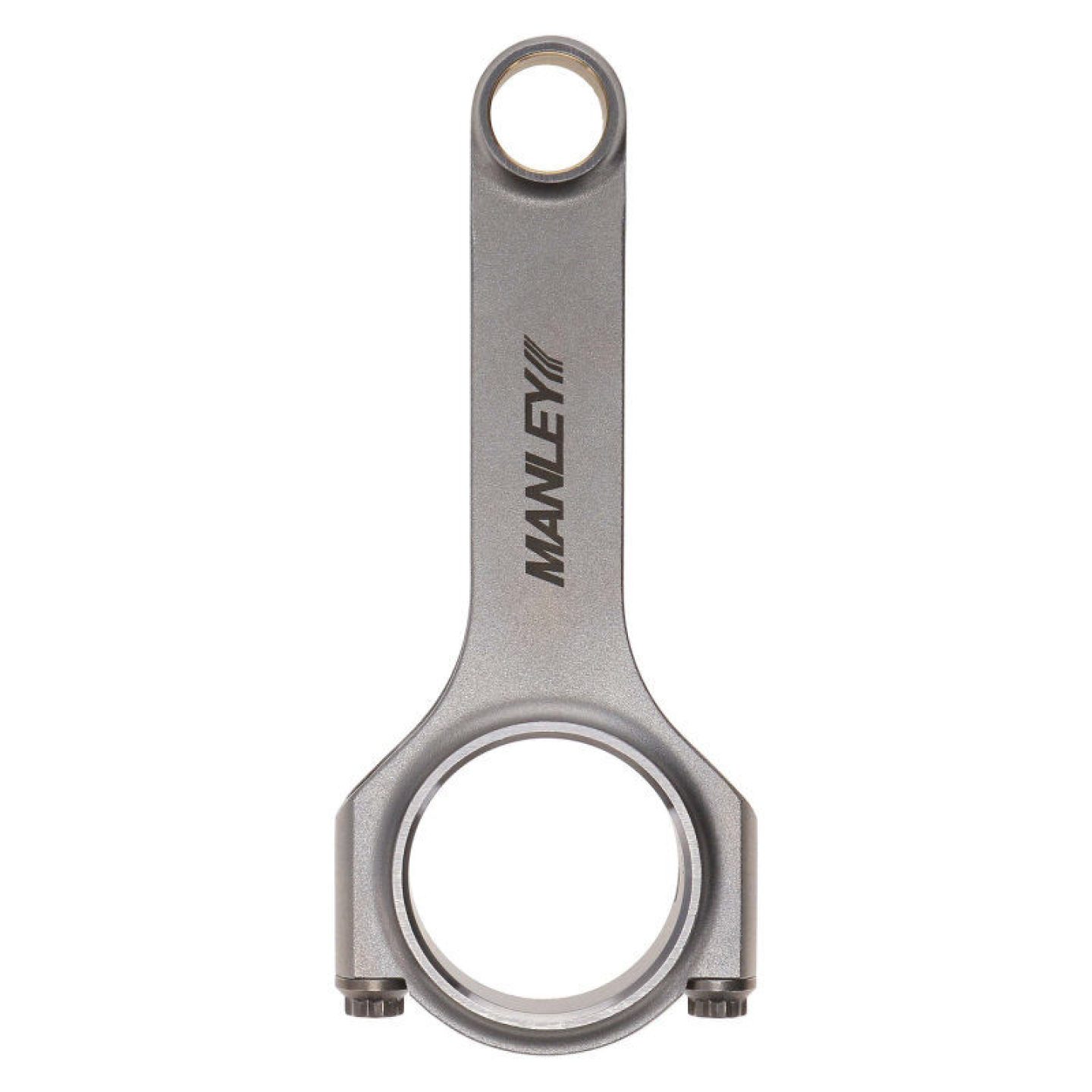

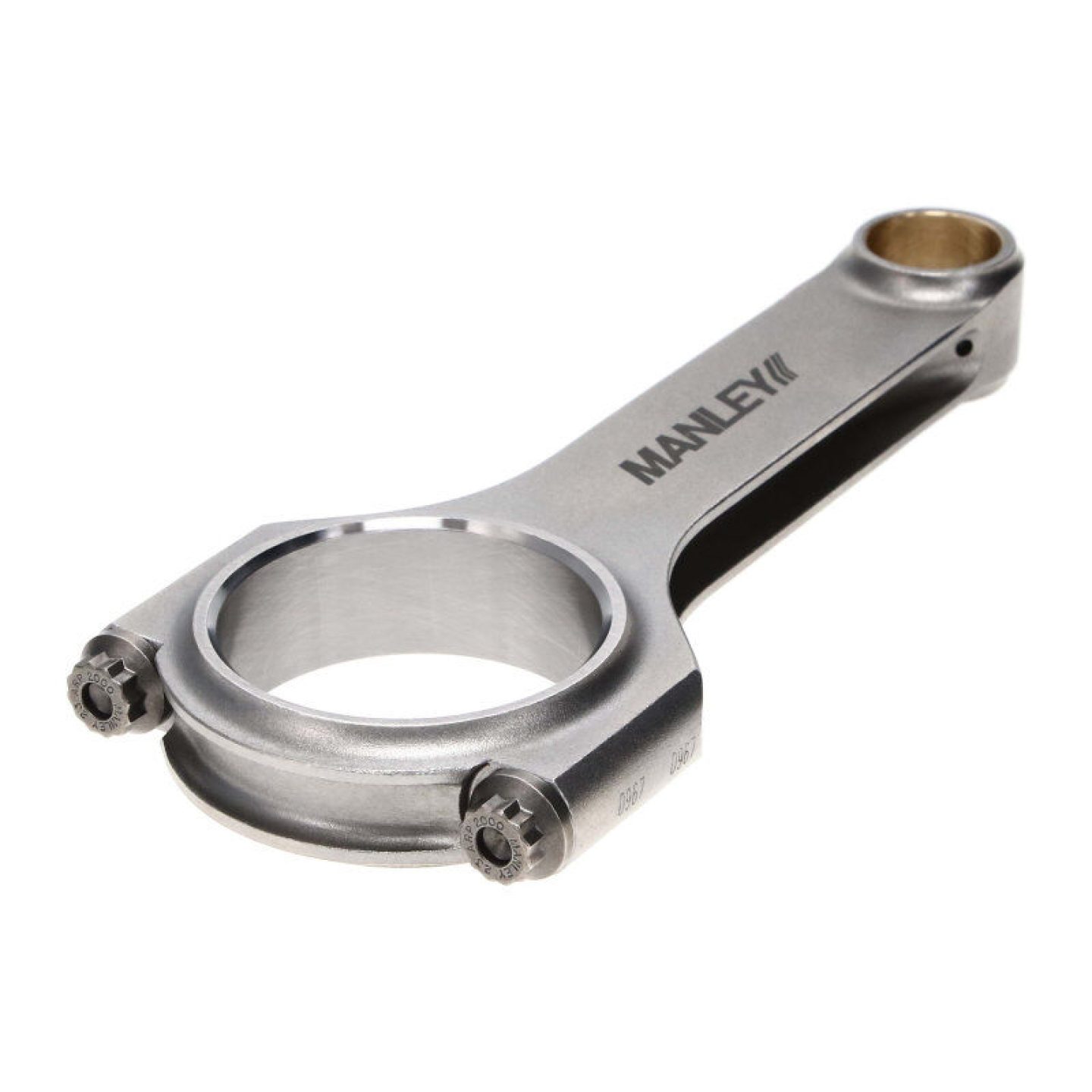

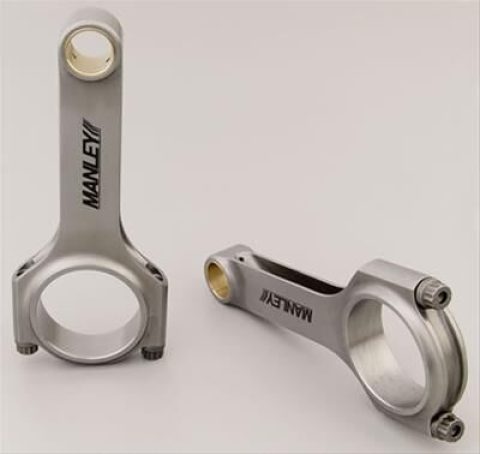

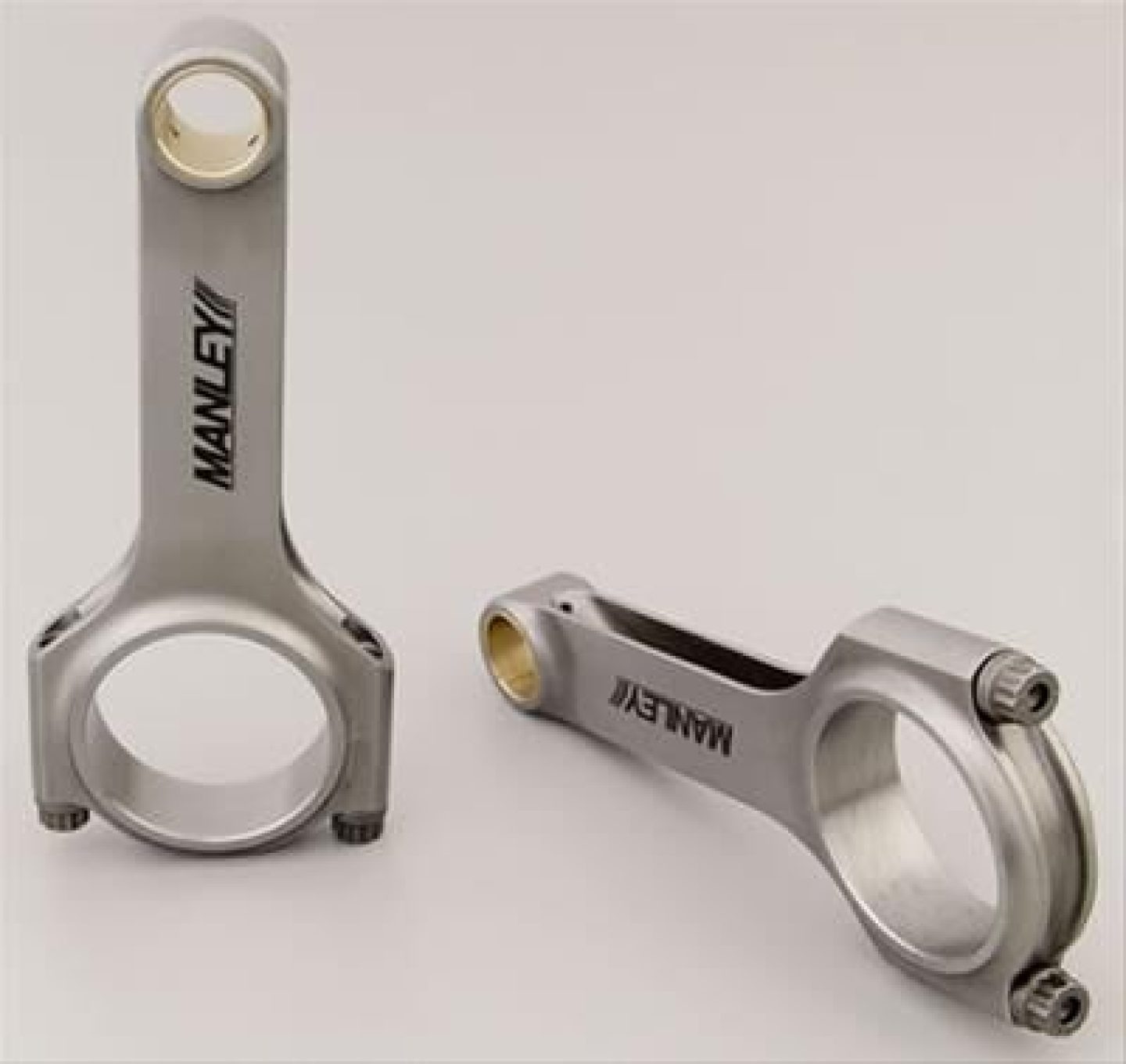

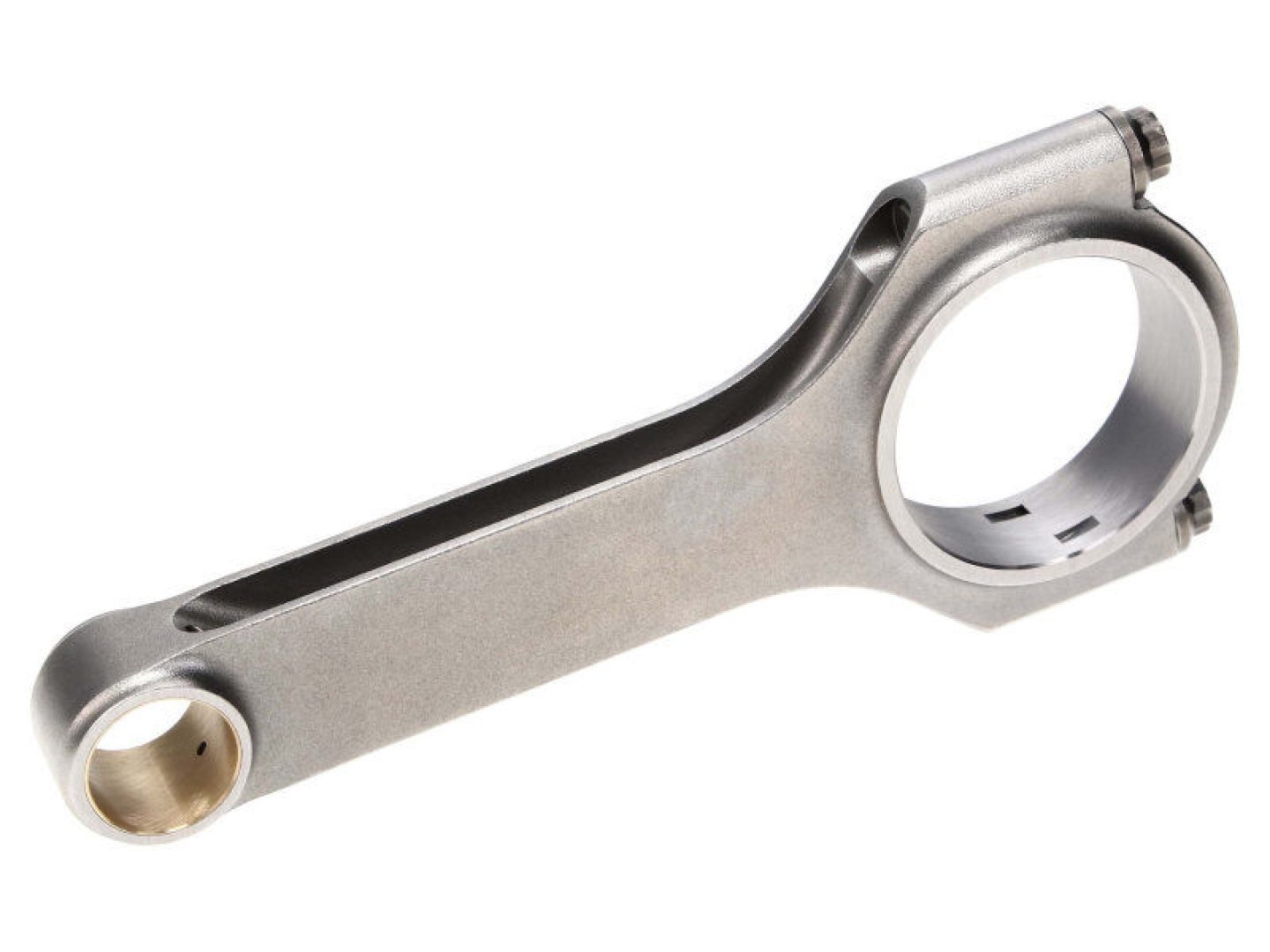

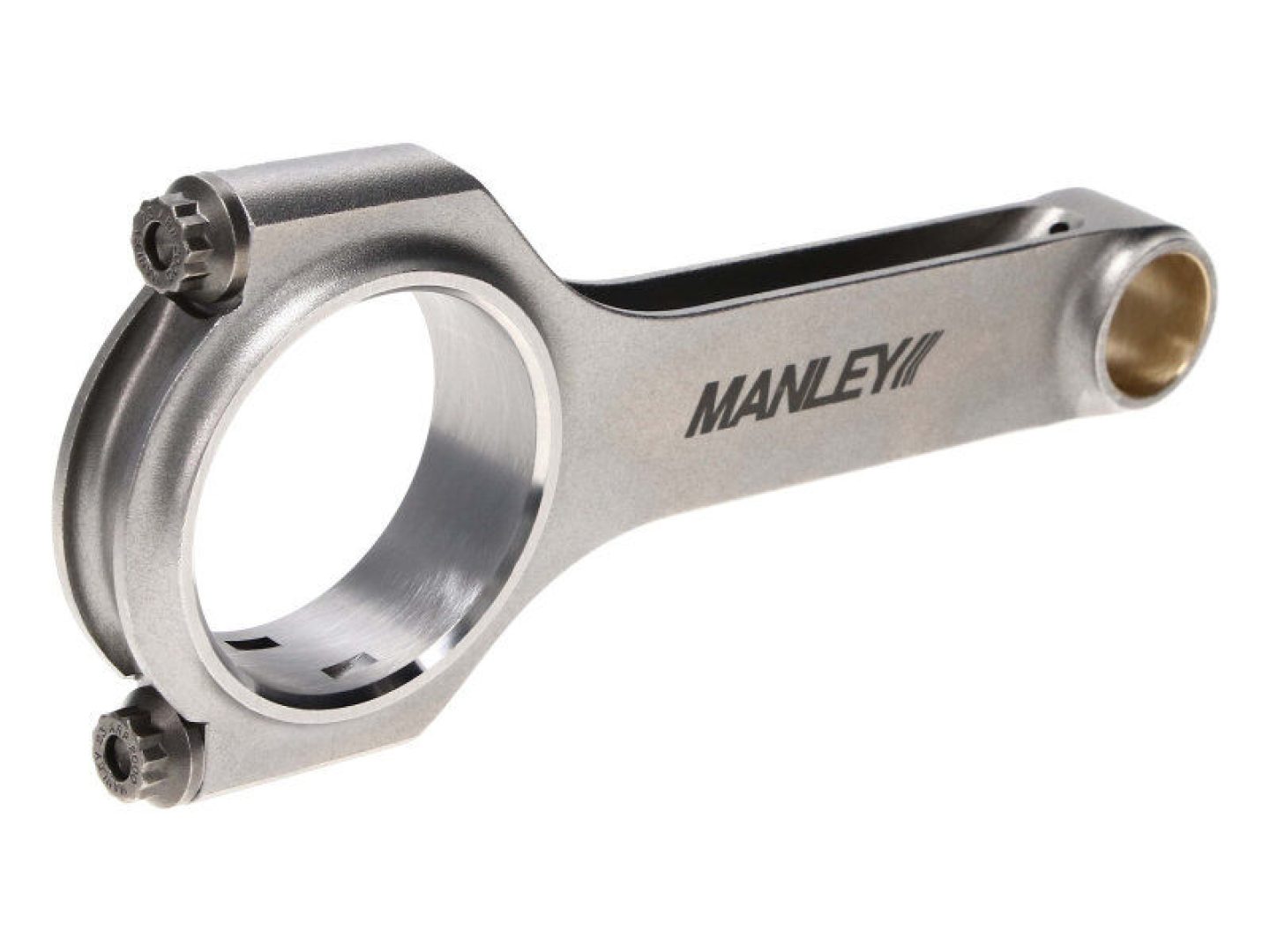

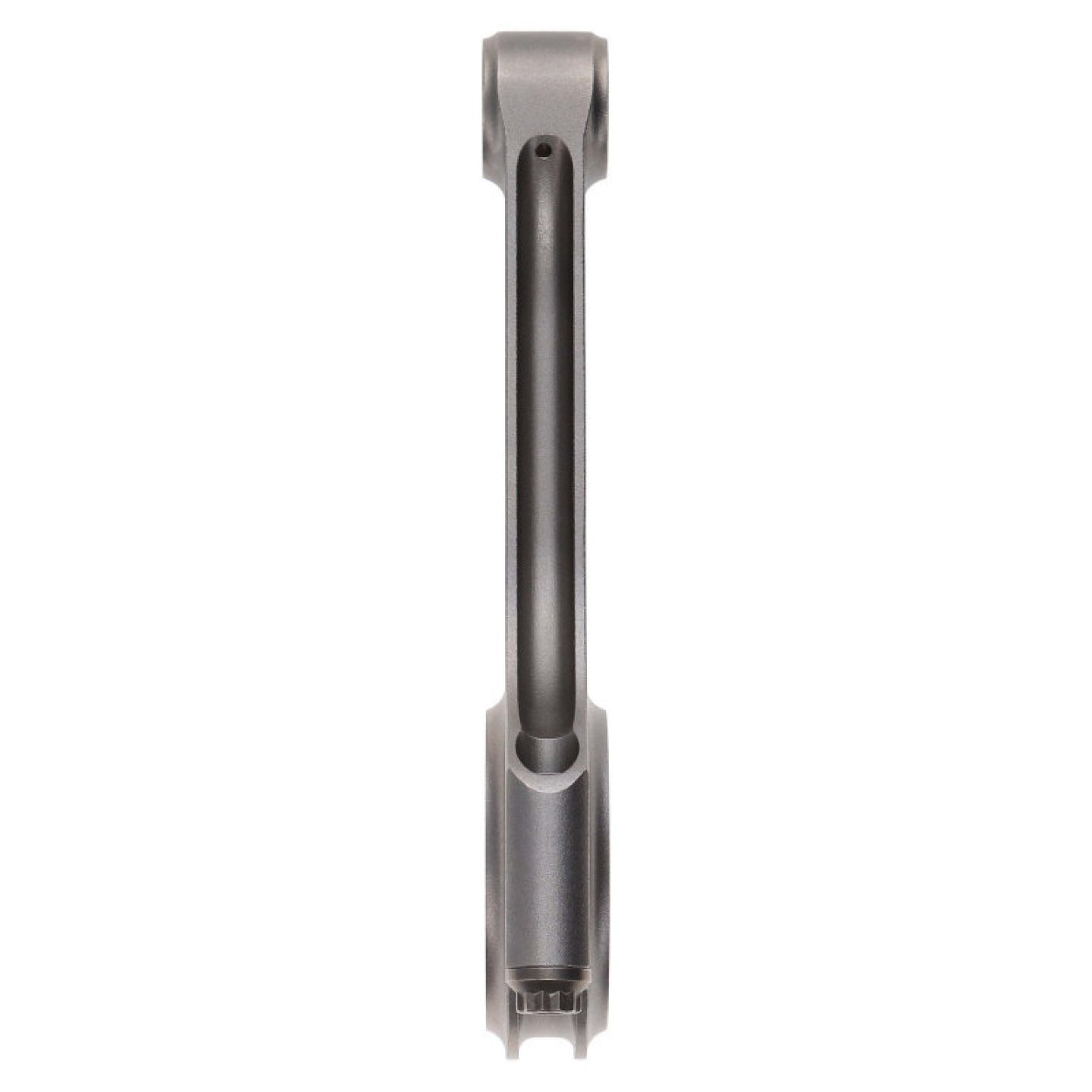

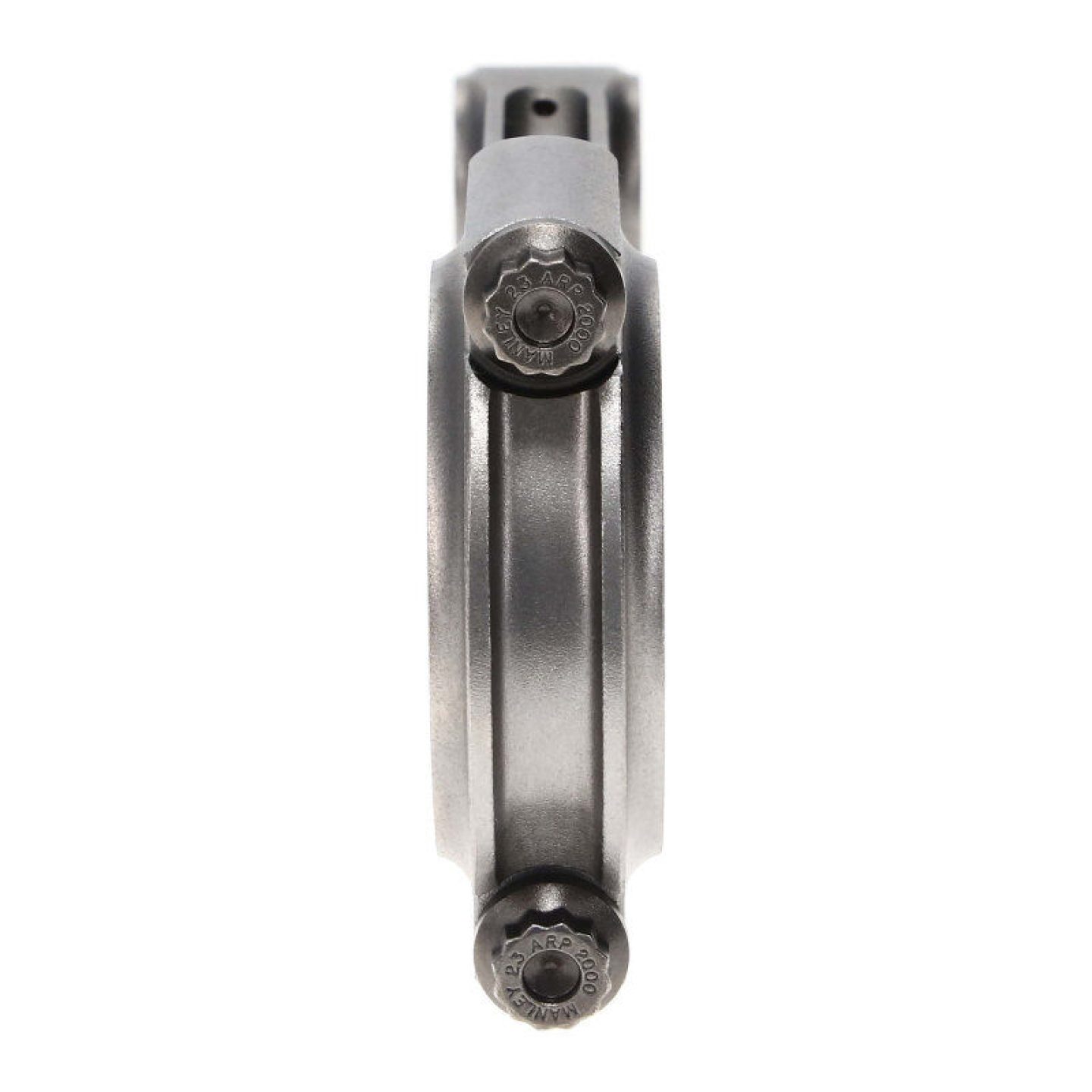

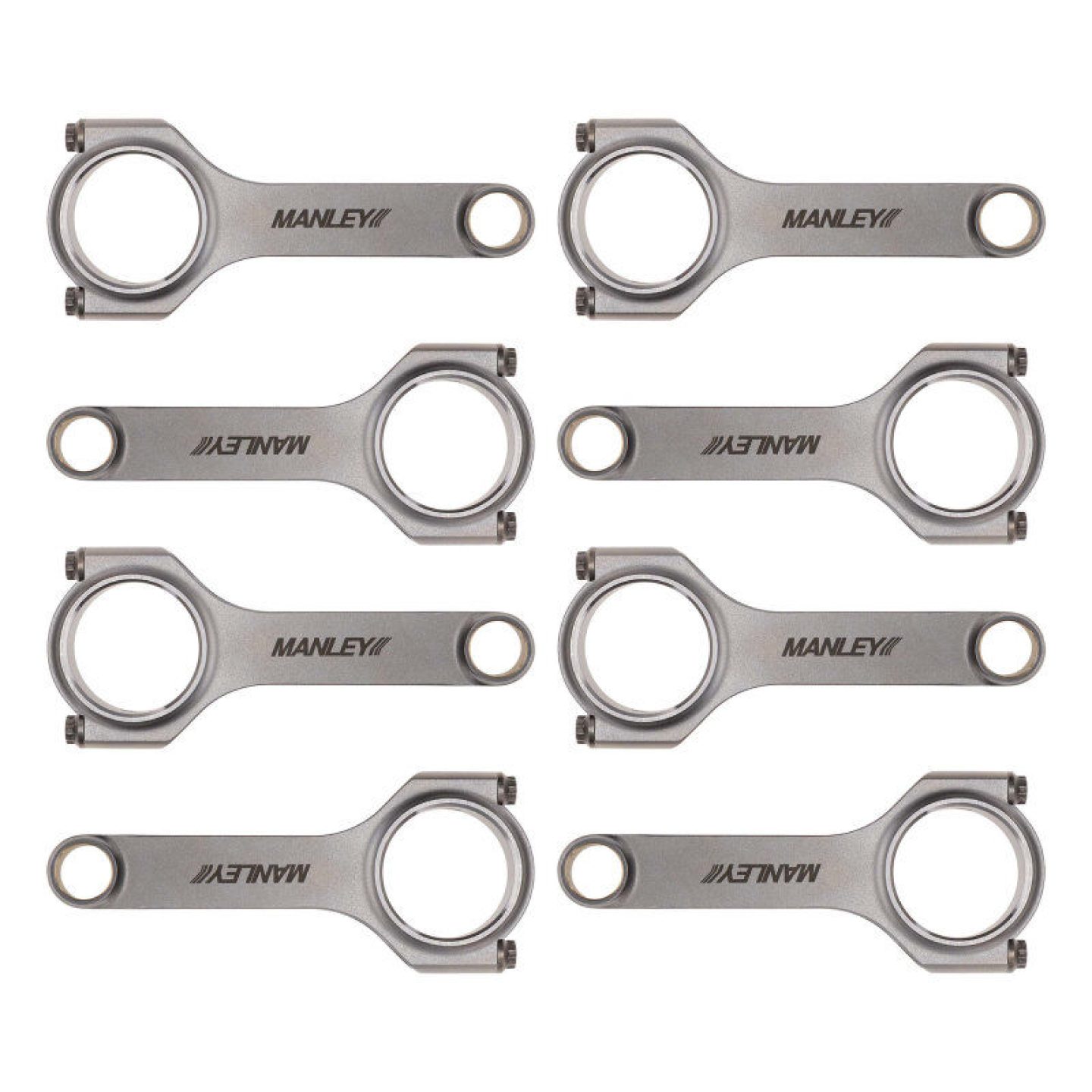

Manley Connecting Rod, ROD-14051 W/ARP 2000.
Engine Connecting Rod
Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams. Available individually or in a set, order the model recommended for your vehicle year/make and engine application.
UPC | 807298002392 |
Brand | Manley |
Notes | 0.025 in. longer than stock. No offset on the journal. Custom pistons required when using connecting rods longer than stock length. These connecting rods are rated at 775 hp for CircleTrack, and 900 hp for drag race applications. |
Quantity | Sold individually. |
Part Type | Connecting Rods |
Magnafluxed | Yes |
Product Line | Manley Steel H-Beam Connecting Rods |
Remanufactured | No |
Wrist Pin Style | Floating |
Weight Matched Set | No |
Big End Width (in.) | 0.941 |
Cap Retention Style | Cap screw |
Pin End Width (in.) | 1.060 in. |
Connecting Rod Color | Shot-peened |
Pin End Bore Diameter | 0.928 in. |
Clearanced for Stroker | No |
Connecting Rod Material | Forged 4340 steel |
Connecting Rod Beam Style | H-beam |
Connecting Rod Bolt Brand | ARP |
Summit Racing Part Number | MAN-14051R-1 |
Manufacturer's Part Number | 14051R-1 |
Big End Bore Diameter (in.) | 2.2250 |
Advertised Horsepower Rating | 775 hp |
Connecting Rod Bolt Diameter | 7/16 in. |
Connecting Rod Bolt Material | ARP2000 alloy |
Connecting Rod Bolt Head Style | 12-point |
Fastener Tensile Strength (psi) | 200,000 psi |
Approximate Connecting Rod Weight (g) | 656 |
Connecting Rod Length Center to Center (in.) | 6.125 in. |
Compatibility & Application Information | |
---|---|
Make | CHEVROLET |
Beginning Year | 1997 |
Ending Year | 2004 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.7L/350 |
Make | CHEVROLET |
Beginning Year | 1999 |
Ending Year | 2004 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.0L/364 |
Make | CHEVROLET |
Beginning Year | 1999 |
Ending Year | 2005 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Make | CHEVROLET |
Beginning Year | 2003 |
Ending Year | 2004 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Make | CHEVROLET |
Beginning Year | 2006 |
Ending Year | 2013 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 7.0L/427 |
Make | CHEVROLET |
Beginning Year | 2008 |
Ending Year | 2008 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.2L/376 |
Make | CHEVROLET |
Beginning Year | 2008 |
Ending Year | 2015 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.2L/376 |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
