When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster? and Pro Series rods.

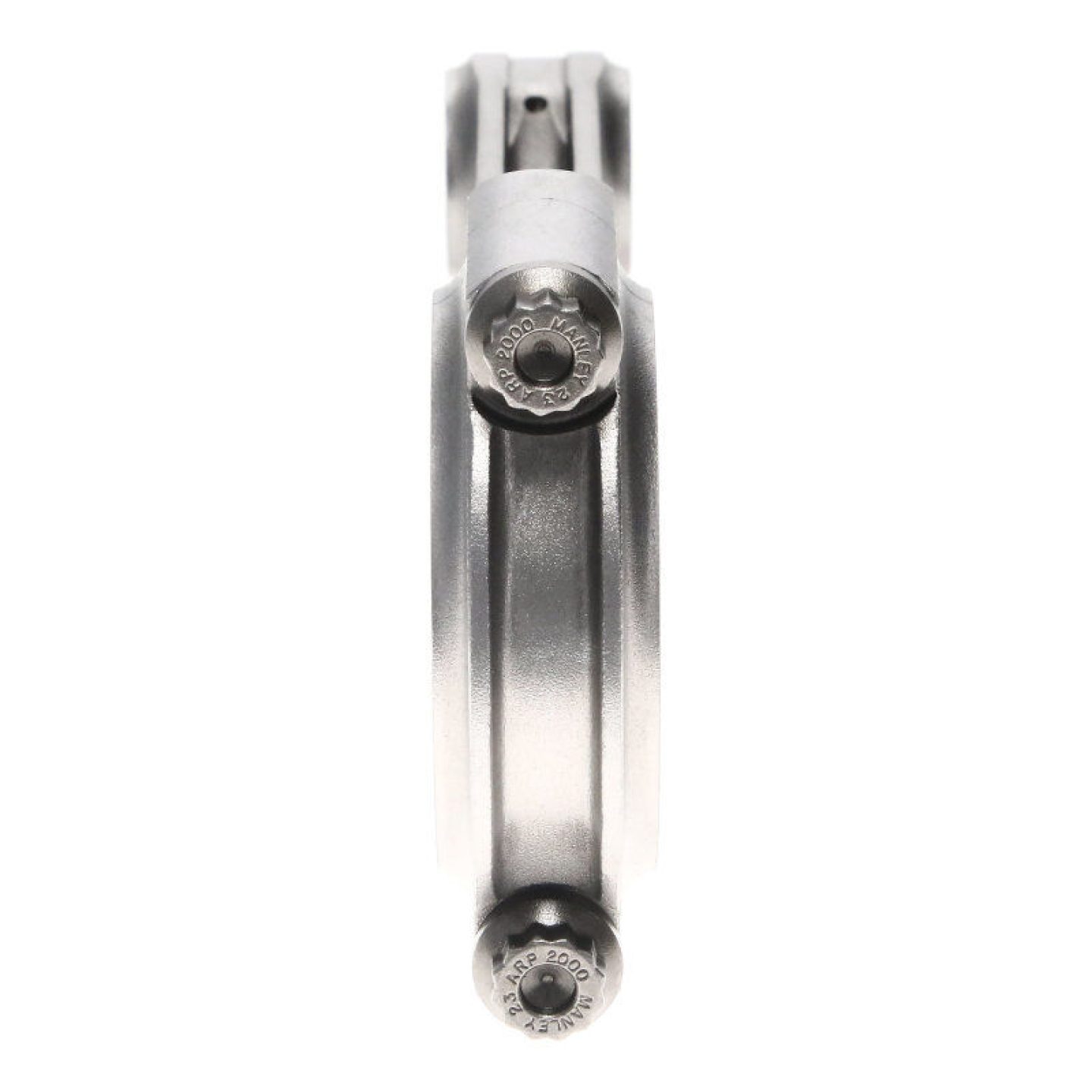

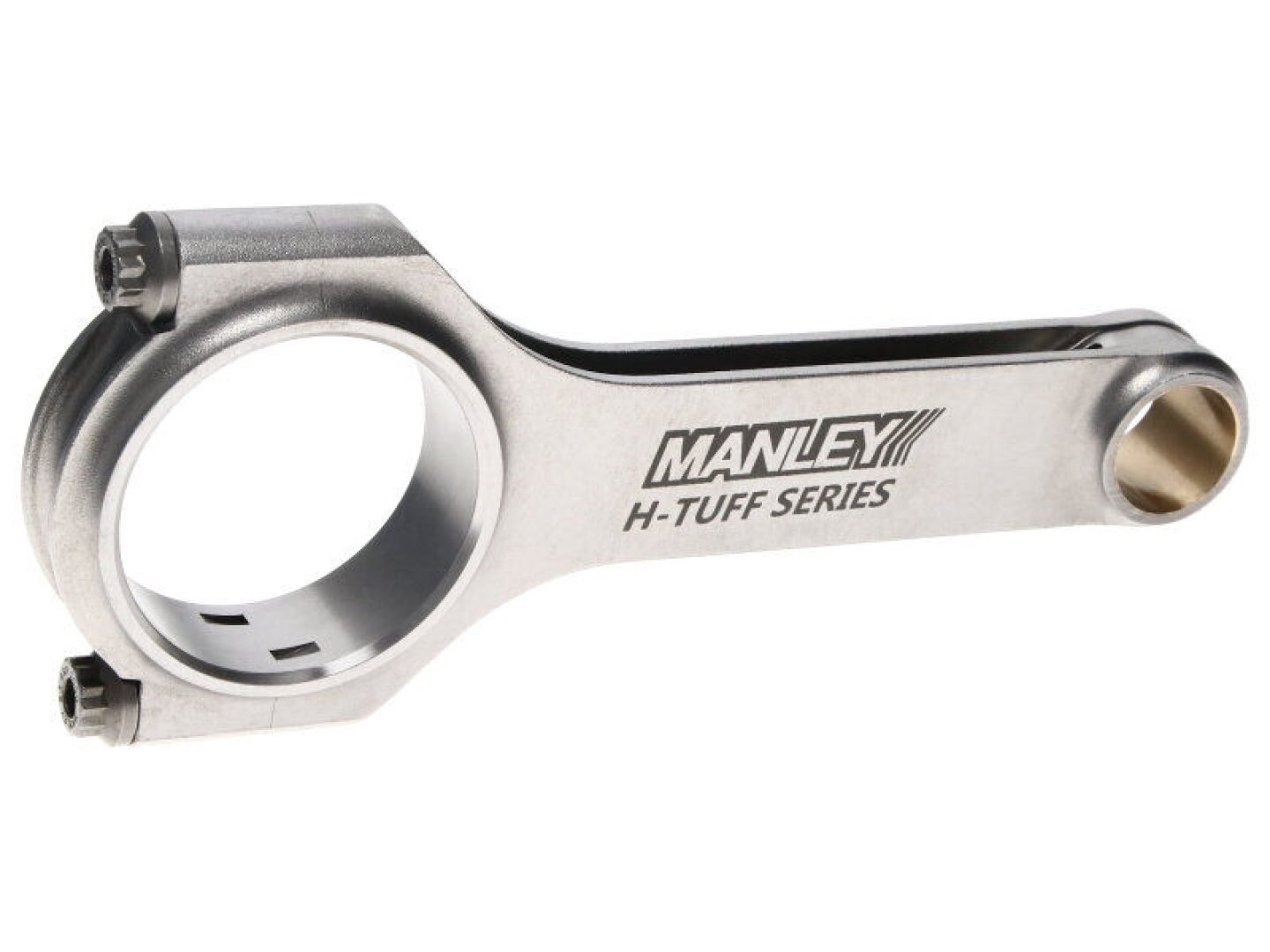

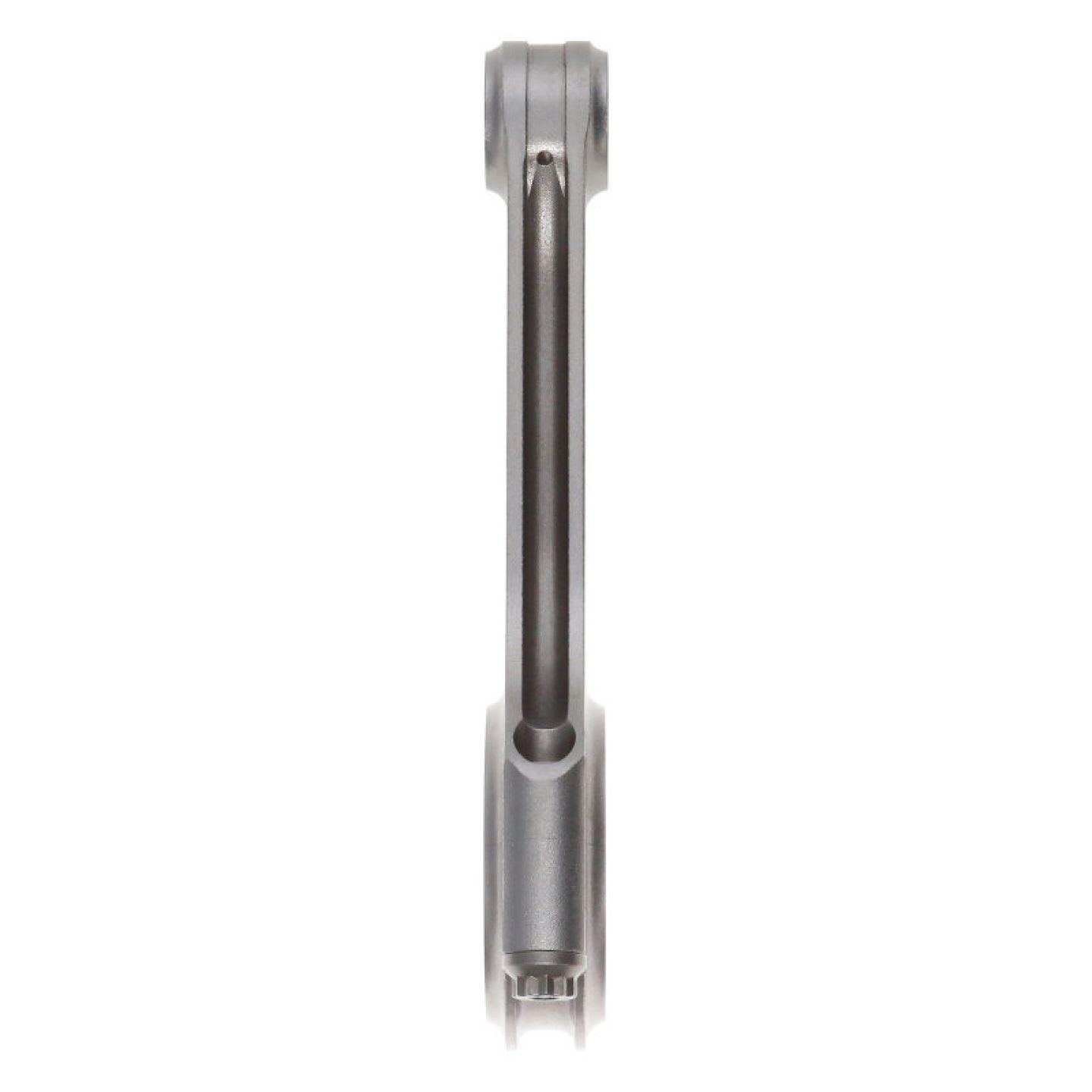

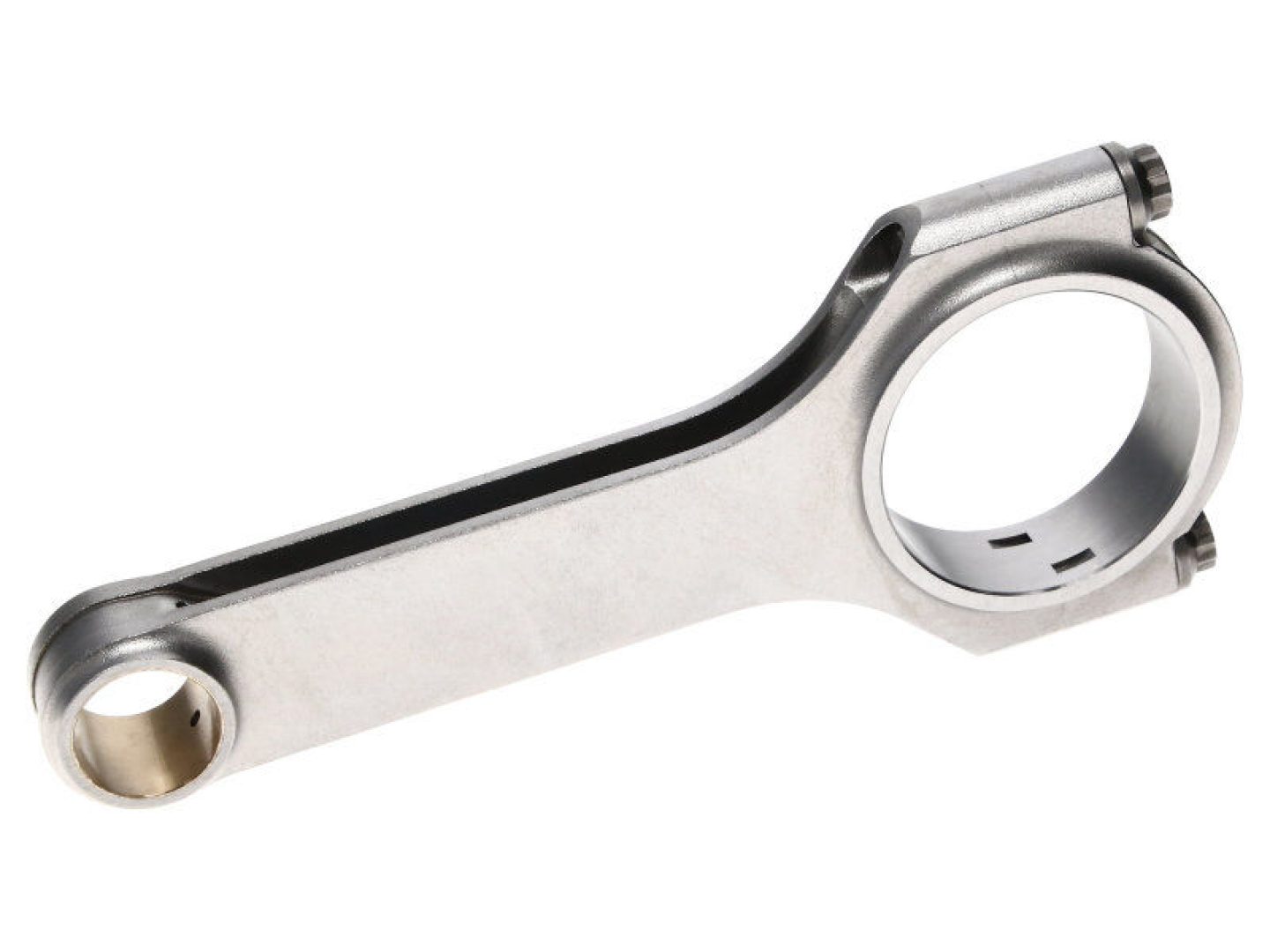

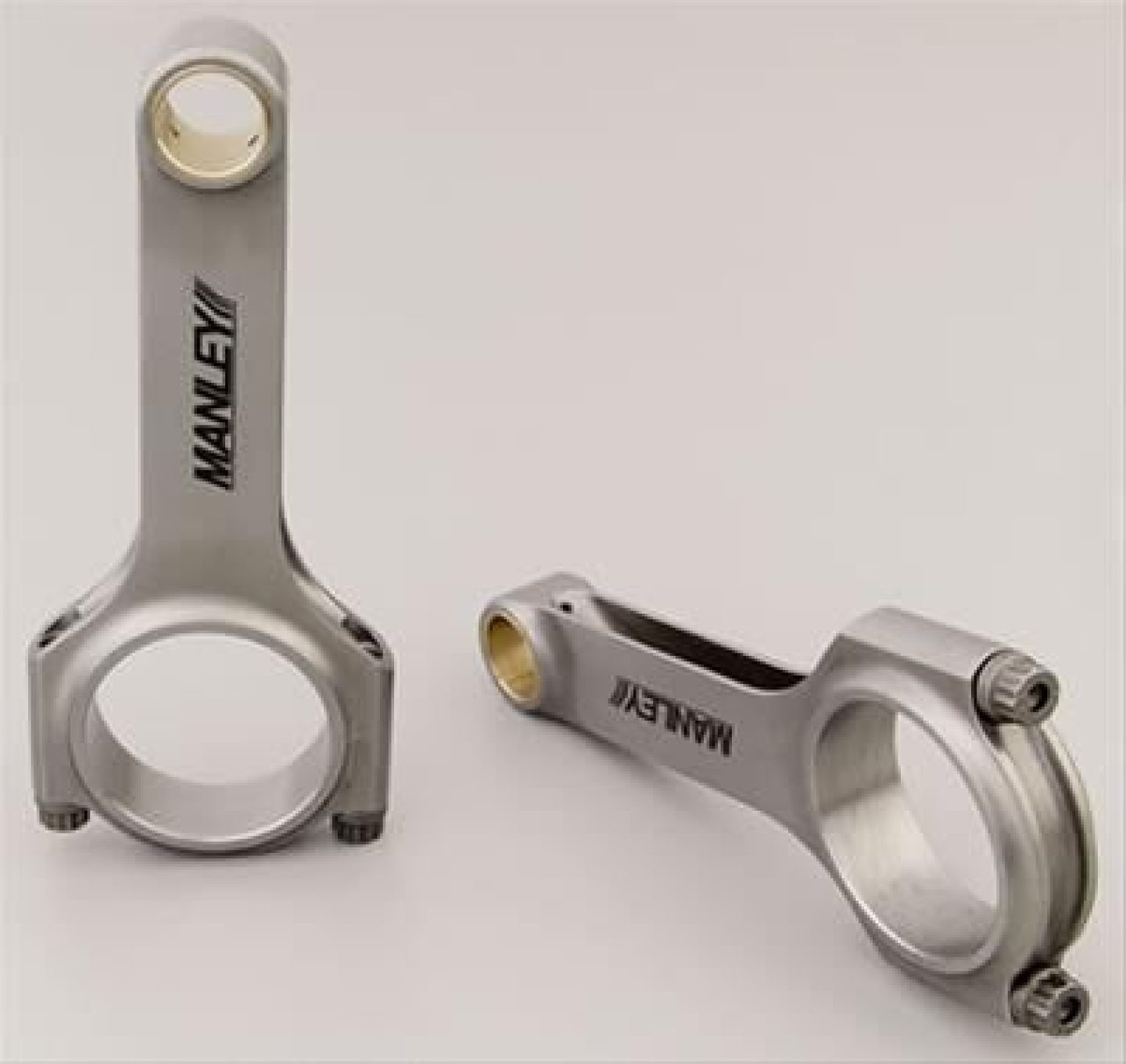

Manley Connecting Rod, ROD-14088 W/ARP 2000.
Engine Connecting Rod Set
Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams. Available individually or in a set, order the model recommended for your vehicle year/make and engine application.
UPC | 807298092904 |
Brand | Manley |
Notes | For use with GM wrist pin. |
Quantity | Sold as a set of 8. |
Part Type | Connecting Rods |
Magnafluxed | Yes |
Product Line | Manley Steel H-Beam Connecting Rods |
Remanufactured | No |
Wrist Pin Style | Floating |
Weight Matched Set | Yes |
Big End Width (in.) | 0.933 |
Cap Retention Style | Cap screw |
Pin End Width (in.) | 1.000 in. |
Connecting Rod Color | Shot-peened and tumbled |
Pin End Bore Diameter | 0.928 in. |
Clearanced for Stroker | Yes |
Connecting Rod Material | Forged 4340 steel |
Connecting Rod Beam Style | H-beam |
Connecting Rod Bolt Brand | ARP |
Summit Racing Part Number | MAN-14088R-8 |
Manufacturer's Part Number | 14088R-8 |
Rod Journal Diameter (in.) | 2.100 |
Big End Bore Diameter (in.) | 2.2520 |
Advertised Horsepower Rating | 775 hp |
Connecting Rod Bolt Diameter | 7/16 in. |
Connecting Rod Bolt Material | ARP2000 alloy |
Connecting Rod Bolt Head Style | 12-point |
Fastener Tensile Strength (psi) | 220,000 psi |
Approximate Connecting Rod Weight (g) | 665 |
Connecting Rod Length Center to Center (in.) | 6.200 in. |
Compatibility & Application Information | |
---|---|
Make | DODGE |
Beginning Year | 2011 |
Ending Year | 2021 |
Engine Type | V8 |
Engine Family | Mopar Hemi Gen III |
Engine Size | 6.4L/392 |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
