CNC machined Aluminum; Laser etched and anodized; Stainless steel hardware
FUEL RAIL, TOYOTA 2JZ-GTE, TOP FEED CONVERSION
Fuel Injector Rail
Building and designing high-performance, aftermarket fuel systems and all the parts and accessories that go with them is an art that Radium Engineering has perfected since 2010.
With a sharp understanding of how fuel flow helps to create more horsepower, Radium fuel system parts and accessories deliver fuel to the injectors with ample pressure and volume. Radium's research and development department ensures your fuel system is up to the demanding task and that your engine is protected. With our help at StreetFX, we can supply all your Radium Engineering performance parts and accessories all around the world. Radium Engineering’s primary focus is in developing fuel surge tanks and PCV oil catch can systems.
In helping to prevent oil buildup in the throttle body, intercooler, and intake, Radium Engineering’s Universal Catch Cans help to raise octane and increase engine performance while also lowering hydrocarbon emissions. They are made from 6061 Billet Aluminum for assured durability.
Radium Engineering’s Universal Fuel Surge Tanks are especially useful on vehicles with insufficient fuel tank baffling; they feed the fuel rails, helping to prevent fuel starvation to the engine. Each fuel surge tank incorporates a single internal fuel pump and a fuel pressure regulator. Also, these Fuel Surge Tanks are made from CNC anodized aluminum, with interfaces sealed with O-rings.
Radium Engineering’s High Flow Fuel Filters are made from 6061 aluminum and Type-II anodized aluminum, and can be used with E85, alcohol, and other race fuels. They effectively filter out dirt, debris, and contaminants without inhibiting fuel flow; they allow high fuel pressures of over 150psi. These high-flow fuel filters have a 3 piece body with different filtration element options, i.e. cellulose paper, micro-fiberglass, fine stainless steel, and coarse stainless steel.
Other Radium Engineering products that you can get here at StreetFX include fuel pressure gauges, fuel pulse damper kits, fuel rail upgrade kits, fuel pressure regulators, venture jet pump kits, fuel system fittings and hose ends, and many more. StreetFX is a licensed vendor of Radium Engineering products, so you can count on us to supply you with all the Radium Engineering products you want. If you are not sure about which Radium Engineering products that you want, don't hesitate to drop us a line.

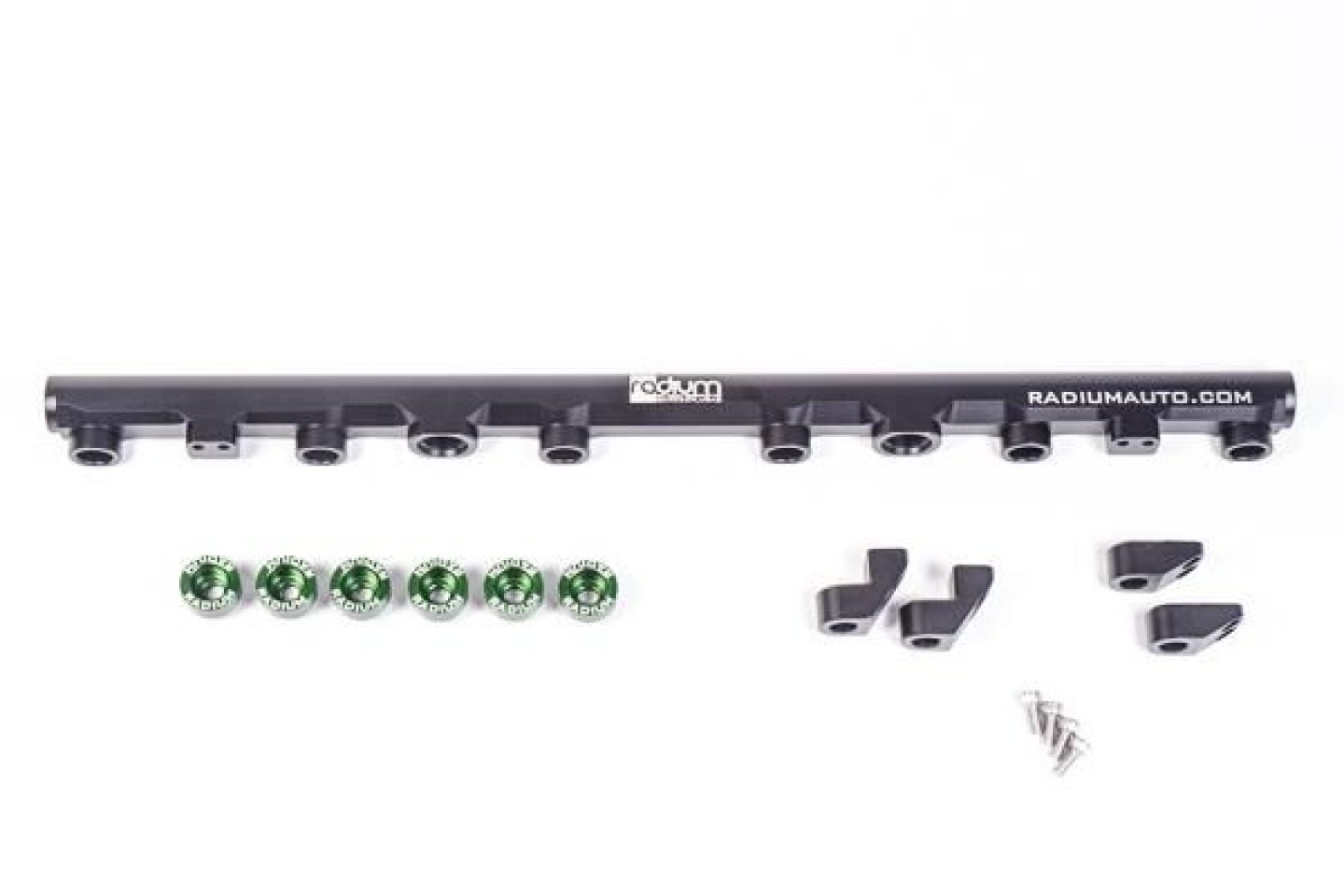

Radium Engineering offers top feed fuel rail conversion kits for specific applications. Manufactured with a large 0.69 in. internal bore, the fuel rails can support all necessary engine power requirements. They are CNC-machined from a custom 6063 aluminum, media blasted, black anodized, and laser-etched for a high-quality surface finish. These kits are compatible with all fuel types, including popular alcohol mixtures such as E85.
The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high-flow fuel injectors (not included). Each kit includes two different sets of mounting feet, allowing various height fuel injectors to be used. The anodized aluminum mounting feet secure the fuel rail to the intake manifold reusing the OEM thermal insulating spacers. The fuel injector bores and the included press-fit injector seats are designed for 14mm injector O-rings. These seats include O-rings to prevent boost pressure leaks. They're CNC-machined billet aluminum, anodized, and laser etched.
Brand | Radium Engineering |
Notes | Fits VVTi and non-VVTi engines. |
Quantity | Sold as a kit. |
Part Type | Fuel Rails |
Product Line | Radium Engineering Top Feed Fuel Rail Conversion Kits |
Fuel Rail Color | Black |
Fittings Included | No |
Hardware Included | Yes |
Fuel Rail Material | Aluminum |
Fuel Rail Inlet Size | -8 AN O-ring |
Summit Racing Part Number | RDM-20-0215 |
Manufacturer's Part Number | 20-0215 |
Compatibility & Application Information | |
---|---|
Fuel Rail Style (application) | Radium Engineering |
Make | TOYOTA |
Model | SUPRA |
Submodel | TWIN TURBO |
Beginning Year | 1993 |
Ending Year | 1998 |
Engine Type | L6 |
Engine Size | 3.0L/2997cc |
Engine Family | Toyota inline 6-cylinder |
Application Notes | Fits VVTi and non-VVTi engines. |
Make | TOYOTA |
Model | SUPRA |
Submodel | BASE |
Beginning Year | 1993 |
Ending Year | 1995 |
Engine Type | L6 |
Liter | 3.0 |
CC | 2997 |
Engine Size | 3.0L/2997cc |
Engine Family | Toyota inline 6-cylinder |
Engine VIN Code | J |
Make | TOYOTA |
Model | SUPRA |
Submodel | BASE |
Beginning Year | 1996 |
Ending Year | 1998 |
Engine Type | L6 |
Liter | 3.0 |
CC | 2997 |
Engine Size | 3.0L/2997cc |
Engine Family | Toyota inline 6-cylinder |
Engine VIN Code | D |
Make | TOYOTA |
Model | SUPRA |
Submodel | TWIN TURBO |
Beginning Year | 1993 |
Ending Year | 1995 |
Engine Type | L6 |
Liter | 3.0 |
CC | 2997 |
Engine Size | 3.0L/2997cc |
Engine Family | Toyota inline 6-cylinder |
Engine VIN Code | J |
Make | TOYOTA |
Model | SUPRA |
Submodel | TWIN TURBO |
Beginning Year | 1996 |
Ending Year | 1998 |
Engine Type | L6 |
Liter | 3.0 |
Radium Engineering 92-02 Toyote Supra 2JZ-GTE Top Feed Fuel Rail Kit | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Year | Make | Model | Submodel | Region | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1993 | Toyota | Supra | Twin Turbo |
CNC machined Aluminum; Laser etched and anodized; Stainless steel hardware Extended DescriptionFUEL RAIL, TOYOTA 2JZ-GTE, TOP FEED CONVERSION Part TypeFuel Injector Rail Radium Engineering Profile:Building and designing high-performance, aftermarket fuel systems and all the parts and accessories that go with them is an art that Radium Engineering has perfected since 2010. With a sharp understanding of how fuel flow helps to create more horsepower, Radium fuel system parts and accessories deliver fuel to the injectors with ample pressure and volume. Radium's research and development department ensures your fuel system is up to the demanding task and that your engine is protected. With our help at StreetFX, we can supply all your Radium Engineering performance parts and accessories all around the world. Radium Engineering’s primary focus is in developing fuel surge tanks and PCV oil catch can systems.
Here are some of the Radium Engineering products that you can get here at StreetFX:
In helping to prevent oil buildup in the throttle body, intercooler, and intake, Radium Engineering’s Universal Catch Cans help to raise octane and increase engine performance while also lowering hydrocarbon emissions. They are made from 6061 Billet Aluminum for assured durability.
Radium Engineering’s Universal Fuel Surge Tanks are especially useful on vehicles with insufficient fuel tank baffling; they feed the fuel rails, helping to prevent fuel starvation to the engine. Each fuel surge tank incorporates a single internal fuel pump and a fuel pressure regulator. Also, these Fuel Surge Tanks are made from CNC anodized aluminum, with interfaces sealed with O-rings.
Radium Engineering’s High Flow Fuel Filters are made from 6061 aluminum and Type-II anodized aluminum, and can be used with E85, alcohol, and other race fuels. They effectively filter out dirt, debris, and contaminants without inhibiting fuel flow; they allow high fuel pressures of over 150psi. These high-flow fuel filters have a 3 piece body with different filtration element options, i.e. cellulose paper, micro-fiberglass, fine stainless steel, and coarse stainless steel.
Other Radium Engineering products that you can get here at StreetFX include fuel pressure gauges, fuel pulse damper kits, fuel rail upgrade kits, fuel pressure regulators, venture jet pump kits, fuel system fittings and hose ends, and many more. StreetFX is a licensed vendor of Radium Engineering products, so you can count on us to supply you with all the Radium Engineering products you want. If you are not sure about which Radium Engineering products that you want, don't hesitate to drop us a line. Radium Engineering Top Feed Fuel Rail Conversion Kits 20-0215 Radium Engineering offers top feed fuel rail conversion kits for specific applications. Manufactured with a large 0.69 in. internal bore, the fuel rails can support all necessary engine power requirements. They are CNC-machined from a custom 6063 aluminum, media blasted, black anodized, and laser-etched for a high-quality surface finish. These kits are compatible with all fuel types, including popular alcohol mixtures such as E85. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high-flow fuel injectors (not included). Each kit includes two different sets of mounting feet, allowing various height fuel injectors to be used. The anodized aluminum mounting feet secure the fuel rail to the intake manifold reusing the OEM thermal insulating spacers. The fuel injector bores and the included press-fit injector seats are designed for 14mm injector O-rings. These seats include O-rings to prevent boost pressure leaks. They're CNC-machined billet aluminum, anodized, and laser etched. Part Attributes
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50.
|
